02201015 - Hubbell Wiring Device-Kellems - 0.75-0.99" Single Eye Single Weave Closed Mesh Tin-Coated Bronze Support Grips

HubbellSKU: HUB02201015

Price:
Sale price$47.99
Stock:
Sold out

Description

02201015 - Hubbell Wiring Device-Kellems - 0.75-0.99" Single Eye Single Weave Closed Mesh Tin-Coated Bronze Support Grips

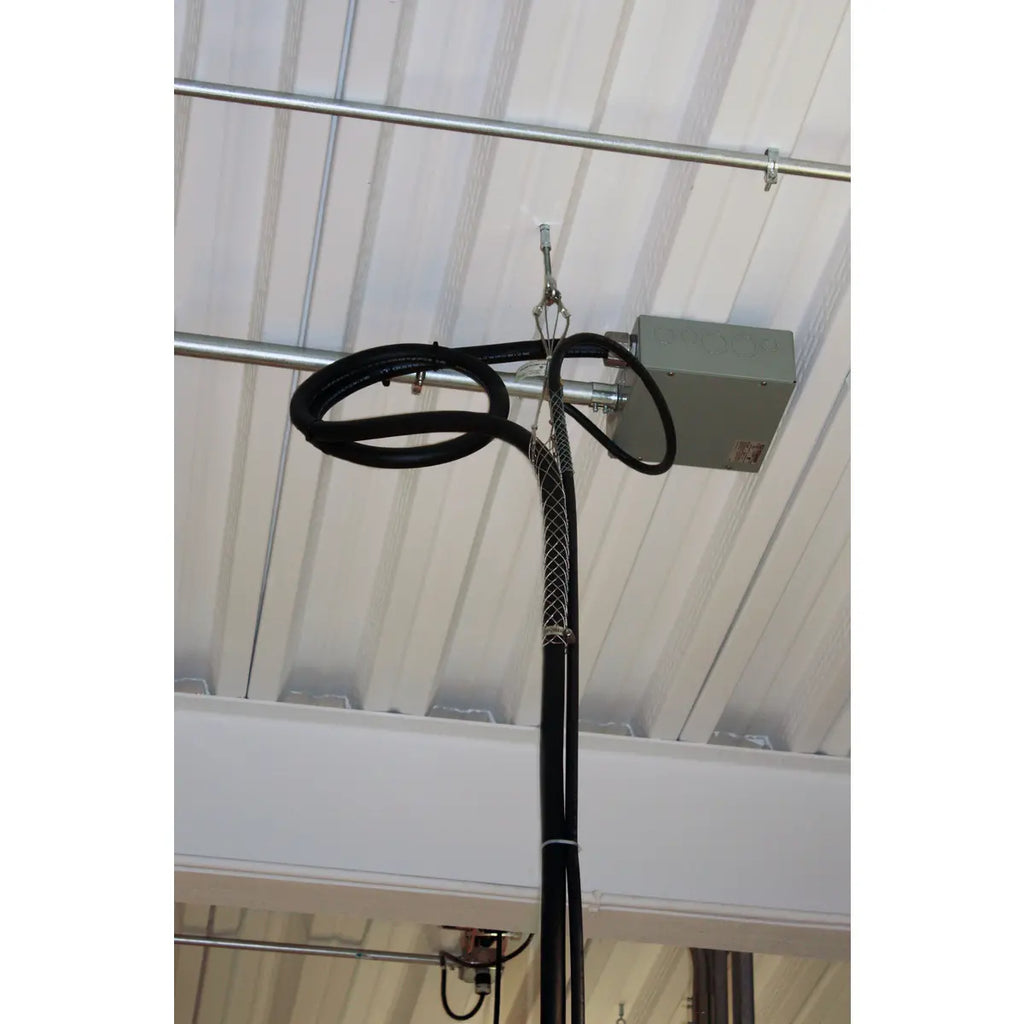

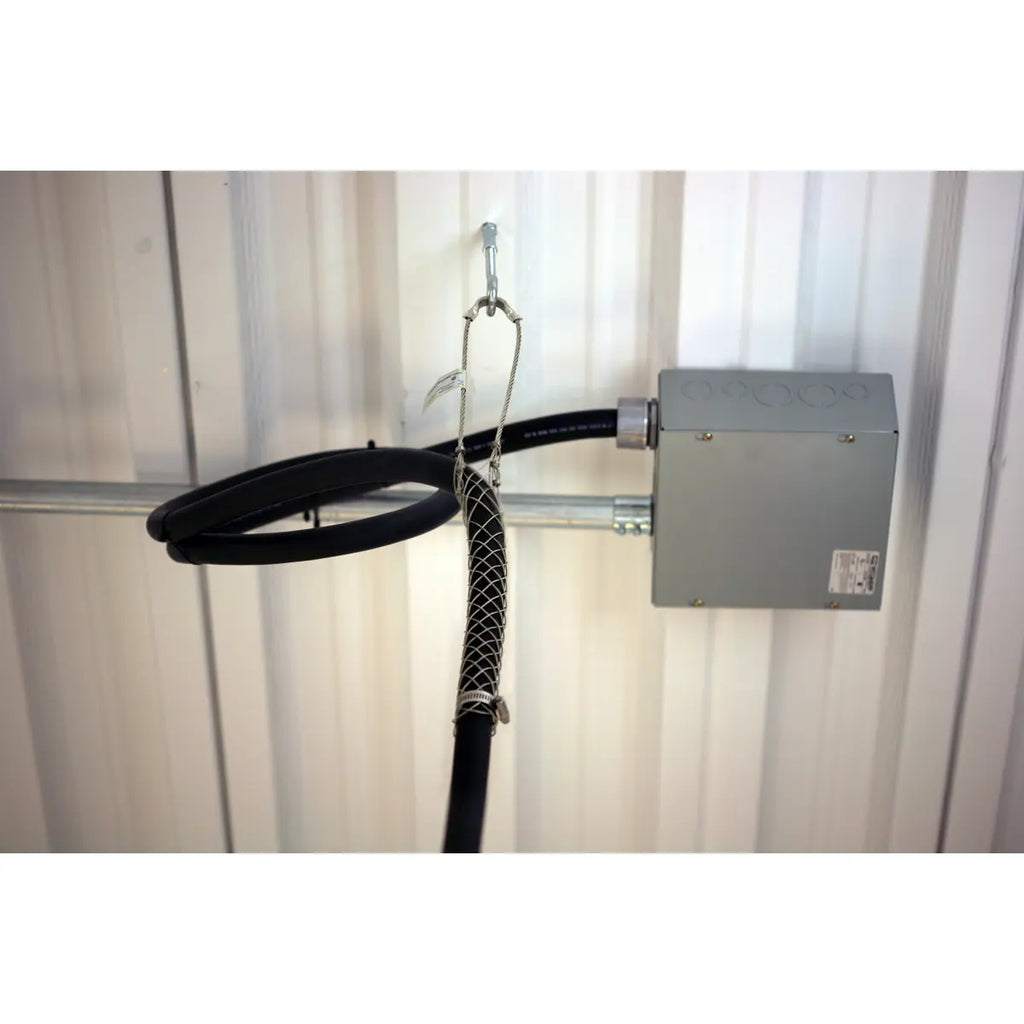

Electrical cables dropping down from the ceiling are prevalent in factories. Whether they are constantly hanging vertically, on an angle, and/or are subject to being pulled across the room, the dead weight and pull stresses on the internal structures from the cable itself, as well as the weight of devices, keep them under threat of pullout from the connections, resulting in power failures and unscheduled downtime. Kellems offers support grips to meet every need in the factory, in a wide variety of eye styles and materials including bronze, 302–304 series stainless steel and even non-metallic Aramid fiber, delivering outstanding strength as well as exceptional resistance to rust and corrosion. They provide unmatched protection, with Kellems unique strand equalizer system ensuring equal loading of the weight across a long distance so that there are no areas of strain, as opposed to other solutions which leave smaller areas vulnerable to higher stresses and breakage. Kellems support grips are the most frequently trusted method for reducing the threat of costly maintenance and repair and maximizing productive time in factories of all kinds-and have been for decades.

Closed Mesh

GENERAL SPECIFICATIONS

Application Single Eye
Approx Breaking Strength 1,020 lbs
Catalog Number 02201015
Construction Woven
EU RoHS Indicator Yes
Material Bronze, Tin Coated
Material - Mounting Hardware Screw Hook or Beam Clamp
OEM Brand Name Hubbell Wiring Device-Kellems
Performance
  • Mechanical - Approximate Breaking Strength - 1,020 (4,537) Lbs. (N)
  • Mechanical - Working Load - 102 (453.7) Lbs. (N)
Series Standard Duty
Specifications
  • Eye - Stainless Steel
  • Lug - Stainless Steel
  • Strand - Stainless Steel
  • Tag - Mylar
Style Closed Mesh, Single Weave
Type Single Eye
UPC 783585301006


Conductor Related

Cable Diameter Range 0.75 in - 0.99 in
Cable Size 75"-.99" (1.90-2.51)


Logistics

Carton Quantity 10
Pallet Quantity 2400



PRODUCT DATASHEET

Wiring 02201015 Specification Sheet
