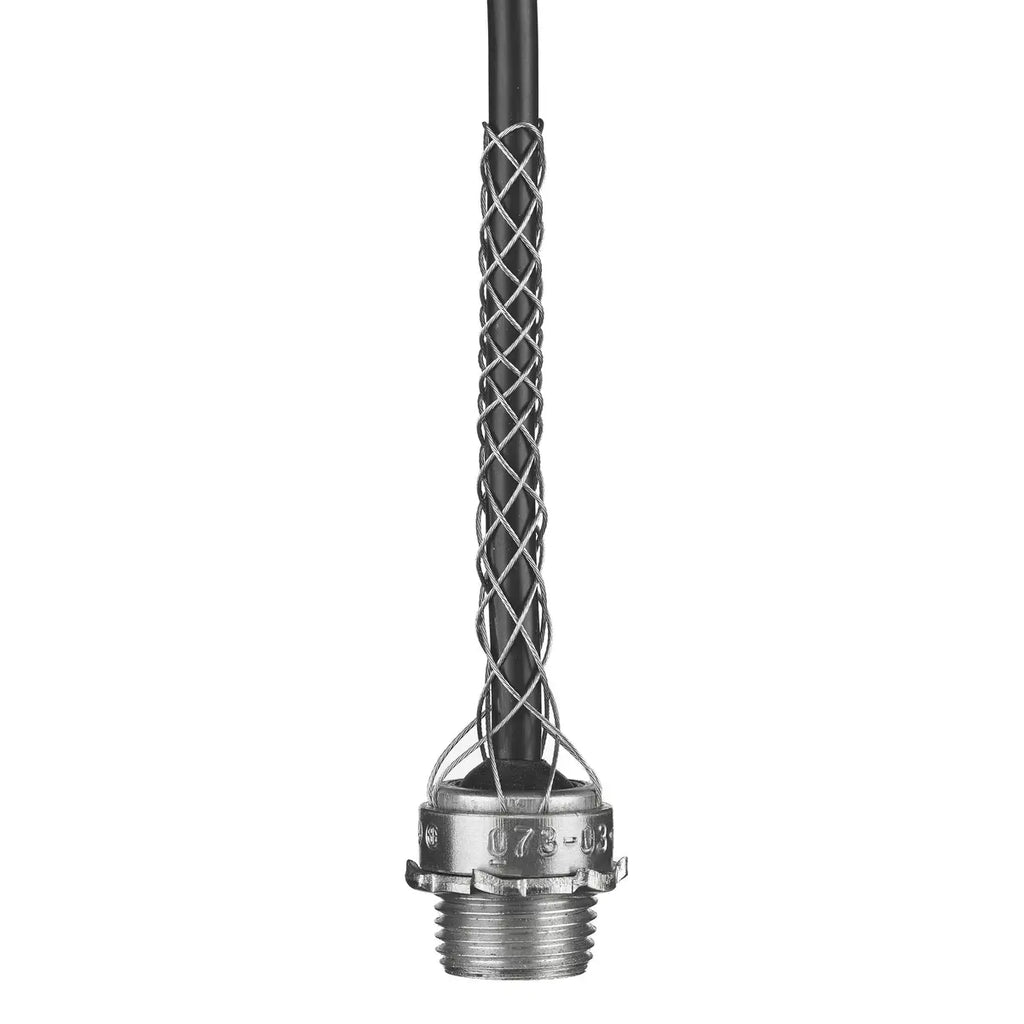

073031203A - Hubbell Wiring Device-Kellems - 3/4" Non-Insulated Strain Relief Dusttight Grips

HubbellSKU: HUB073031203A

Price:
Sale price$34.99
Stock:
Sold out

Description

073031203A - Hubbell Wiring Device-Kellems - 3/4" Non-Insulated  Strain Relief Dusttight Grips

The development of Kellems strain relief grips spearheaded the concept of wire management solutions in 1927 and is still the most frequently chosen brand for use in a wide range of industries. A deluxe cord grip is a type of strain relief grip. Deluxe cord grips provide additional arc of bend control-rest outside the enclosure to reduce tension on cables, joints and terminals, as well as eliminating damage due to flexing, bending, twisting or vibration. This juncture-often called the rigid fatigue point-is where failures tend to first occur, and Kellems strain relief grips protect the components saving the expense of damaged cables and downtime. The design features the original Kellems wire mesh, exert a uniformly distributed compressive force over a large area of cable for optimum safety. Strain relief grips can be used indoors or outdoors and can even be readily adjusted or repositioned, facilitating equipment relocation.

  • Aluminum Fiting
  • Galvanized steel mesh provides high strength

GENERAL SPECIFICATIONS

Application Light Duty
Catalog Number 073031203A
Construction Woven
EU RoHS Indicator Yes
Item Type Dust-Tight Strain Relief Grips
Material Aluminum Fittings, Galvanized Steel Mesh
Material - Mounting Hardware Locknut or Tapped Hole
OEM Brand Name Hubbell Wiring Device-Kellems
Performance
  • Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2 (Fitting)
  • Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C
Series Dust-Tight
Specifications
  • Strand - Galvanized Steel
  • Body - Aluminum
  • Sleeve - Aluminum
  • Locknut - Steel
Style For Insulated Cables
Thread Size 3/4" NPT
Type Non-Insulated, Wide Range
UPC 783585550169



Dimensions

Display Size 3/4" NPT


Conductor Related

Cable Diameter Range 0.54 in - 0.73 in
Cable Size .54" - .73" (1.37 - 1.85 cm)



Logistics

Carton Quantity 20
Pallet Quantity 6000



PRODUCT DATASHEET

Wiring 073031203A Specification Sheet
