073031211 - Hubbell Wiring Device-Kellems - 1.25" Insulated Strain Relief Dusttight Grips

HubbellSKU: HUB073031211

Price:
Sale price$45.99
Stock:
Sold out

Description

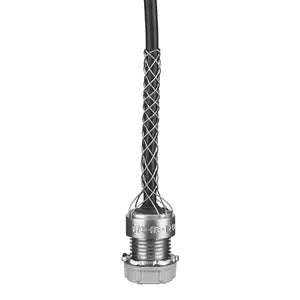

073031211 - Hubbell Wiring Device-Kellems - 1.25" Insulated Strain Relief Dusttight Grips

The development of Kellems strain relief grips spearheaded the concept of wire management solutions in 1927 and is still the most frequently chosen brand for use in a wide range of industries. A deluxe cord grip is a type of strain relief grip. Deluxe cord grips provide additional arc of bend control-rest outside the enclosure to reduce tension on cables, joints and terminals, as well as eliminating damage due to flexing, bending, twisting or vibration. This juncture-often called the rigid fatigue point-is where failures tend to first occur, and Kellems strain relief grips protect the components saving the expense of damaged cables and downtime. The design features the original Kellems wire mesh, exert a uniformly distributed compressive force over a large area of cable for optimum safety. Strain relief grips can be used indoors or outdoors and can even be readily adjusted or repositioned, facilitating equipment relocation.

  • Aluminum Fiting
  • Galvanized steel mesh provides high strength
  • Insulating Bushing

GENERAL SPECIFICATIONS

Application Light Duty
Approx Breaking Strength 1,200 lbs
Catalog Number 073031211
Construction Woven
EU RoHS Indicator Yes
Item Type Dust-Tight Strain Relief Grips
Material Aluminum Fittings, Galvanized Steel Mesh
Material - Mounting Hardware Locknut or Tapped Hole
OEM Brand Name Hubbell Wiring Device-Kellems
Performance
  • Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2 (Fitting)
  • Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C
Series Dust-Tight
Specifications
  • Body - Aluminum
  • Bushing - Plastic
  • Locknut - Steel
  • Sleeve - Aluminum
  • Strand - Galvanized Steel
Style For Insulated Cables
Thread Size 1 1/4" NPS
Type Insulated, Wide Range
UPC 783585330112


Dimensions

Dimension - Thread Size 1.313" (3.02)
Display Size Standard Sized
Trade Size 1.25



Conductor Related

Cable Diameter Range 0.97 in - 1.25 in
Cable Size .97" - 1.25" (2.46- 3.17cm)
Cable Specification Mesh Length @ Nom. :9' (22.86 cm)



Logistics

Carton Quantity 10
Pallet Quantity 1080



PRODUCT DATASHEET

Wiring 073031211 Specification Sheet
