07310005 - Hubbell Wiring Device-Kellems - 0.85- 1.00" Galvanized I-Grips
Kellems Wire Management, I-Grips, .85- 1.00", Galvanized

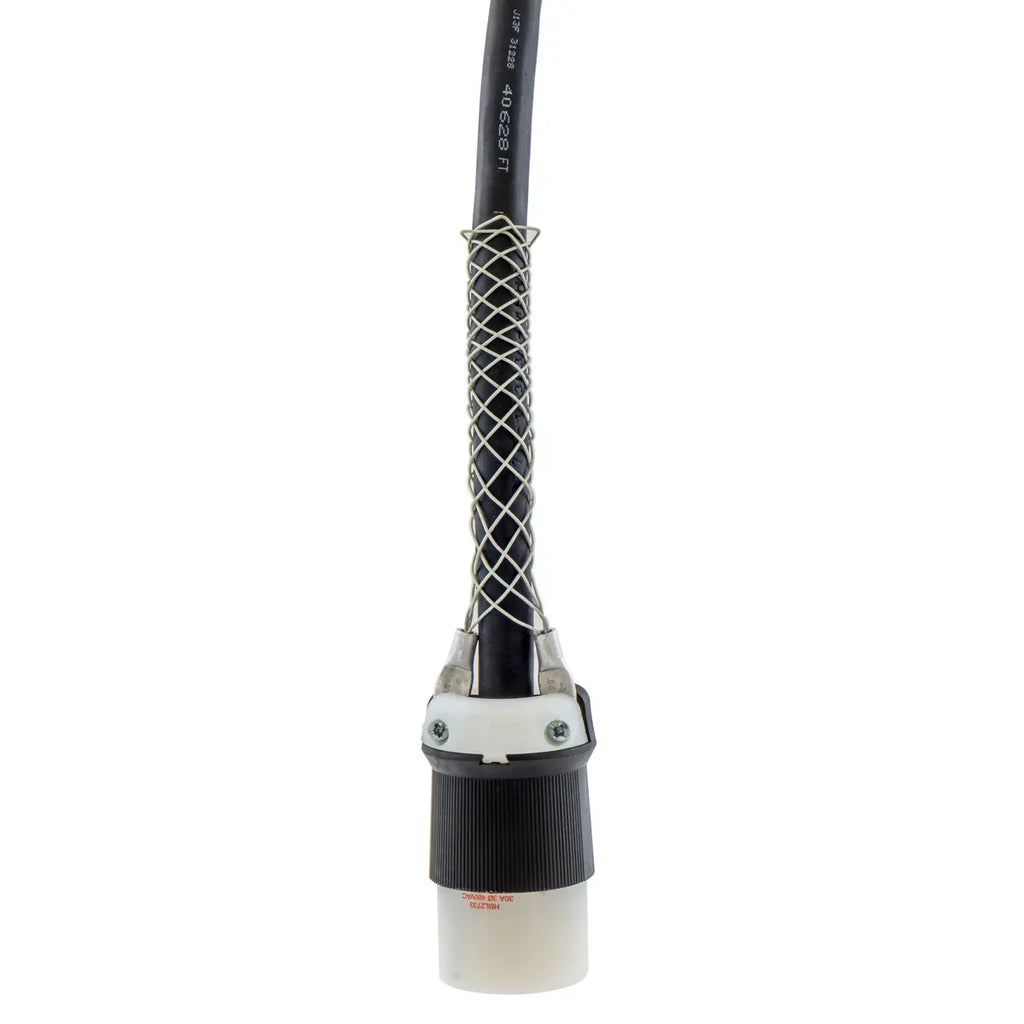

Kellems(R) I-Grips are made of high strength, plastic coated galvanized steel strand. They are offered in six sizes to fit all cable diameters used with Hubbell Insulgrip(R) Kellems l-Grips will control cable arc-of-bend and reduce high pull tensions from being transmitted to the wiring terminals.
- Controls cable arc-of-bend
- Provides heavy-duty strain relief
- Easily attached to Insulgrip plug and connector body
Plastic Coated Mesh
GENERAL SPECIFICATIONS
| Application |
Light Duty |
| Approx Breaking Strength |
250 lbs |
| Catalog Number |
07310005 |
| Construction |
Woven |
| EU RoHS Indicator |
Yes |
| Item Type |
I-Grips |
| Material |
Galvanized Steel Mesh for Insulated Cables, Plastic Coated |
| Material - Mounting Hardware |
Mounts on Cord Grip |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Series |
For Plug & Connectors |
| Specifications |
- Eye - Aluminum
- Strand - Galvanized Steel
- Tube - Plastic
|
| Style |
I-Grips, For Hubbell Devices |
| Type |
Eyelets (2) |
| UPC |
783585332185 |
Dimensions
| Display Size |
Standard Size |
Conductor Related
| Cable Diameter Range |
0.85 in - 1.00 in |
| Cable Size |
.85" - 1.00" (2.16 - 2.54) |
| Cable Specification |
Mesh Length @ Nom. Dia.: 8" (20.32 cm) |
Force Related
| Approx Breaking Strength
|
250 lbs |
Logistics
PRODUCT DATASHEET
Wiring 07310005 Specification Sheet
