07310006 - Hubbell Wiring Device-Kellems - 1.00-1.25" Galvanized I-Grips
Kellems Wire Management, I-Grips, 1.00- 1.25", Galvanized

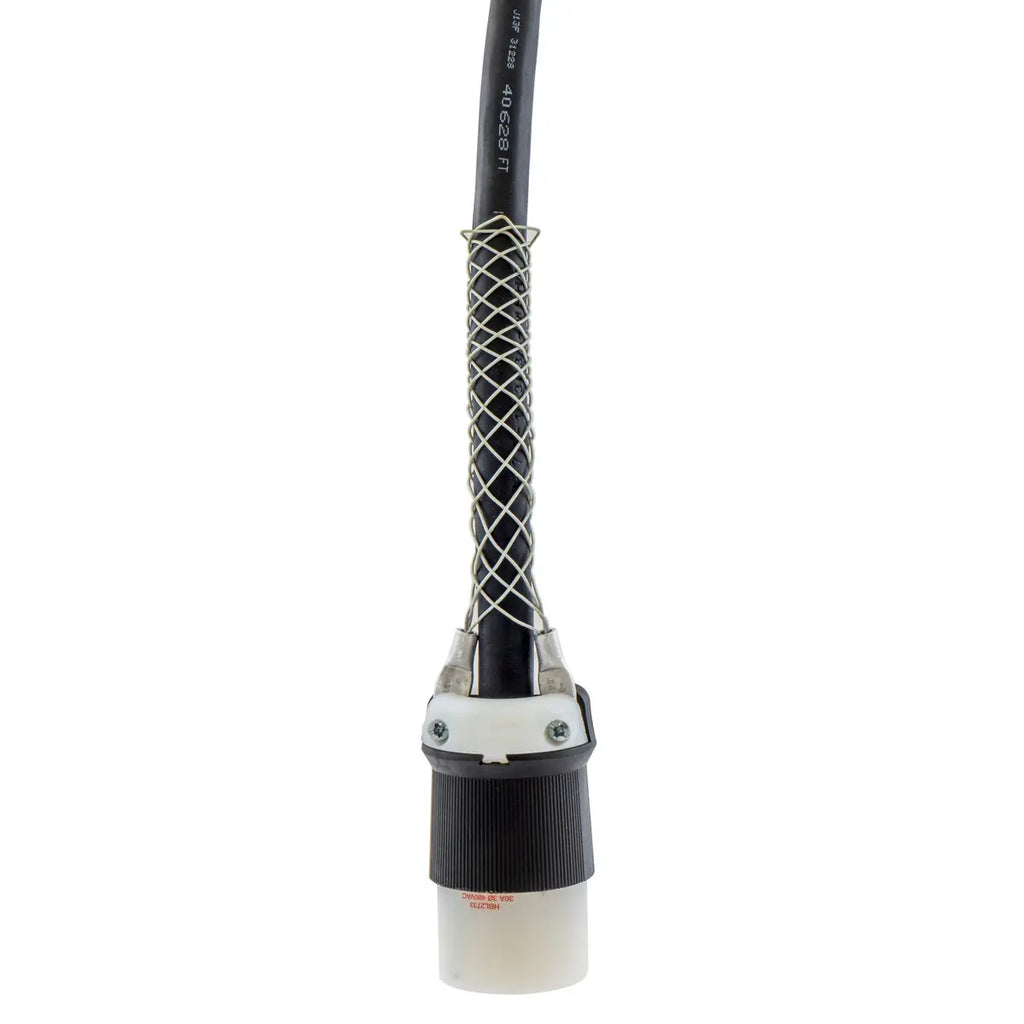

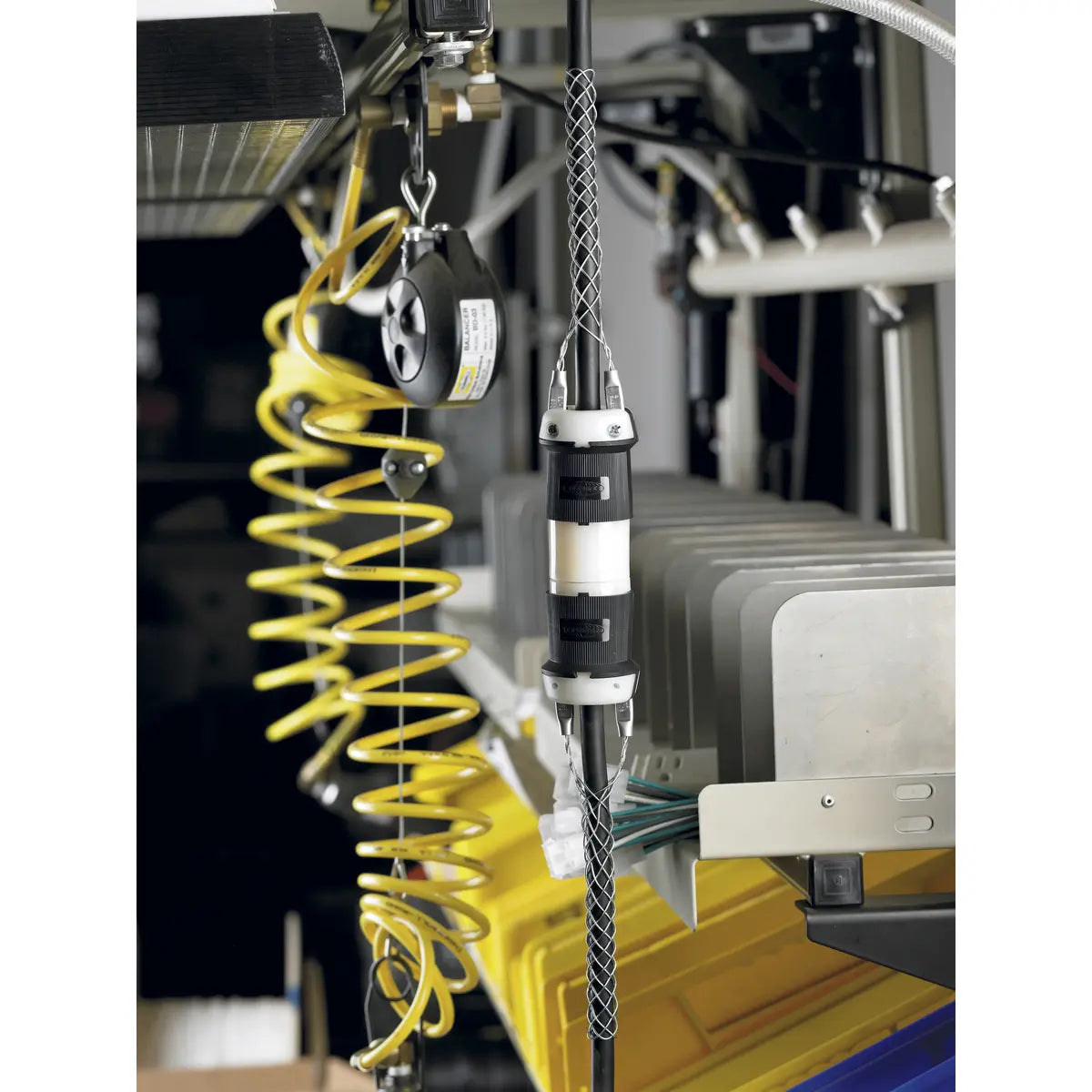

Kellems(R) I-Grips are made of high strength, plastic coated galvanized steel strand. They are offered in six sizes to fit all cable diameters used with Hubbell Insulgrip(R) Kellems l-Grips will control cable arc-of-bend and reduce high pull tensions from being transmitted to the wiring terminals.
- Controls cable arc-of-bend
- Provides heavy-duty strain relief
- Easily attached to Insulgrip plug and connector body
Plastic Coated Mesh
GENERAL SPECIFICATIONS
| Application |
Light Duty |
| Approx Breaking Strength |
250 lbs |
| Catalog Number |
07310006 |
| Construction |
Woven |
| EU RoHS Indicator |
Yes |
| Item Type |
I-Grips |
| Material |
Galvanized Steel Mesh for Insulated Cables, Plastic Coated |
| Material - Mounting Hardware |
Mounts on Cord Grip |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Series |
For Plug & Connectors |
| Specifications |
- Eye - Aluminum
- Strand - Galvanized Steel
- Tube - Plastic
|
| Style |
I-Grips, For Hubbell Devices |
| Type |
Eyelets (2) |
| UPC |
783585332192 |
Dimensions
| Display Size |
Standard Size |
Conductor Related
| Cable Diameter Range |
1.00 in - 1.25 in |
| Cable Size |
1.00" - 1.25" (2.54 - 3.17) |
| Cable Specification |
Mesh Length @ Nom. Dia.: 10" (25.40 cm) |
Force Related
| Approx Breaking Strength
|
250 lbs |
Logistics
| Carton Quantity |
20 |
| Pallet Quantity |
4800 |
