Description

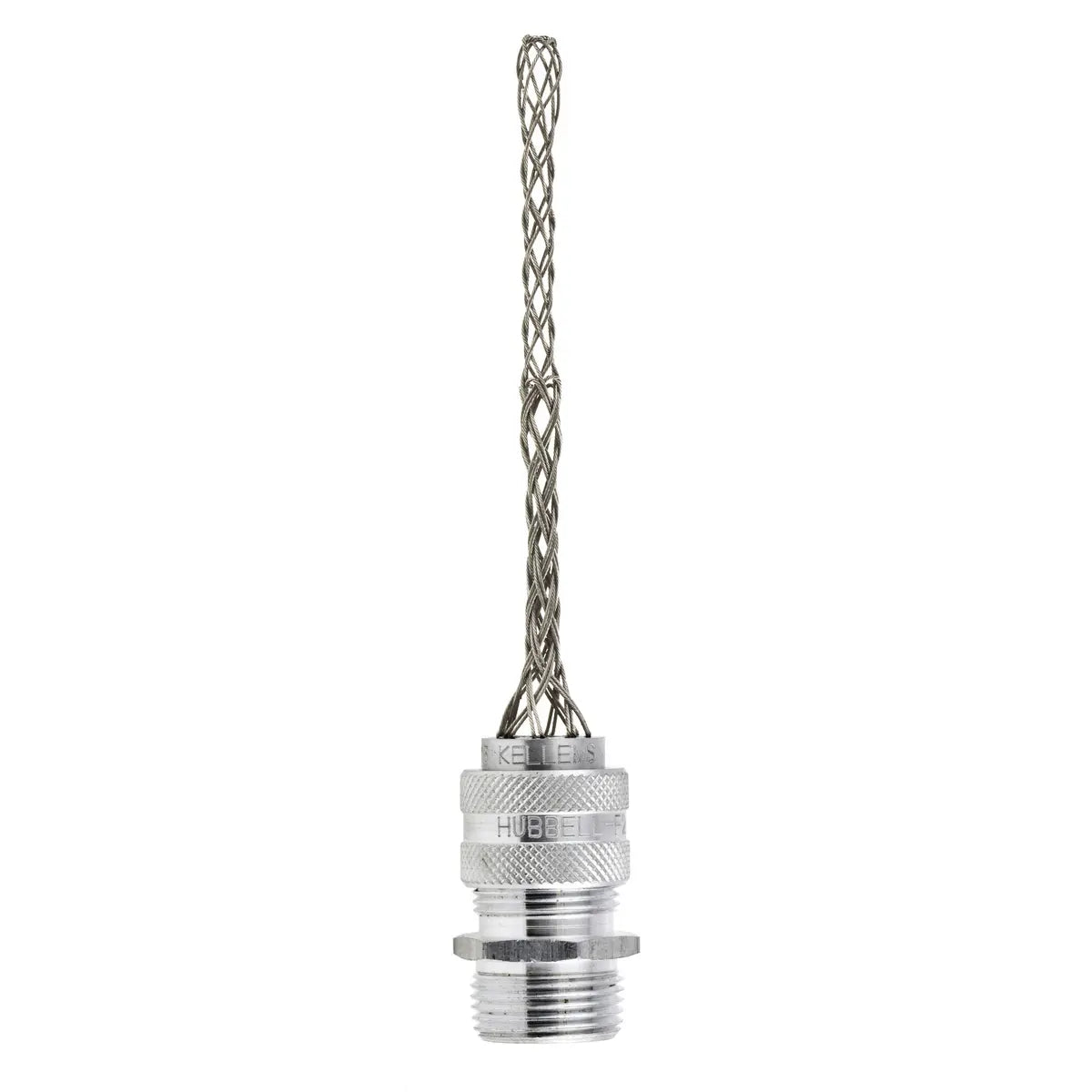

07401018 - Hubbell Wiring Device-Kellems - 3/4" with Mesh Straight Male Deluxe Cord Grips
Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a Liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available. Specific uses are: wiring enclosures, pendant stations, hand tools, construction, processing and material handling equipment, pumps, motors and machine tools.
- Stainless steel mesh is corrosion resistant
- Multiweave grip gives cable arc-of-bend control
- Endless weave provides easy cable/flexible conduit installation
GENERAL SPECIFICATIONS
| Application | Straight Male – Form 3 |
| Catalog Number | 07401018 |
| EU RoHS Indicator | Yes |
| Item Type | Deluxe Cord Grips |
| Material | Aluminum Fittings, Stainless Steel Mesh |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance |
|
| Series | Deluxe Cord Grips |
| Specifications |
|
| Style | For Insulated Cables |
| Temperature Rating | –30°F to 240°F (–34°C to 115°C) |
| Thread Size | 3/4" NPT |
| Type | Straight Male Thread |
| UPC | 783585321998 |
| Environmental Conditions | Suitable for wet locations when used with a listed sealing ring between box and fitting |
Dimensions
| Display Size | 3/4" NPT |
Conductor Related
| Cable Diameter Range | 0.625 in – 0.750 in |
| Cable Size | .625" – .750" (1.59 – 1.90) |
| Conductor Range | 0.625 – 0.75 in (1.59 – 1.90 mm) |
| Number of Conductors | Single |
Logistics
| Carton Quantity | 5 |
| Pallet Quantity | 1400 |
