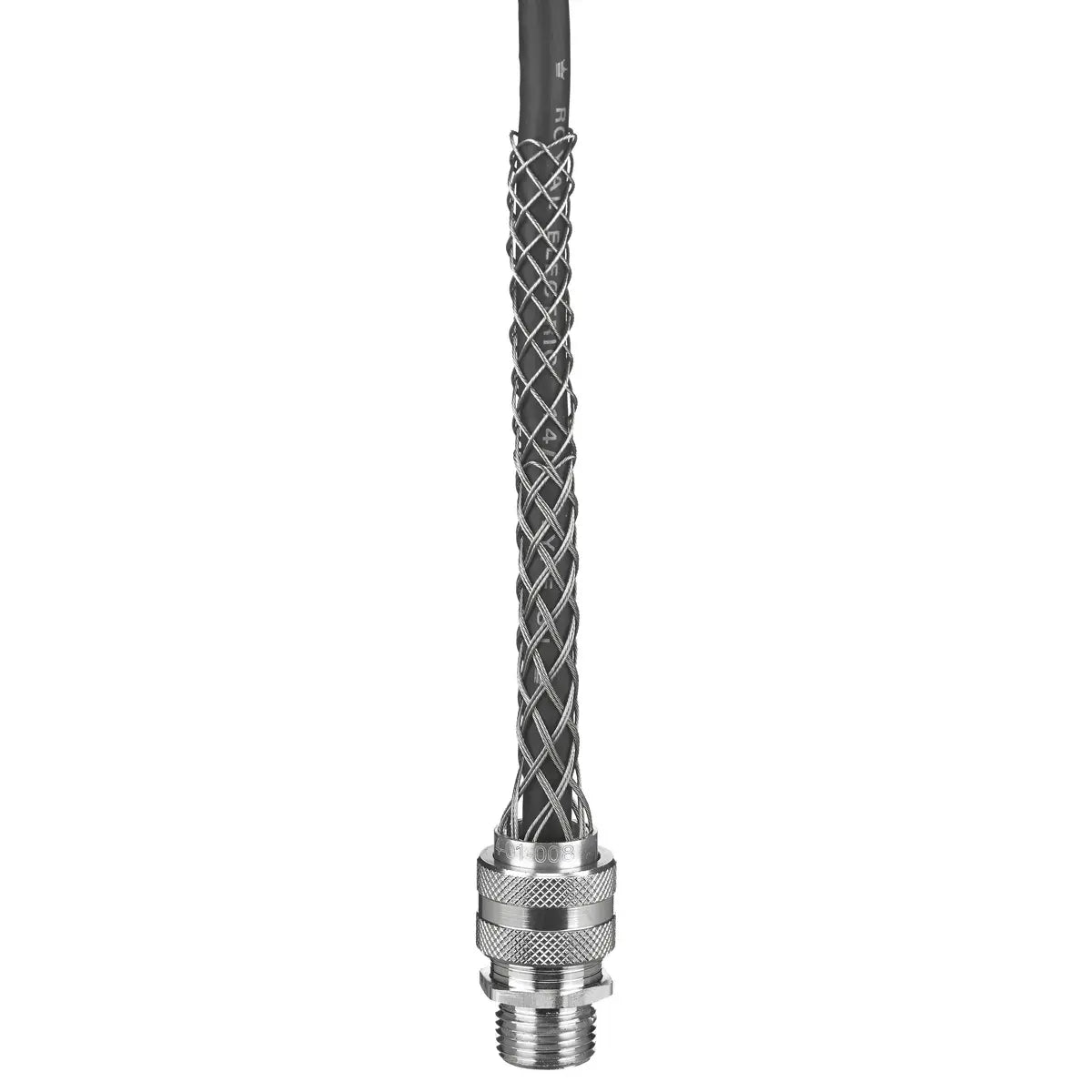

07401025 - Hubbell Wiring Device-Kellems - 1" with Mesh Straight Male Deluxe Cord Grips
Kellems Wire Management, Deluxe Cord Grips, Straight Male, .875-1.000", 1", with Mesh
Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a Liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available. Specific uses are: wiring enclosures, pendant stations, hand tools, construction, processing and material handling equipment, pumps, motors and machine tools.
- Stainless steel mesh is corrosion resistant
- Multiweave grip gives cable arc-of-bend control
- Endless weave provides easy cable/flexible conduit installation
Standard Product
GENERAL SPECIFICATIONS
| Application | Straight Male - Form 4 |
| Catalog Number | 07401025 |
| Environmental Conditions | Suitable for use in wet locations when used with a listed sealing ring between box and fitting. |
| EU RoHS Indicator | Yes |
| Item Type | Deluxe Cord Grips |
| Material | Aluminum Fittings, Stainless Steel Mesh |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | –30°F to +240°F (–34°C to +115°C) |
| Performance |
|
| Series | Deluxe Cord Grips |
| Specifications |
|
| Style | For Insulated Cables |
| Temperature Rating |
Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) |
| Thread Size | 1" NPT |
| Type | Straight Male Thread |
| UPC | 783585322063 |
Dimensions
| Display Size | 1" NPT |
| Thread Size | 1" NPT |
| Weight | 0.3 lb |
Driver Related
| Cable Diameter Range | 0.875 in - 1.000 in |
| Cable Size | .875" - 1.000" (2.22 - 2.54 cm) |
| Conductor Range | 0.875 - 1 in (2.22 - 2.54 mm) |
| Number of Conductors | Single |
Conductor Related
|
Cable Diameter Range
|
0.875 in-1.000 in
|
|
Cable Size
|
.875"-1.000" (2.22-2.54)
|
|
Conductor Range
|
0.875-1 in (2.22-2.54 mm)
|
|
Number of Conductors
|
Single
|
Operational
| Operating Temperature | –30°F to +240°F (–34°C to +115°C) |
| Performance |
|
| Temperature Rating | Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) |
Logistics
| Carton Quantity | 5 |
| Pallet Quantity | 1500 |
