Description

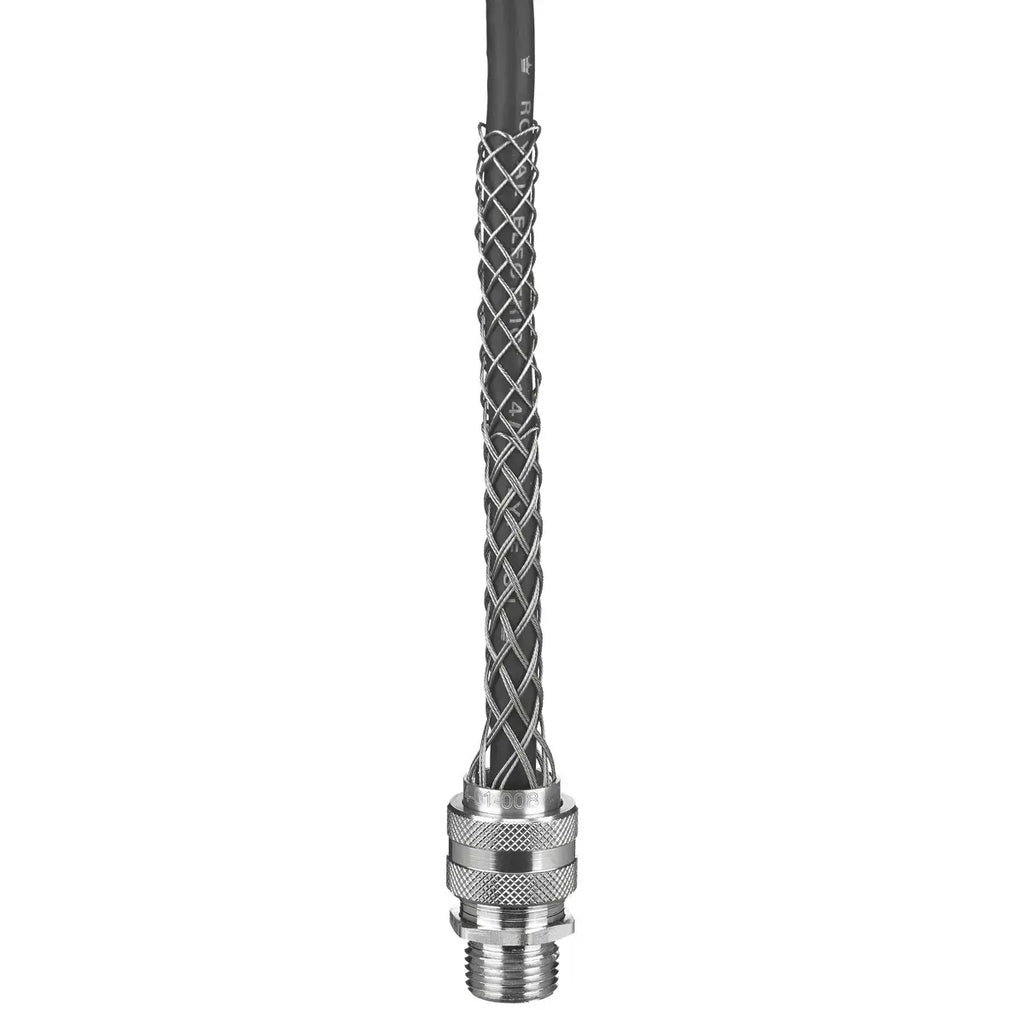

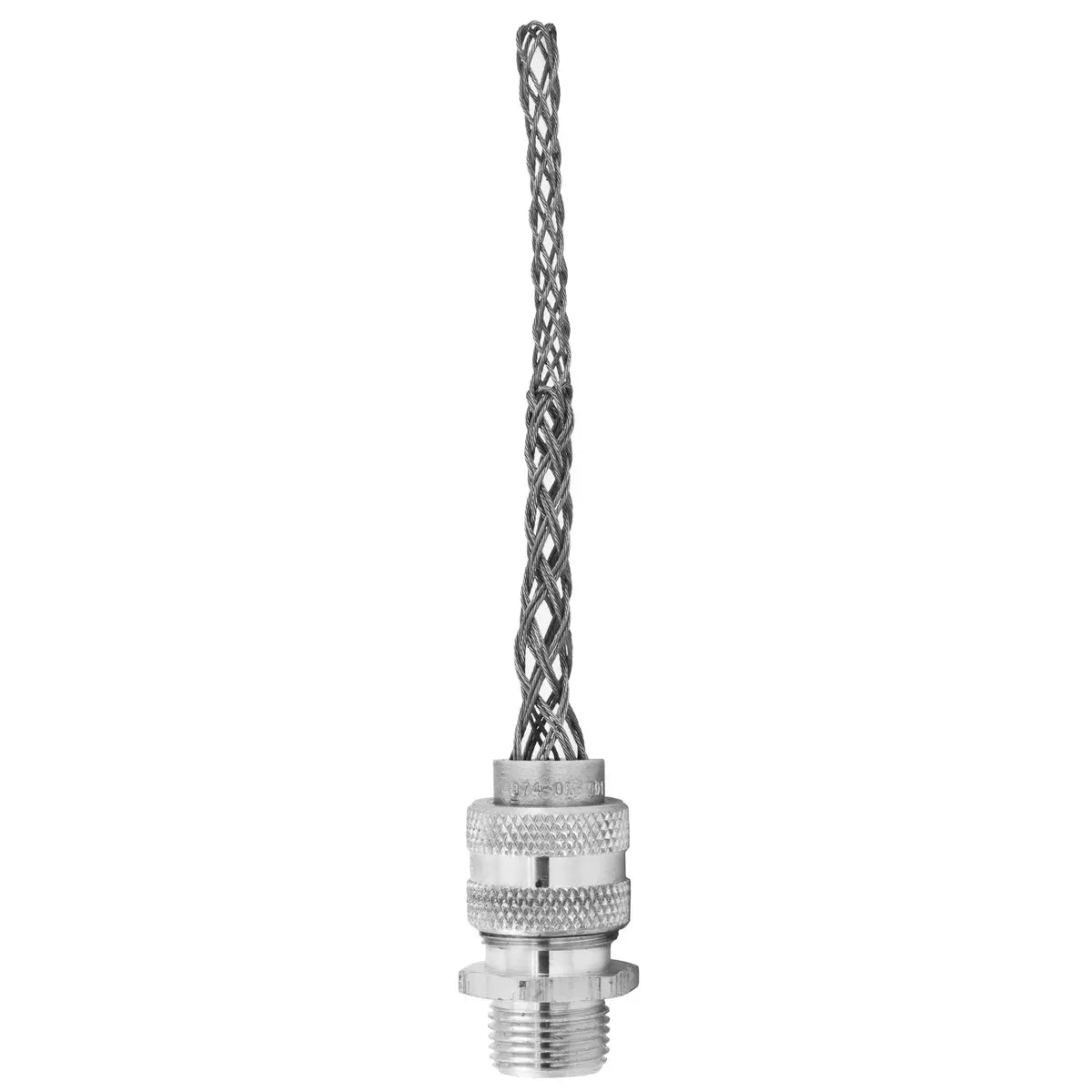

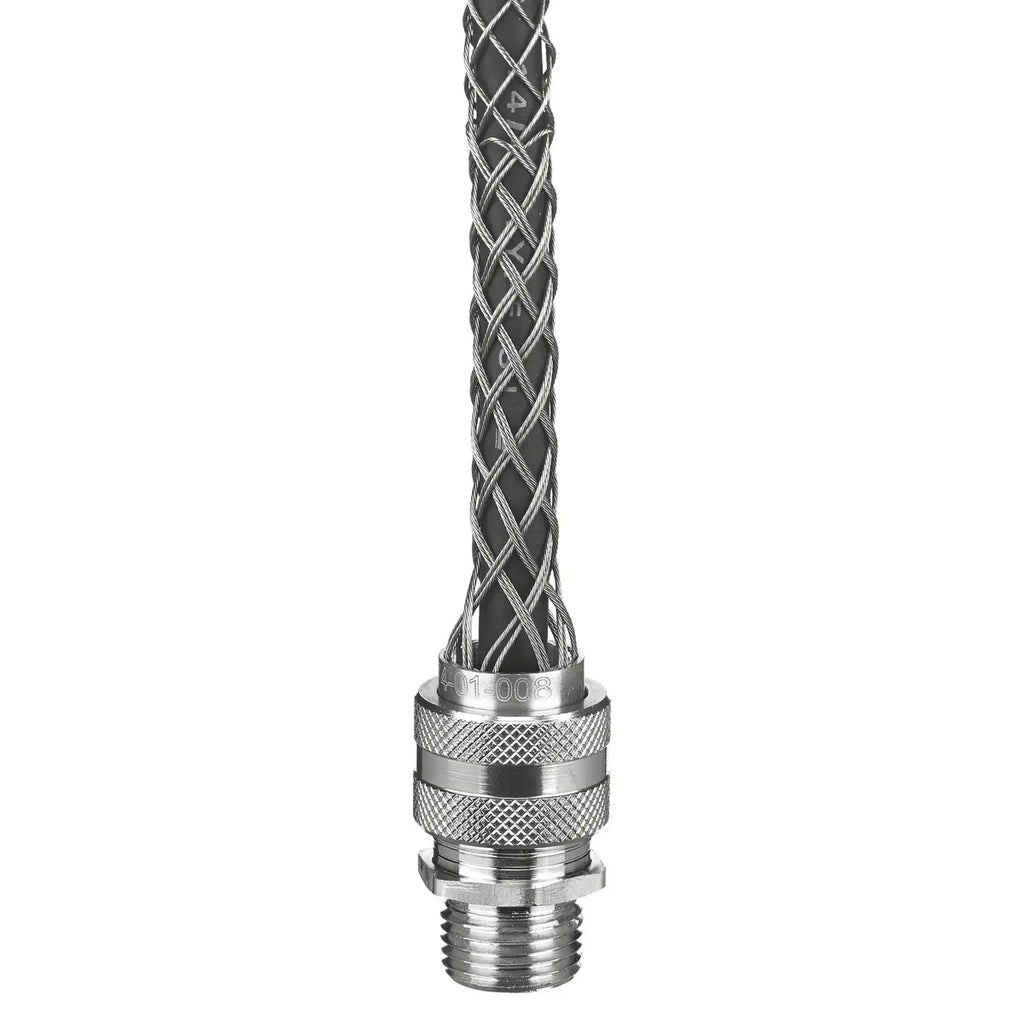

07401028 - Hubbell Wiring Device-Kellems - 1-1/4" with Mesh Straight Male Deluxe Cord Grips
Kellems Wire Management, Deluxe Cord Grips, Straight Male, 1.125-1.250", 1 1/4" with Mesh
Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a Liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available. Specific uses are: wiring enclosures, pendant stations, hand tools, construction, processing and material handling equipment, pumps, motors and machine tools.
- Stainless steel mesh is corrosion resistant
- Multiweave grip gives cable arc-of-bend control
- Endless weave provides easy cable/flexible conduit installation
- UL514B Tray cable rated for dry locations
Standard Product
GENERAL SPECIFICATIONS
| Application | Straight Male - Form 5 |
| Catalog Number | 07401028 |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting |
| EU RoHS Indicator | Yes |
| Item Type | Deluxe Cord Grips |
| Material | Aluminum Fittings, Stainless Steel Mesh |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance |
|
| Series | Deluxe Cord Grips |
| Specifications |
|
| Style | For Insulated Cables |
| Temperature Rating | Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) |
| Thread Size | 1 1/4" NPT |
| Type | Straight Male Thread |
| UPC | 783585322094 |
Dimensions
| Display Size | 1 - 1/4" NPT |
| Thread Size | 1 1/4" NPT |
Conductor Related
| Cable Diameter Range | 1.125 in - 1.250 in |
| Cable Size | 1.125" - 1.250" (2.86 – 3.17 cm) |
| Conductor Range | 1.125 - 1.25 in (2.86 – 3.17 mm) |
| Number of Conductors | Single |
Operational
| Performance |
|
| Temperature Rating | Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) |
Logistics
| Carton Quantity | 5 |
| Pallet Quantity | 540 |
PRODUCT DATASHEET
