Description

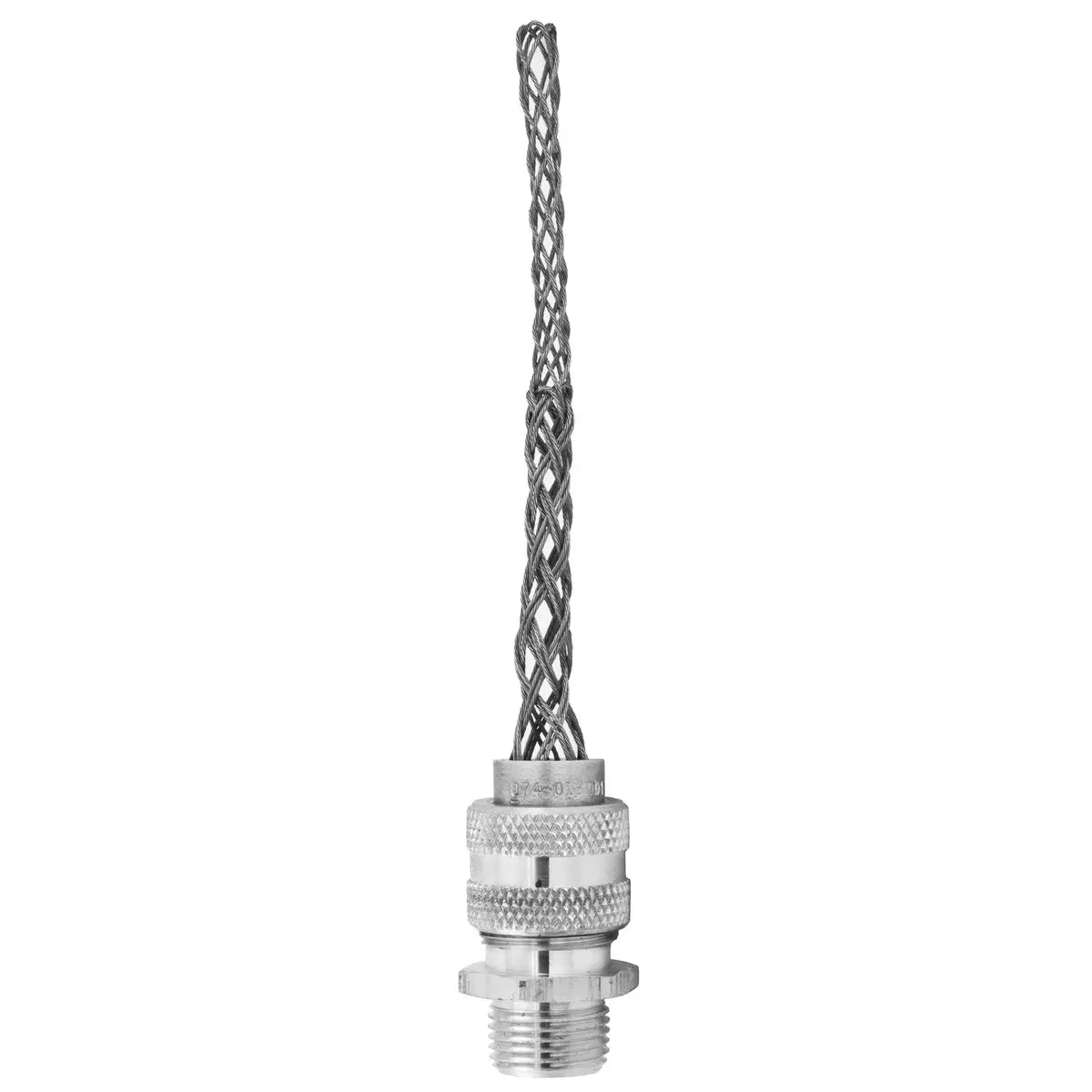

07401033 - Hubbell Wiring Device-Kellems - 2" with Mesh Straight Male Deluxe Cord Grips
Kellems Wire Management, Deluxe Cord Grips, Straight Male, 1.437-1.562", 2" with Mesh
Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a Liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available. Specific uses are: wiring enclosures, pendant stations, hand tools, construction, processing and material handling equipment, pumps, motors and machine tools.
- Stainless steel mesh is corrosion resistant
- Multiweave grip gives cable arc-of-bend control
- Endless weave provides easy cable/flexible conduit installation
- UL514B Tray cable rated for dry locations
Standard Product
GENERAL SPECIFICATIONS
| Application | Straight Male - Form 6 |
| Catalog Number | 07401033 |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting. |
| EU RoHS Indicator | Yes |
| Item Type | Deluxe Cord Grips |
| Material | Aluminum Fittings, Stainless Steel Mesh |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance |
* Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2 (Fitting) * Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 NEC * Environmental - Operating Temperatures - -30 degF to +240 degF (-34 degC to +115 degC) * Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting |
| Series | Deluxe Cord Grips |
| Specifications |
* Body - Aluminum * Bushing - Neoprene * Nut - Aluminum * Strand - Stainless Steel |
| Style | For Insulated Cables |
| Temperature Rating | Minimum -30 degF to 240 degF (-34 degC to 115 degC) |
| Thread Size | 2" NPT |
| Type | Straight Male Thread |
| UPC | 783585322148 |
Dimensions
| Display Size | 2" NPT |
| Thread Size | 2" NPT |
Conductor Related
| Cable Diameter Range | 1.437 in - 1.562 in |
| Cable Size | 1.437" - 1.562" (3.65 - 3.97 cm) |
| Conductor Range | 1.437 - 1.562 in (3.65 - 3.97 mm) |
| Number of Conductors | Single |
Operational
| Performance |
|
| Temperature Rating | Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) |
Logistics
| Carton Quantity | 2 |
