Description

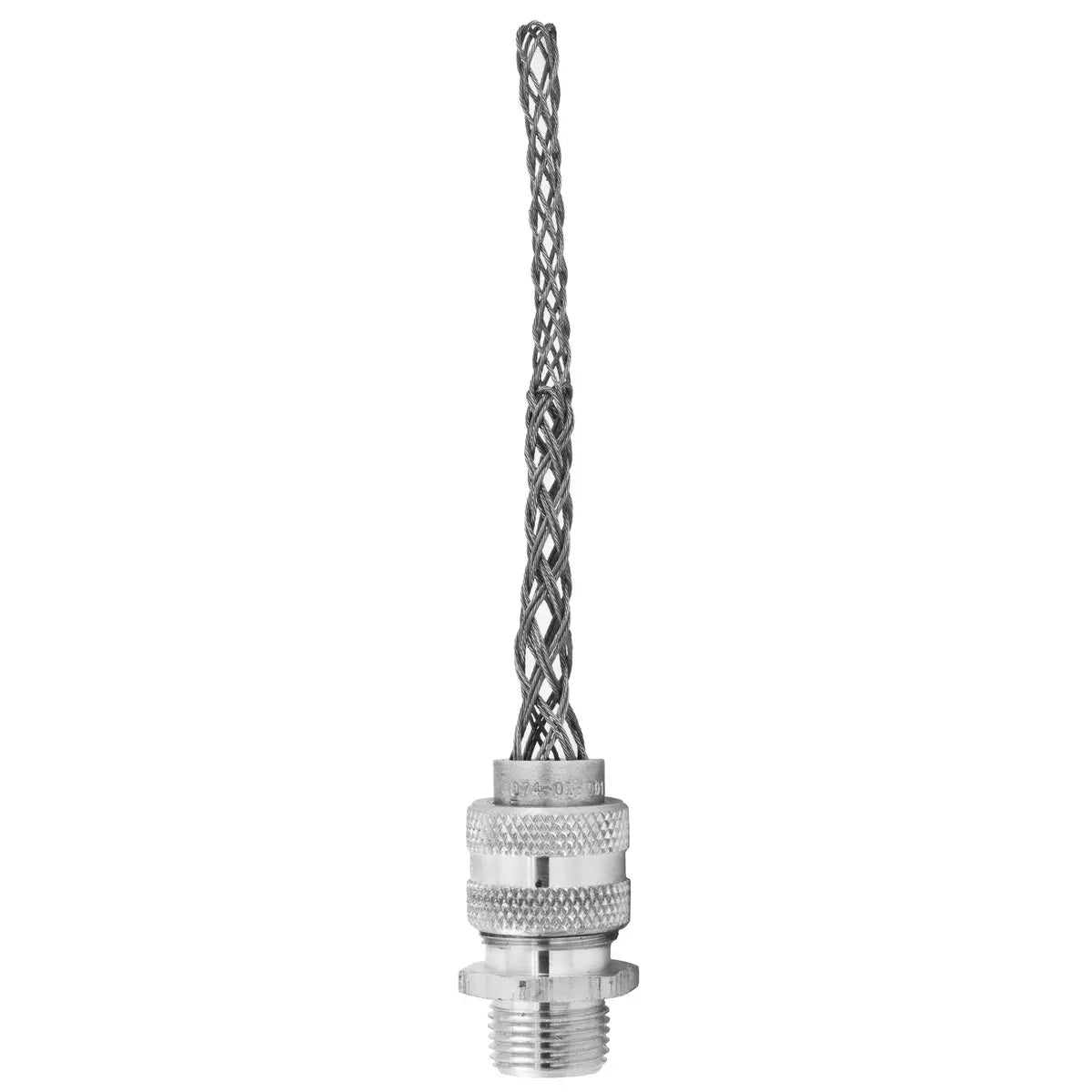

07401035 - Hubbell Wiring Device-Kellems - 2" with Mesh Straight Male Deluxe Cord Grips
Kellems Wire Management, Deluxe Cord Grips, Straight Male, 1.687-1.812", 2" with Mesh
Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a Liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available. Specific uses are: wiring enclosures, pendant stations, hand tools, construction, processing and material handling equipment, pumps, motors and machine tools.
- Stainless steel mesh is corrosion resistant
- Multiweave grip gives cable arc-of-bend control
- Endless weave provides easy cable/flexible conduit installation
- UL514B Tray cable rated for dry locations
Standard Product
GENERAL SPECIFICATIONS
| Application | Straight Male - Form 6 |
| Catalog Number | 07401035 |
| Environmental Conditions | Suitable for use in wet locations when used with a listed sealing ring between box and fitting. |
| EU RoHS Indicator | Yes |
| Item Type | Deluxe Cord Grips |
| Material | Aluminum Fittings or Stainless Steel Mesh |
| Material - Mounting Hardware | Locknut, Tapped Opening |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance |
|
| Series | Deluxe Cord Grips |
| Specifications |
|
| Style | For Insulated Cables |
| Temperature Rating |
Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) |
| Thread Size | 2" NPT |
| Type | Straight Male Thread |
| UPC | 783585322162 |
Dimensions
| Display Size | 2" NPT |
| Thread Size | 2" NPT |
Conductor Related
| Cable Diameter Range | 1.687 in - 1.812 in |
| Cable Size | 1.687" - 1.812" (4.28 - 4.60 cm) |
| Conductor Range | 1.687 - 1.812 in (4.28 - 4.6 mm) |
| Number of Conductors | Single |
Operational
| Performance |
|
| Temperature Rating | Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) |
Logistics
| Pallet Quantity | 2 |
