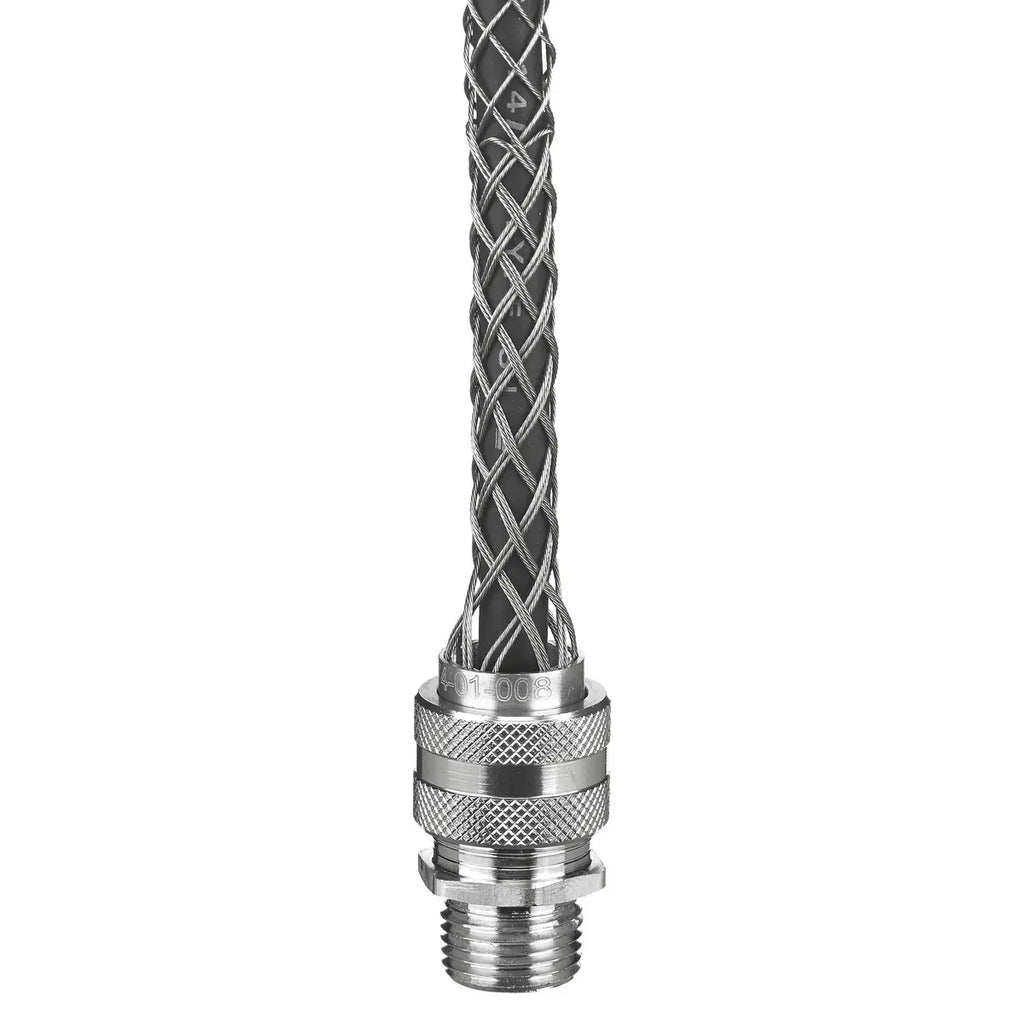

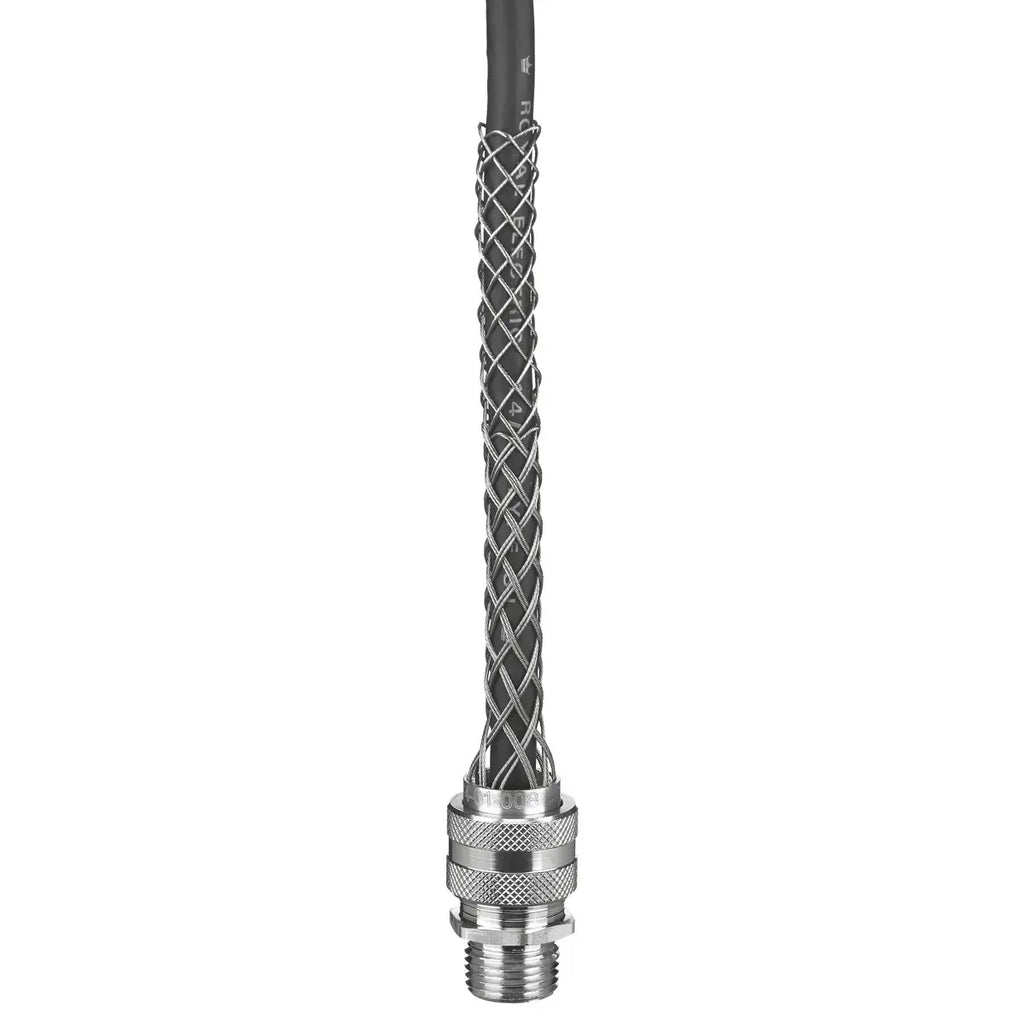

074011254 - Hubbell Wiring Device-Kellems - 1-1/2" with Mesh Straight Male Deluxe Cord Grips
Kellems Wire Management, Deluxe Cord Grips, Straight Male, 1.437-1.562", 1 1/2" with Mesh

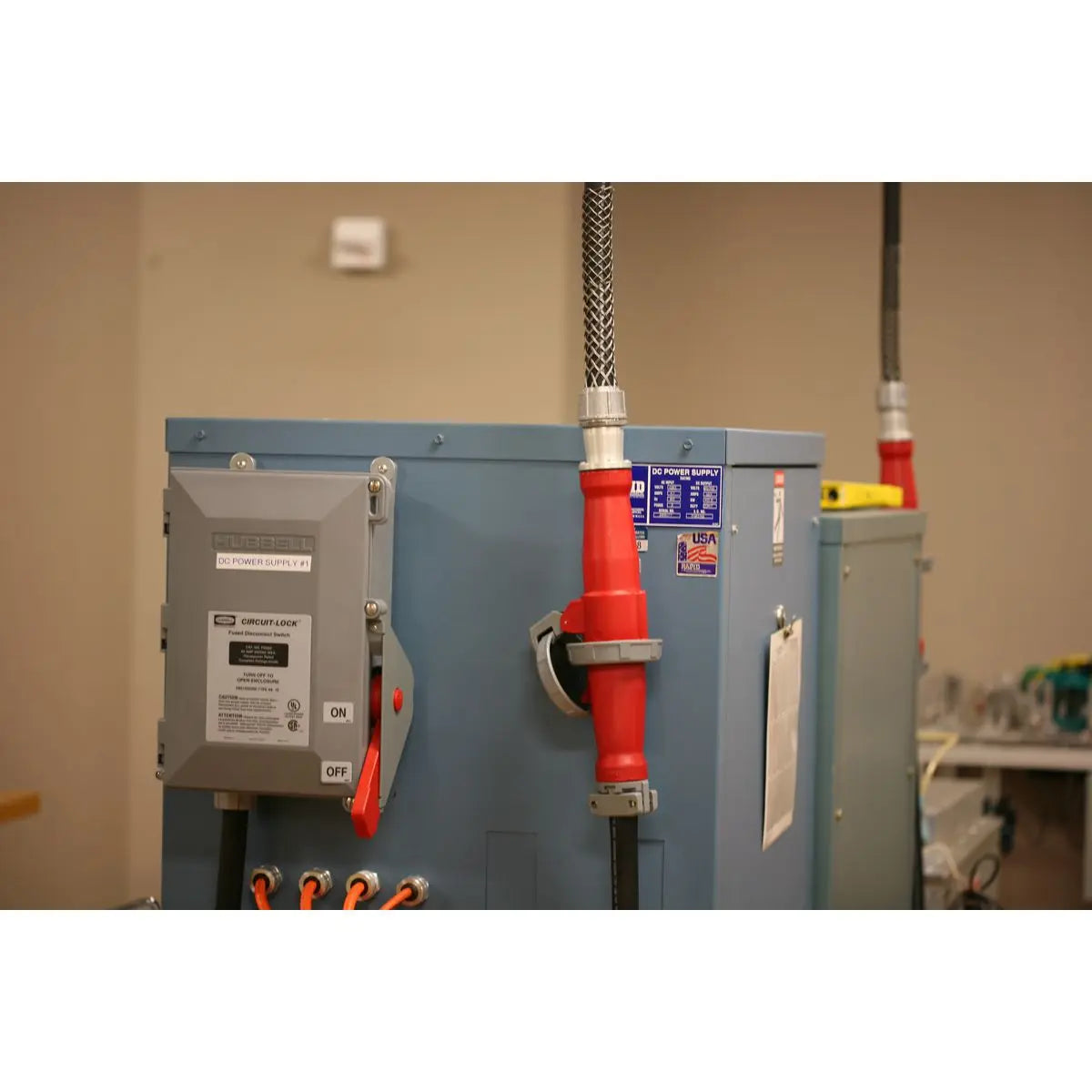

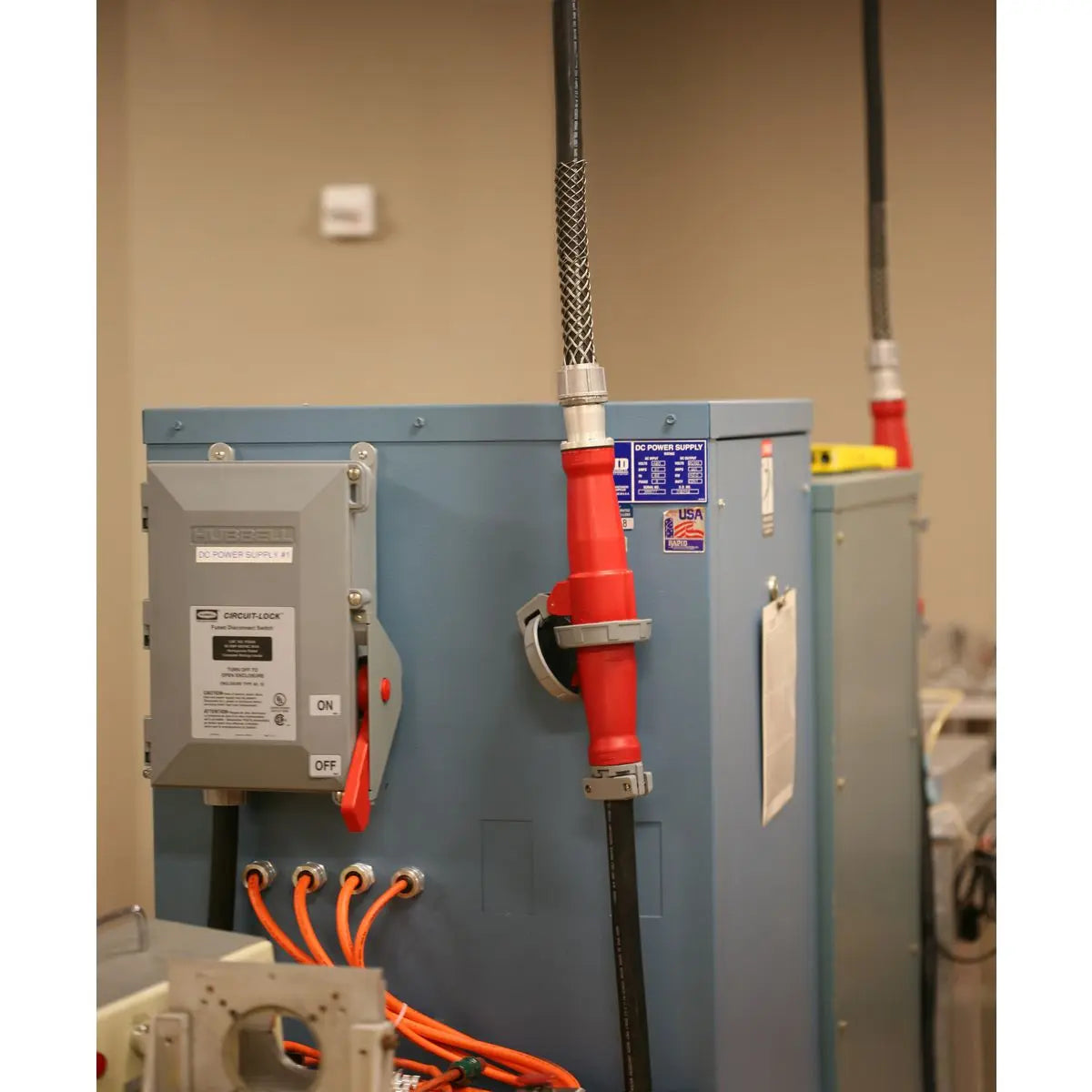

Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a Liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available. Specific uses are: wiring enclosures, pendant stations, hand tools, construction, processing and material handling equipment, pumps, motors and machine tools.
- Stainless steel mesh is corrosion resistant
- Multiweave grip gives cable arc-of-bend control
- Endless weave provides easy cable/flexible conduit installation
Standard Product
GENERAL SPECIFICATIONS
| Application | Straight Male - Form 6 |
| Catalog Number | 074011254 |
| Environmental Conditions | Suitable for use in wet locations when used with a listed sealing ring between box and fitting. |
| EU RoHS Indicator | Yes |
| Item Type | Deluxe Cord Grips |
| Material | Aluminum Fittings or Stainless Steel Mesh |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance |
|
| Series | Deluxe Cord Grips |
| Specifications |
|
| Style | For Insulated Cables |
| Temperature Rating | Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) |
| Thread Size | 1 1/2" NPT |
| Type | Straight Male Thread |
| UPC | 783585497846 |
Dimensions
| Display Size | 1 - 1/2" NPT |
| Thread Size | 1 1/2" NPT |
Conductor Related
| Cable Diameter Range | 1.437 in - 1.562 in |
| Cable Size | 1.437" - 1.562" (3.65 - 3.97 cm) |
| Conductor Range | 1.437 - 1.562 in (3.65 - 3.97 mm) |
| Number of Conductors | Single |
Operational
| Performance |
|
| Temperature Rating | Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) |
Logistics
| Carton Quantity | 2 |
