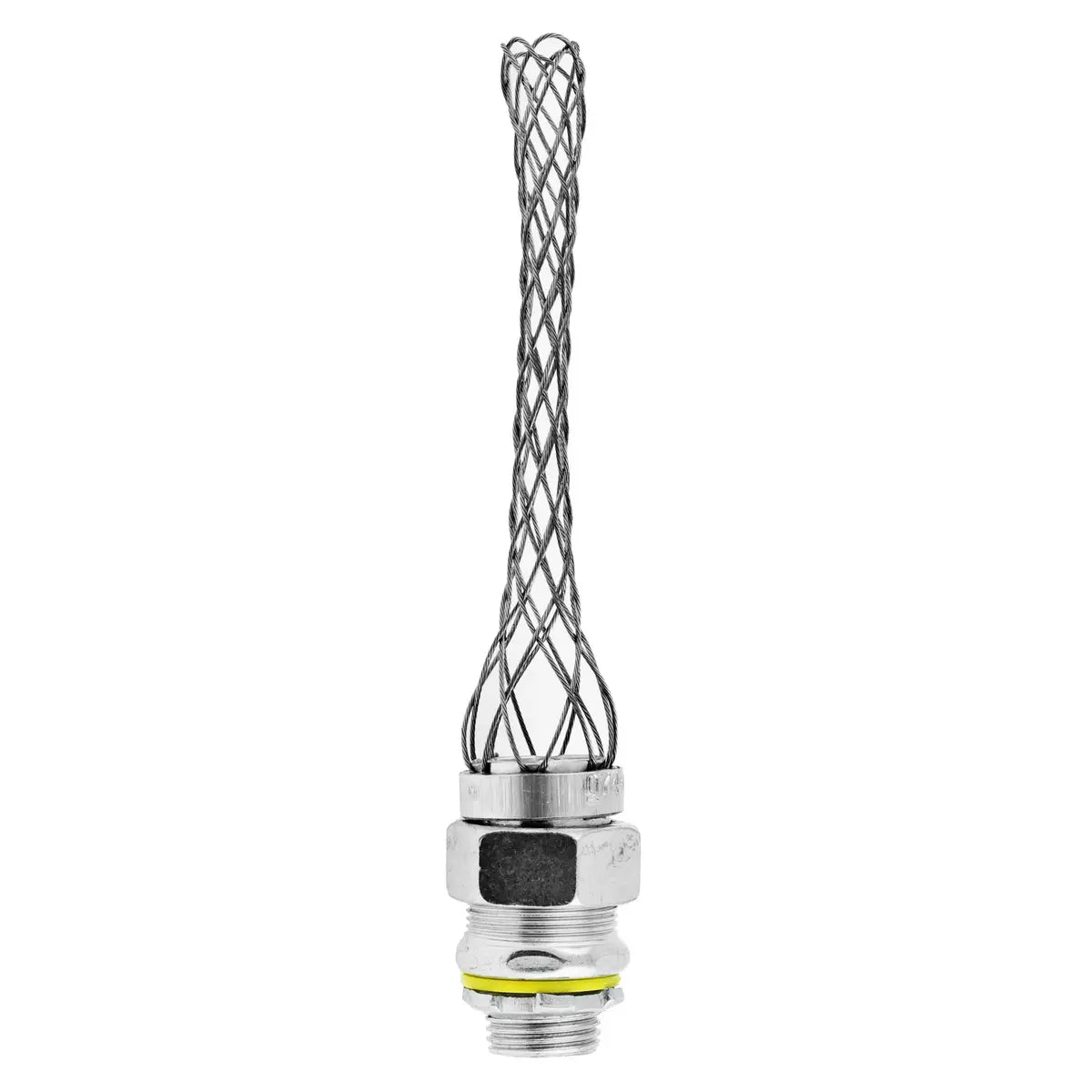

074093402 - Hubbell Wiring Device-Kellems - 1/2" Non-Insulated with Mesh Straight Liquidtight System
Kellems Wire Management, Liquidtight System, Straight, 1/2", Non-Insulated with Mesh
Strain Relief for Liquidtight Conduit - Steel Fitting, Stainless Steel Mesh for Liquidtight Metal Conduit and PolyTuff(R) I Non-Metallic Conduit. Helps prevent conduit pull-out and damage at the fitting; Reduces equipment downtime.
- Helps prevent conduit pull-out and damage at fitting
- Reduces equipment downtime
GENERAL SPECIFICATIONS
| Application |
1/2" NPT |
| Catalog Number |
074093402 |
| Material |
Steel Fitting, Stainless Steel Mesh |
| Performance |
- Environmental - Flammability - UL 94-HB and UL 94-V2
- Environmental - Hazardous Location - Suitable for use in hazardous locations per Class I, Div. 2, Class II, Div. 1 & 2, Class III, Div. 1 & 2
- Environmental - Operating Temperature - -30 degF to +225 degF (-34 degC to +107 degC)
|
| Series |
Liquidtight Conduit |
| Style |
For Metal & Non-Metallic PolyTuff I |
| Type |
Straight With Male Fitting |
| UPC |
783585331614 |
Dimensions
Operational
| Performance
|
- Environmental - Flammability - UL 94-HB and UL 94-V2
- Environmental - Hazardous Location - Suitable for use in hazardous locations per Class I, Div. 2, Class II, Div. 1 & 2, Class III, Div. 1 & 2
- Environmental - Operating Temperature - -30 degF to +225 degF (-34 degC to +107 degC)
|
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
3240 |
PRODUCT DATASHEET
Wiring 074093402 Specification Sheet
