074093403 - Hubbell Wiring Device-Kellems - 3/4" Non-Insulated with Mesh Straight Liquidtight System
074093403 - Hubbell Wiring Device-Kellems - 3/4" Non-Insulated with Mesh Straight Liquidtight System
074093403 - Hubbell Wiring Device-Kellems - 3/4" Non-Insulated with Mesh Straight Liquidtight System
Roll over image to zoom in Click on image to zoom
074093403 - Hubbell Wiring Device-Kellems - 3/4" Non-Insulated with Mesh Straight Liquidtight System074093403 - Hubbell Wiring Device-Kellems - 3/4" Non-Insulated with Mesh Straight Liquidtight System074093403 - Hubbell Wiring Device-Kellems - 3/4" Non-Insulated with Mesh Straight Liquidtight System

074093403 - Hubbell Wiring Device-Kellems - 3/4" Non-Insulated with Mesh Straight Liquidtight System

HubbellSKU: HUB074093403
Price:
$40.25
Stock:
Sold out

Description

074093403 - Hubbell Wiring Device-Kellems - 3/4" Non-Insulated with Mesh Straight Liquidtight System

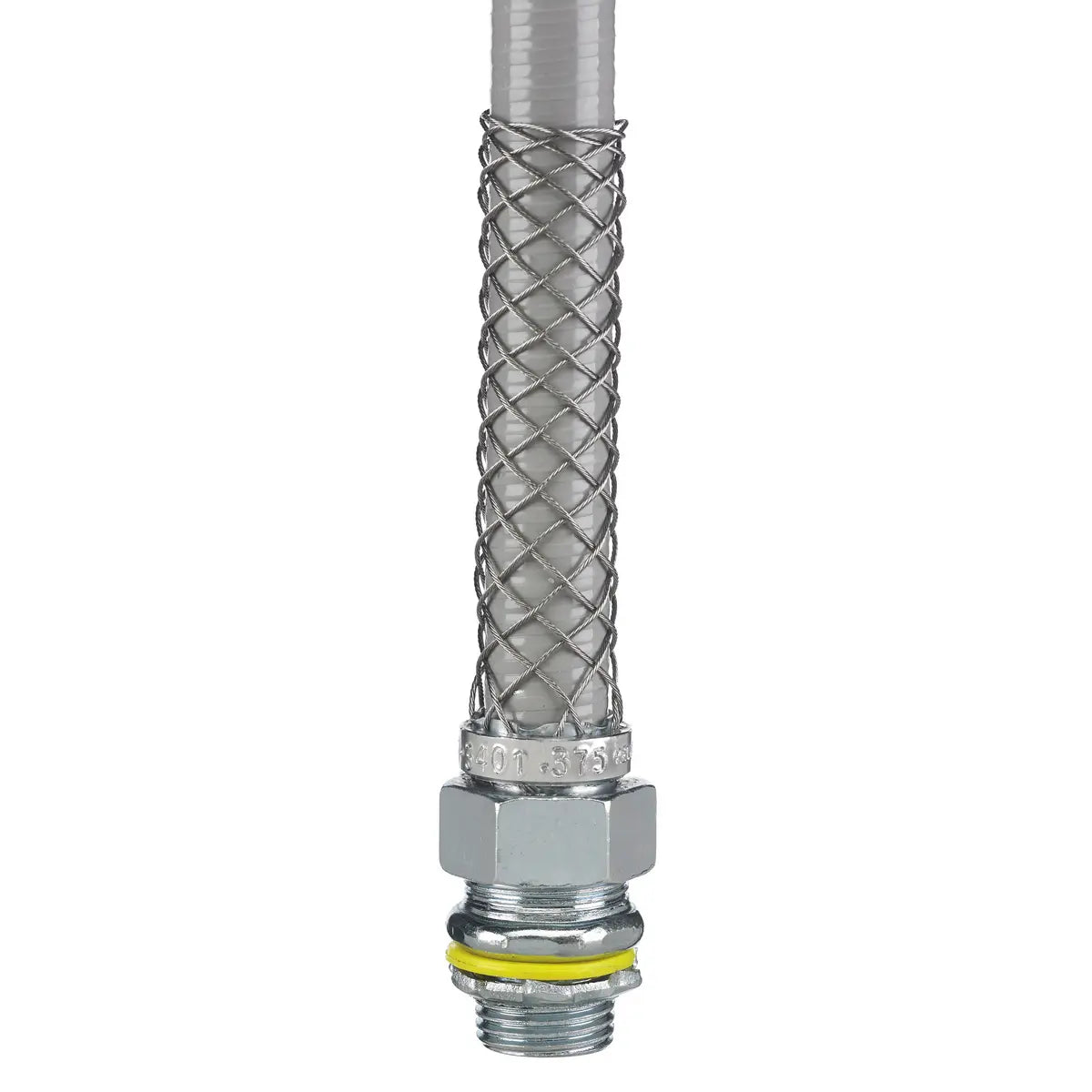

Kellems Wire Management, Liquidtight System, Straight, 3/4", Non-Insulated with Mesh

Strain Relief for Liquidtight Conduit - Steel Fitting, Stainless Steel Mesh for Liquidtight Metal Conduit and PolyTuff® I Non-Metallic Conduit. Helps prevent conduit pull-out and damage at the fitting; Reduces equipment downtime.

GENERAL SPECIFICATIONS

Application ¾" NPT
Catalog Number 074093403
Material Steel Fitting, Stainless Steel Mesh
Performance
  • Environmental - Flammability - UL 94-HB and UL 94-V2
  • Environmental - Hazardous Location - Suitable for use in hazardous locations per Class I, Div. 2, Class II, Div. 1 & 2, Class III, Div. 1 & 2
  • Environmental - Operating Temperature - -30°F to +225°F (-34°C to +107°C)
Series Liquidtight Conduit
Style For Metal & Non-Metallic PolyTuff I
Type Straight With Male Fitting
UPC 783585331621



Dimensions

Conduit Trade Size 3/4" in


Operational

 Performance
  • Environmental - Flammability - UL 94-HB and UL 94-V2
  • Environmental - Hazardous Location - Suitable for use in hazardous locations per Class I, Div. 2, Class II, Div. 1 & 2, Class III, Div. 1 & 2
  • Environmental - Operating Temperature - -30°F to +225°F (-34°C to +107°C)

Logistics

Carton Quantity 10



PRODUCT DATASHEET

Wiring 074093403 Specification Sheet
