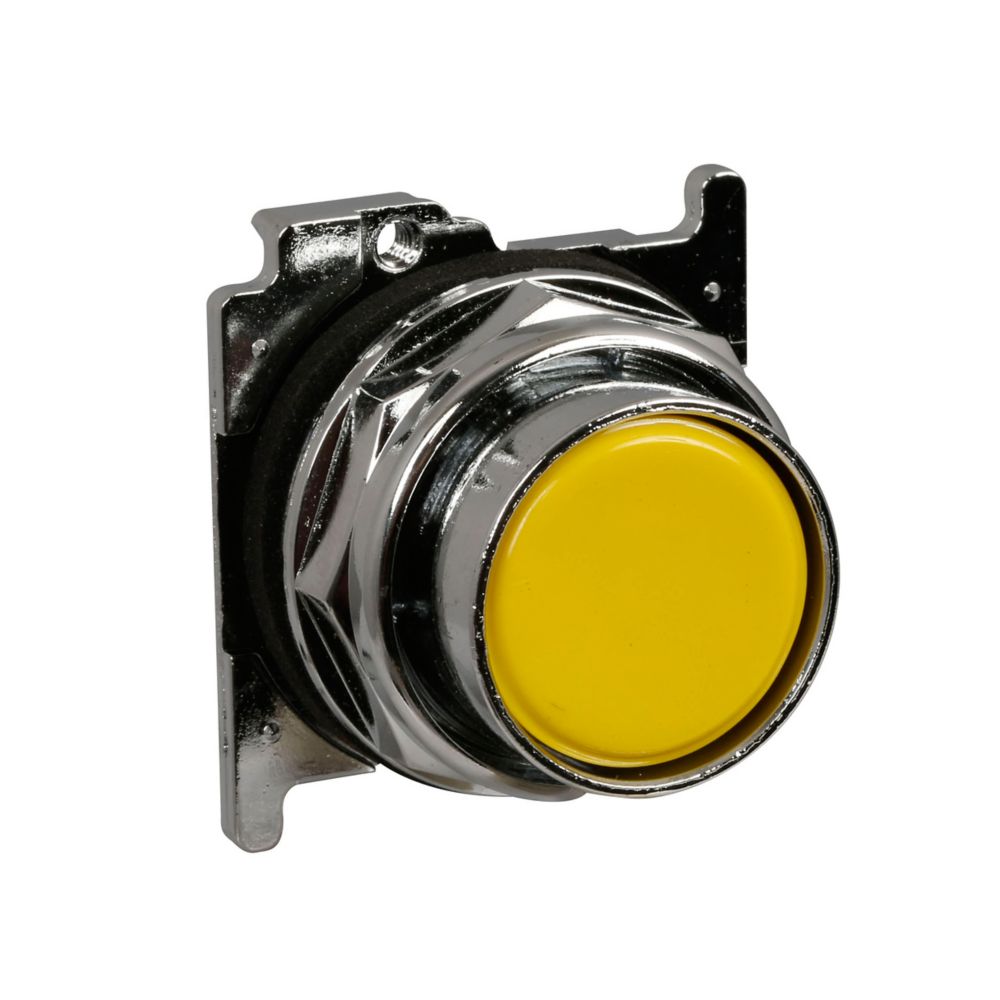

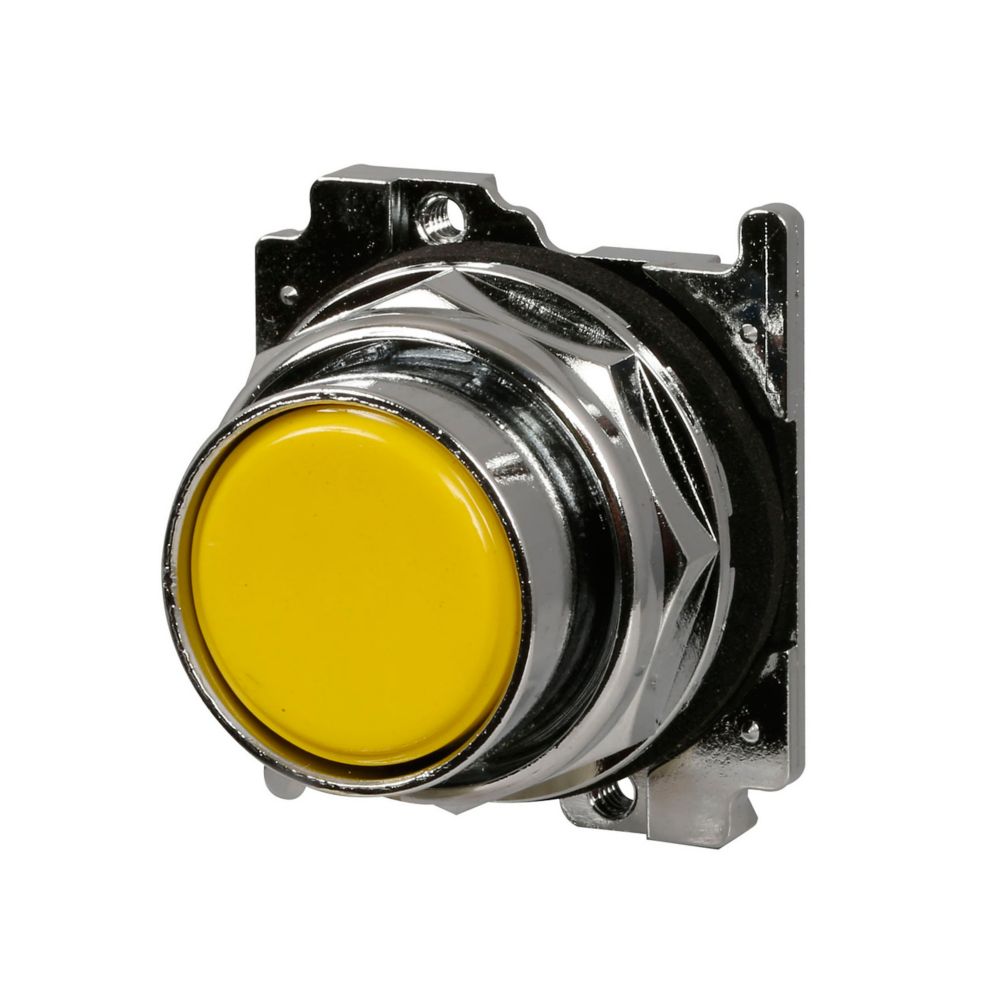

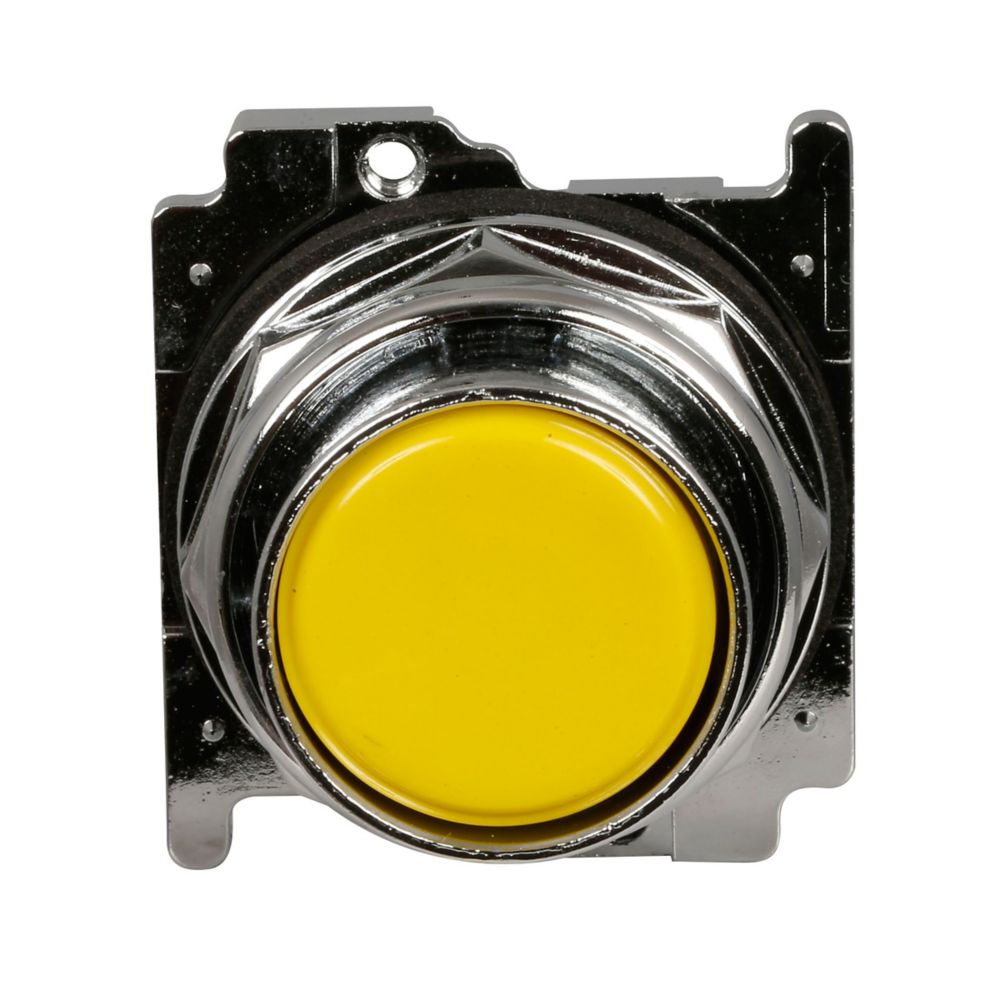

10250T104 - Eaton Cutler Hammer - Pushbutton
Eaton, 30.5 mm, Heavy-Duty Watertight/Oiltight Pushbutton,Class I Division 2,Yellow,Plastic Actuator,Chrome bezel,Non-illuminated,Flush mounting,Momentary,30.5 mm,Flush Pushbutton,10250T Series
GENERAL SPECIFICATIONS
| Product Name |
Eaton 10250T pushbutton
|
| Catalog Number |
10250T104
|
| UPC |
782113203300
|
| Product Length/Depth |
1.9 in
|
| Product Height |
2.2 in
|
| Product Width |
1.8 in
|
| Product Weight |
0.2 lb
|
| Compliances |
CE Marked
|
| Certifications |
UL Listed
CSA Certified |
| Product Type |
Pushbutton
|
PRODUCT SPECIFICATIONS
| Type |
Class I division 2
|
| Actuator color |
Yellow
|
| Bezel |
Chrome
|
| Actuator material |
Plastic
|
| Operating mode |
Momentary
|
| Illumination |
Non-illuminated
|
| Series |
10250T
|
| Mounting method |
Flush
|
| Rating |
NEMA 3
NEMA 4 NEMA 4X NEMA 13 NEMA 3R NEMA 12 |
| Degree of protection |
NEMA 4X
NEMA 3R NEMA 12 NEMA 13 NEMA 3 NEMA 4 |
| Product category |
Flush pushbutton
|
| Size |
30.5 mm
|
