Description
10250T122 - Eaton Cutler-Hammer - Push Button Parts and Accessories

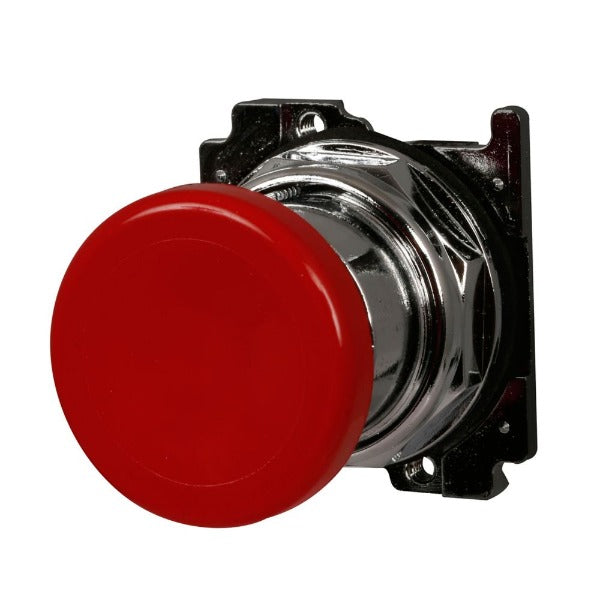

Eaton 10250T pushbutton, 10250T, 30.5 mm, Heavy-Duty, 40 mm, NEMA 3, 3R, 4, 4X, 12, 13, Non-illuminated, Momentary, Mushroom , Red actuator, Chrome bezel, Plastic actuator
GENERAL SPECIFICATIONS
| Product Name |
Eaton 10250T pushbutton
|
| Catalog Number |
10250T122
|
| UPC |
782113203362
|
| Product Length/Depth |
2 in
|
| Product Height |
2.2 in
|
| Product Width |
1.9 in
|
| Product Weight |
0.25 lb
|
| Compliances |
CE Marked
|
| Certifications |
UL Listed
CSA Certified |
PRODUCT SPECIFICATIONS
| Type |
Pushbutton
|
| Actuator color |
Red
|
| Bezel |
Chrome
|
| Bus material |
Zinc die cast
|
| Actuator material |
Plastic
|
| Actuator |
Mushroom
|
| Operating mode |
Momentary
|
| Contact configuration |
1 NO
|
| Illumination |
Non-illuminated
|
| Series |
10250T
|
| Rating |
NEMA 12
NEMA 4 NEMA 3 NEMA 4X NEMA 3R NEMA 13 |
| Degree of protection |
NEMA 13
NEMA 4 NEMA 12 NEMA 3 NEMA 4X NEMA 3R |
| Size |
40 mm
|
PRODUCT DATASHEET
