Description

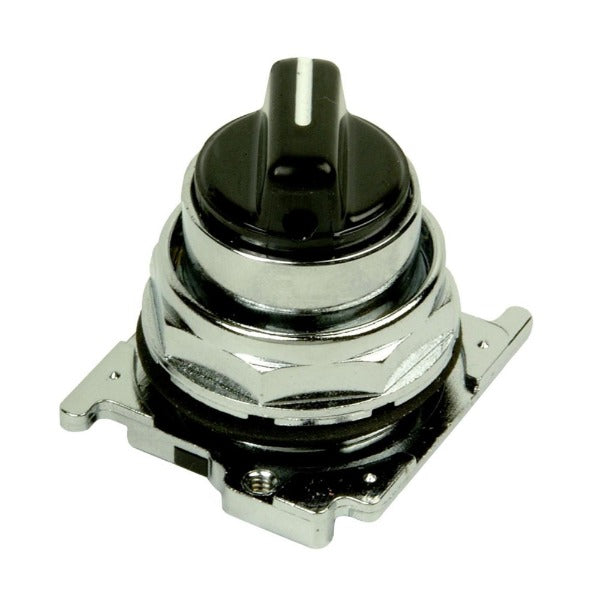

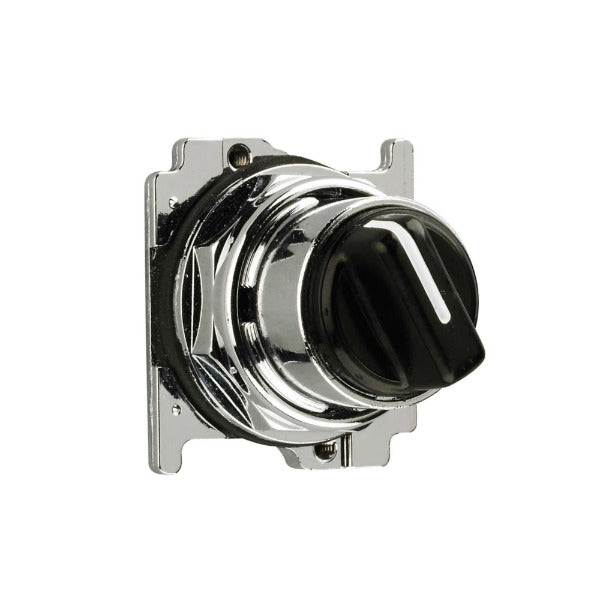

10250T1311 - Eaton Cutler-Hammer - Accessories Selector Switch Operator
Eaton 10250T pushbutton, Heavy-Duty Selector Switch Operator, 10250T, Cam 1, 60 deg throw, NEMA 3, 3R, 4, 4X, 12, 13, Non-illuminated, Two-position, Knob, Black actuator
GENERAL SPECIFICATIONS
| Product Name | Eaton 10250T pushbutton |
| Catalog Number | 10250T1311 |
| UPC | 782113219691 |
| Product Length/Depth | 1.9 in |
| Product Height | 2.2 in |
| Product Width | 1.9 in |
| Product Weight | 0.25 lb |
| Compliances | CE Marked |
| Certifications | CSA Certified UL Listed |
PRODUCT SPECIFICATIONS
| Type | 30.5 mm, Heavy-Duty |
| Actuator color | Black |
| Cam code | Cam 1 |
| Product Category | Selector switch |
| Actuator | Knob |
| Illumination | Non-illuminated |
| NEMA rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Series | 10250T |
| Number of positions | 2 |
| Size | 30.5 mm |
| Throw type | 60 deg |
PRODUCT DATASHEET
