Description

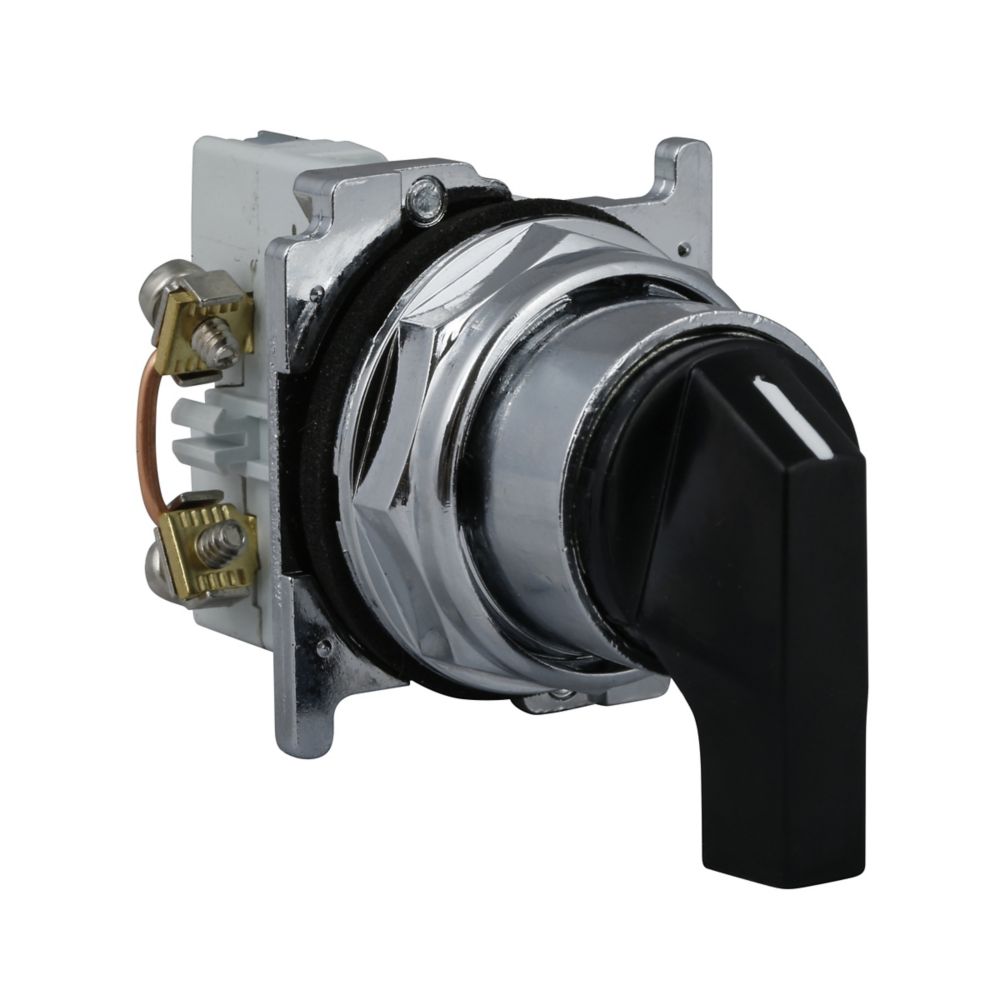

10250T21LB - Eaton - Cutler Hammer - Pushbutton
Eaton 10250T pushbutton, Heavy-Duty Assembled Selector Switch, 10250T, 60 deg throw, NEMA 3, 3R, 4, 4X, 12, 13, Non-illuminated, Three-position, Lever, Black actuator, 2NO
GENERAL SPECIFICATIONS
| Product Name | Eaton 10250T pushbutton |
| Catalog Number | 10250T21LB |
| UPC | 782113357485 |
| Product Length/Depth | 3.4 in |
| Product Height | 2 in |
| Product Width | 2.4 in |
| Product Weight | 0.35 lb |
| Compliances | CE Marked |
| Certifications | CSA Certified UL Listed |
| Product Type | Pushbutton |
PRODUCT SPECIFICATIONS
| Type | 30.5 mm, Heavy-Duty |
| Actuator color | Black |
| Actuator | Lever |
| Contact configuration | 2 NO |
| Illumination | Non-illuminated |
| NEMA rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Series | 10250T |
| Number of positions | 3 |
| Size | 30.5 mm |
| Throw type | 60 deg |
PRODUCT DATASHEET
