Description

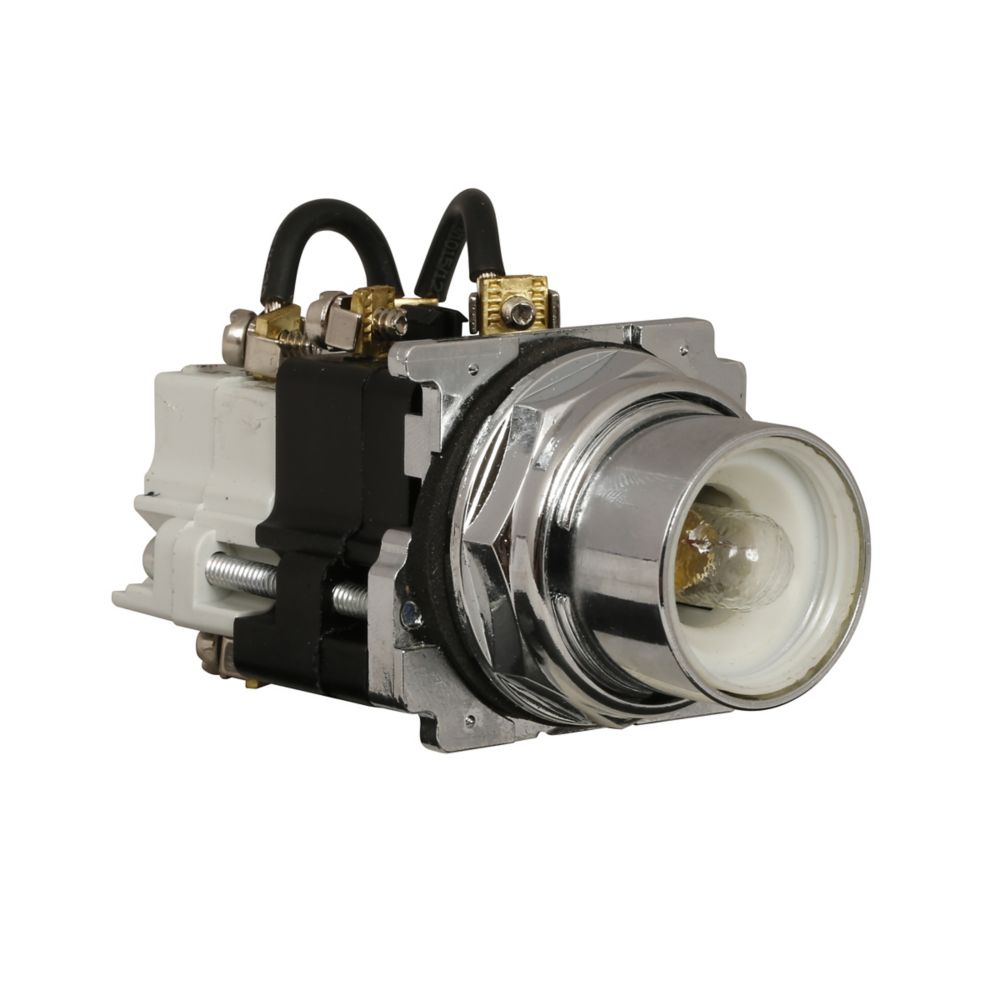

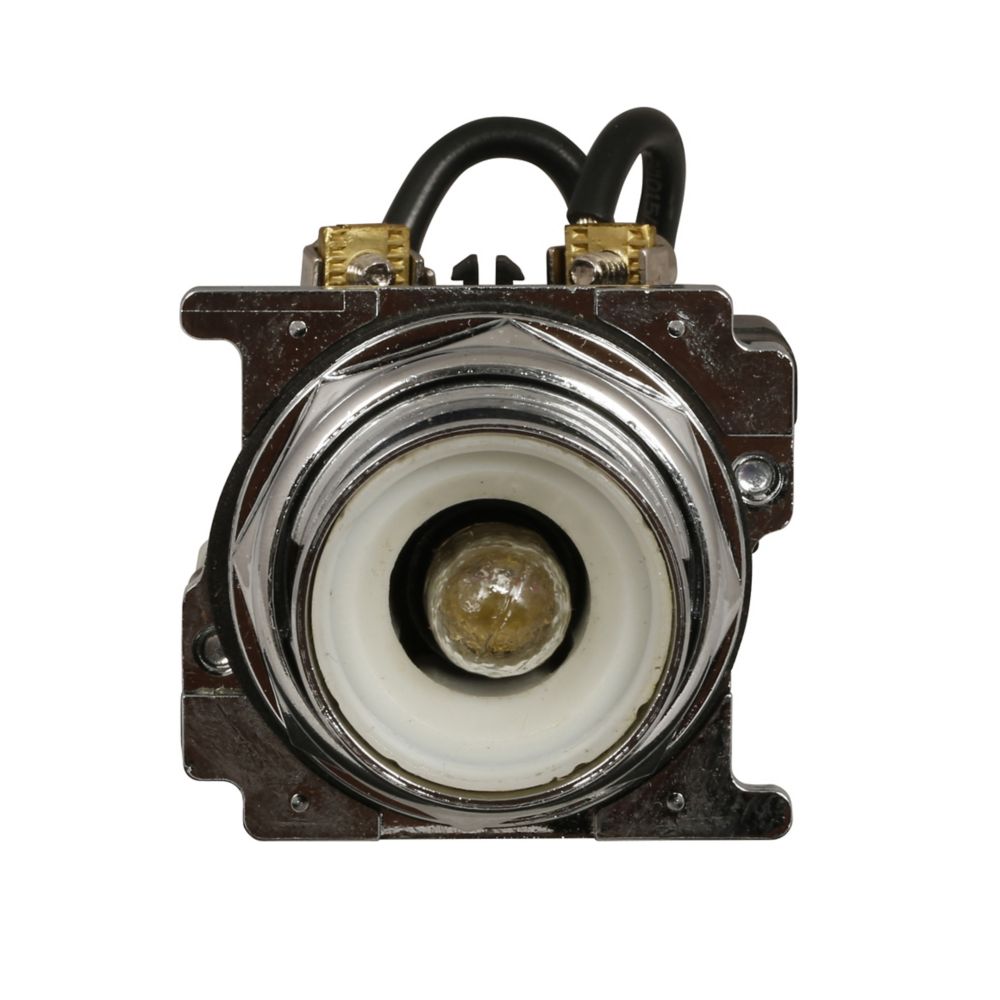

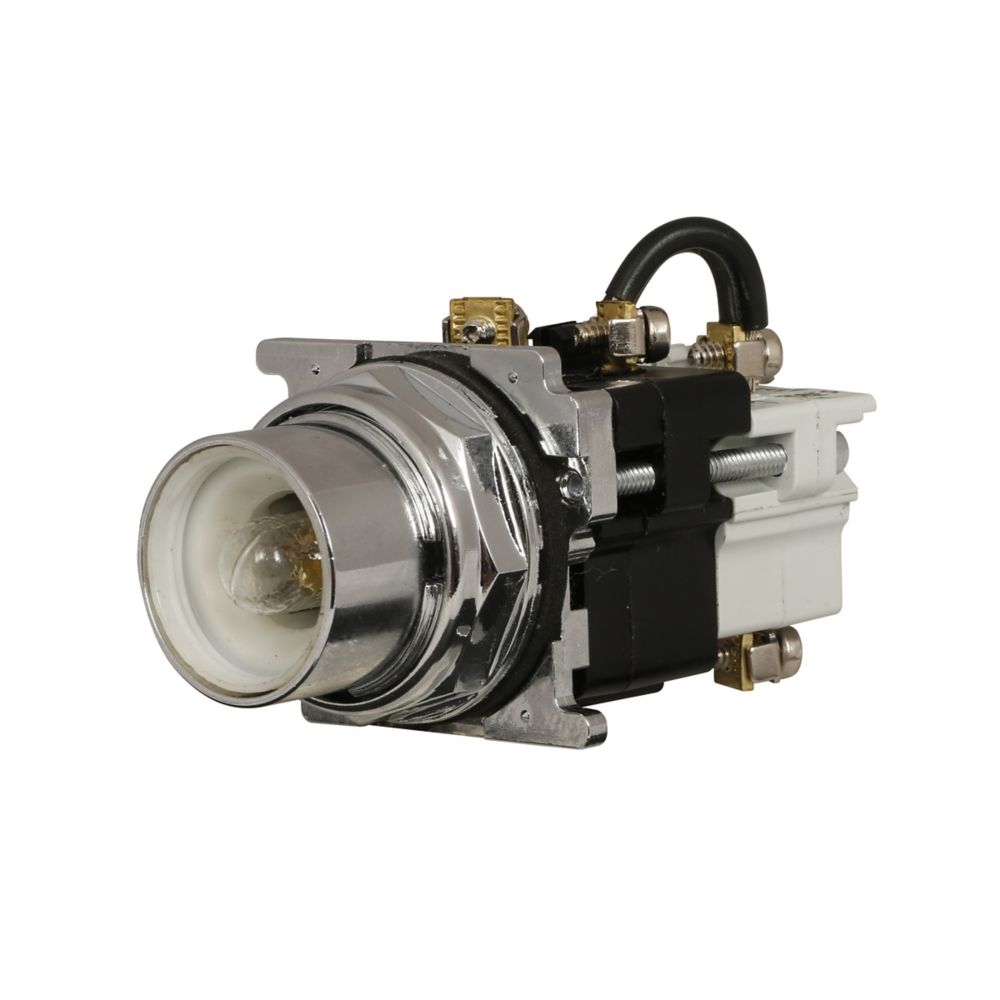

10250T221N - Eaton - Cutler Hammer - Push Button
Eaton 10250T pushbutton, Heavy-duty watertight and oiltight Indicating Light, PresTest, Incandescent, Transformer, NEMA 3, 3R, 4, 4X, 12, 13, 120 V, 30.5 mm
GENERAL SPECIFICATIONS
| Product Name | Eaton 10250T pushbutton |
| Catalog Number | 10250T221N |
| UPC | 782113772523 |
| Product Length/Depth | 3.5 in |
| Product Height | 2 in |
| Product Width | 2.5 in |
| Product Weight | 0.3 lb |
| Compliances | CE Marked |
| Certifications | UL Listed CSA Certified |
| Product Type | Pushbutton |
PRODUCT SPECIFICATIONS
| Type | Heavy-Duty Watertight/Oiltight |
| Light unit type | Incandescent, transformer |
| Light unit voltage | 120 Vac |
| Series | 10250T |
| Actuator | PresTest |
| Style | 30.5 mm |
| Rating | NEMA 12 NEMA 4X NEMA 3 NEMA 3R NEMA 4 NEMA 13 |
