Description

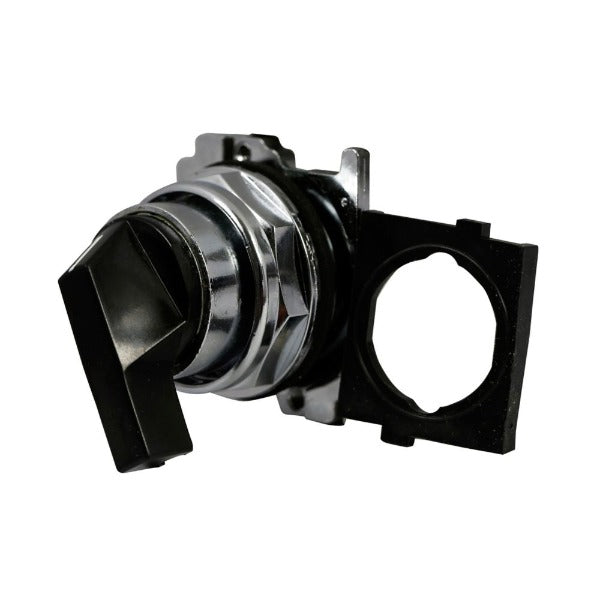

10250T3011 - Eaton Cutler-Hammer - Accessories Selector Switch Operator
Eaton 10250T pushbutton, Heavy-Duty Selector Switch Operator, Cam 1, 60 deg throw, NEMA 3, 3R, 4, 4X, 12, 13, Non-illuminated, Two-position, Lever, Black actuator
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton 10250T pushbutton |
| CATALOG NUMBER | 10250T3011 |
| UPC | 782113226873 |
| PRODUCT LENGTH/DEPTH | 1.9 in |
| PRODUCT HEIGHT | 2.3 in |
| PRODUCT WIDTH | 1.9 in |
| PRODUCT WEIGHT | .2 lb |
| COMPLIANCES | CE Marked |
| CERTIFICATIONS | UL Listed CSA Certified |
PRODUCT SPECIFICATIONS
| THROW TYPE | 60 deg |
| SERIES | 10250T |
| NUMBER OF POSITIONS | 2 |
| TYPE | 30.5 mm, Heavy-Duty |
| ACTUATOR COLOR | Black |
| NEMA RATING | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| RATING | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| ILLUMINATION | Non-illuminated |
| SIZE | 30.5 mm |
| CAM CODE | Cam 1 |
| ACTUATOR | Lever |
PRODUCT DATASHEET
