Description

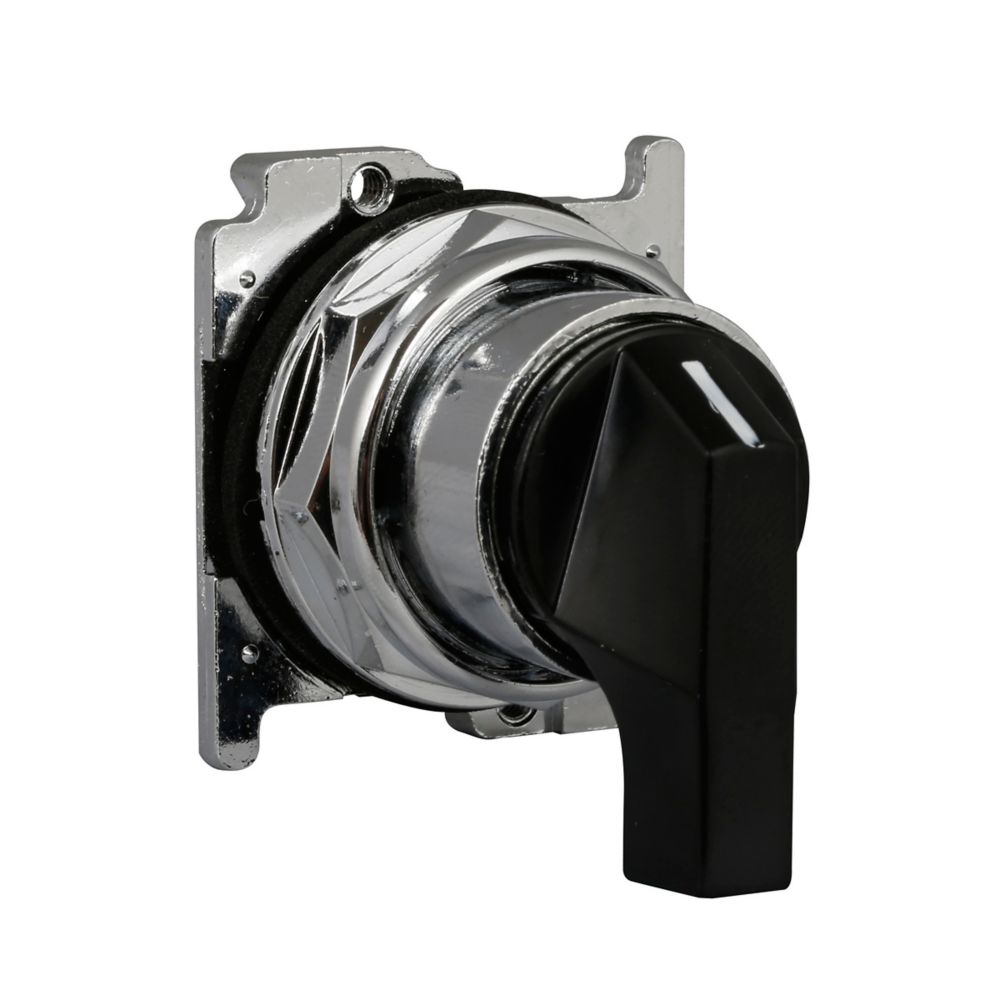

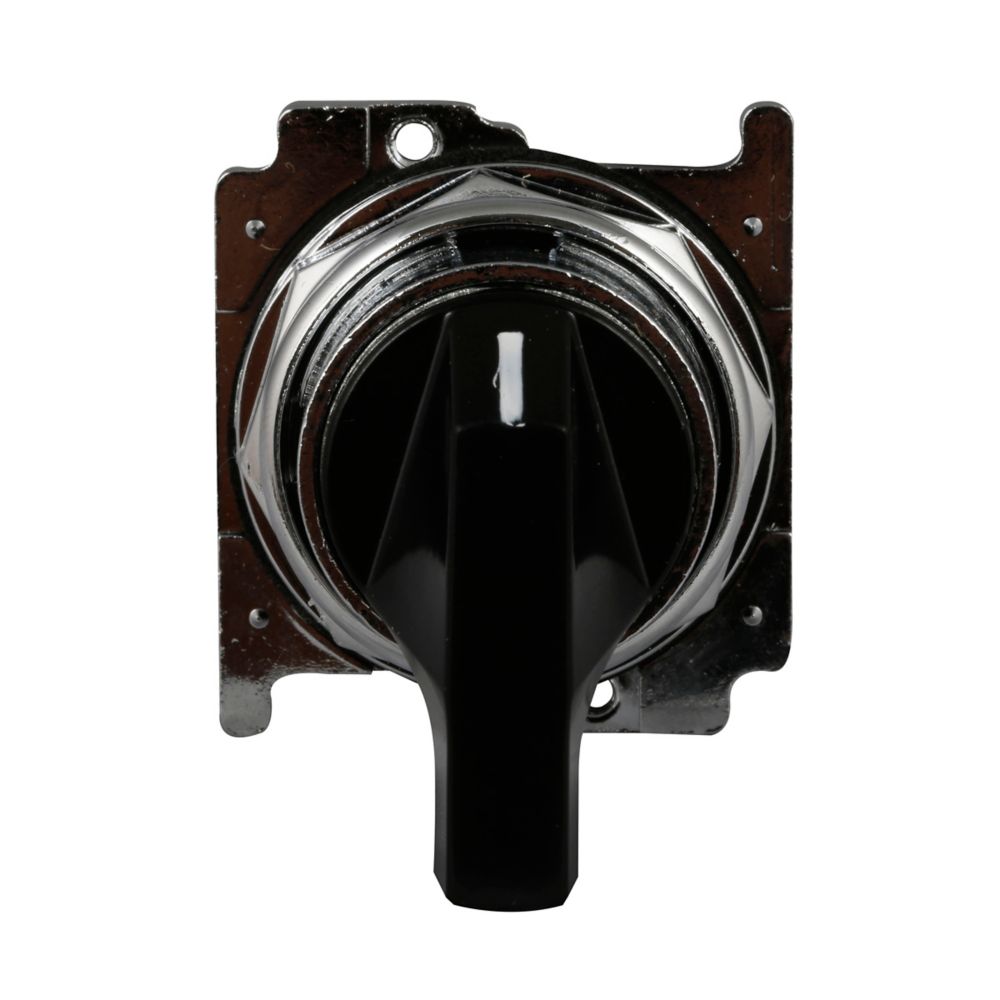

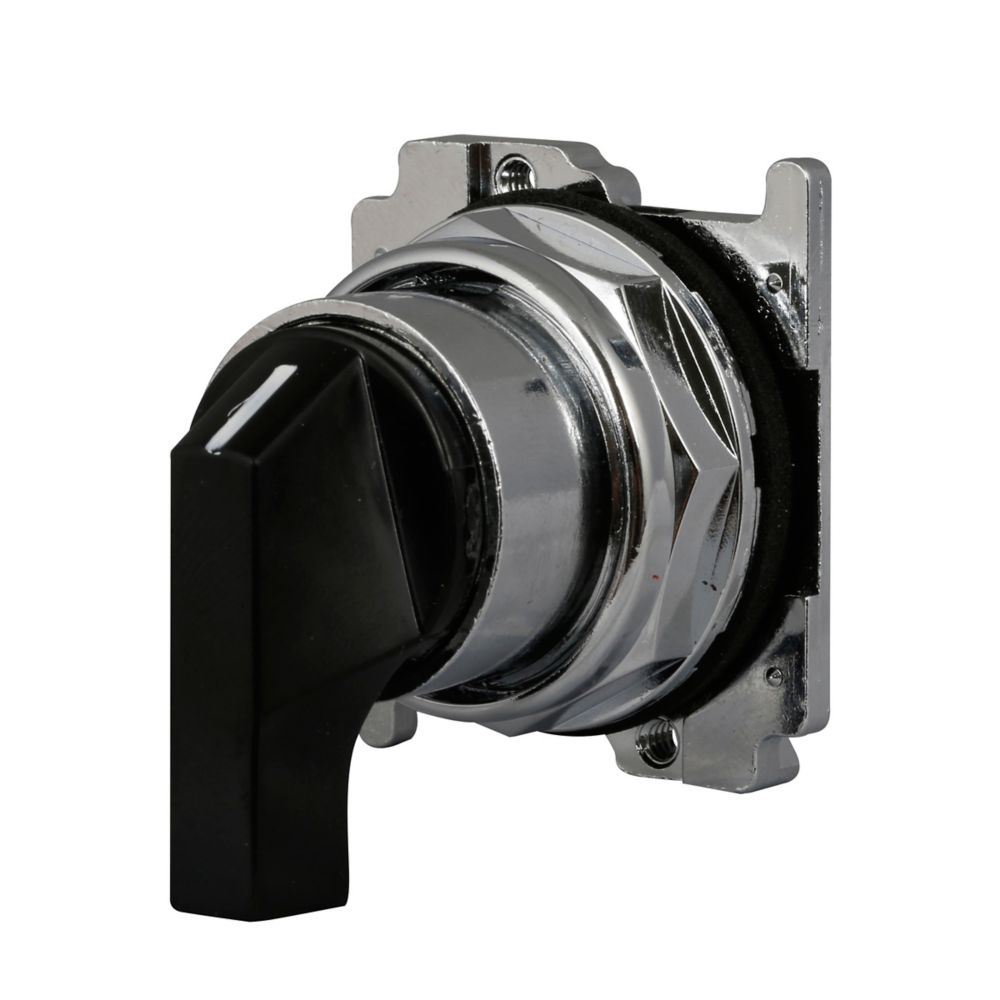

10250T3033 - Eaton Cutler-Hammer - 30.5mm Three-Position Heavy-Duty Pushbutton
Eaton 10250T pushbutton, 10250T, 30.5 mm, Heavy-Duty, Cam 3, 60 deg throw, NEMA 3, 3R, 4, 4X, 12, 13, Non-illuminated, Three-position, Black actuator, Lever.
GENERAL SPECIFICATIONS
| Product Name | Eaton 10250T pushbutton |
| Catalog Number | 10250T3033 |
| UPC | 782113226941 |
| Product Length/Depth | 2 in |
| Product Height | 2.2 in |
| Product Width | 1.9 in |
| Product Weight | 0.2 lb |
| Compliances | CE Marked |
| Certifications | UL Listed CSA Certified |
| Product Type | Pushbutton |
PRODUCT SPECIFICATIONS
| Type | 30.5 mm, Heavy-Duty |
| Actuator color | Black |
| Cam code | Cam 3 |
| Actuator | Lever |
| Illumination | Non-illuminated |
| Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Series | 10250T |
| Number of positions | 3 |
| Throw type | 60 deg |
PRODUCT DATASHEET
