Description

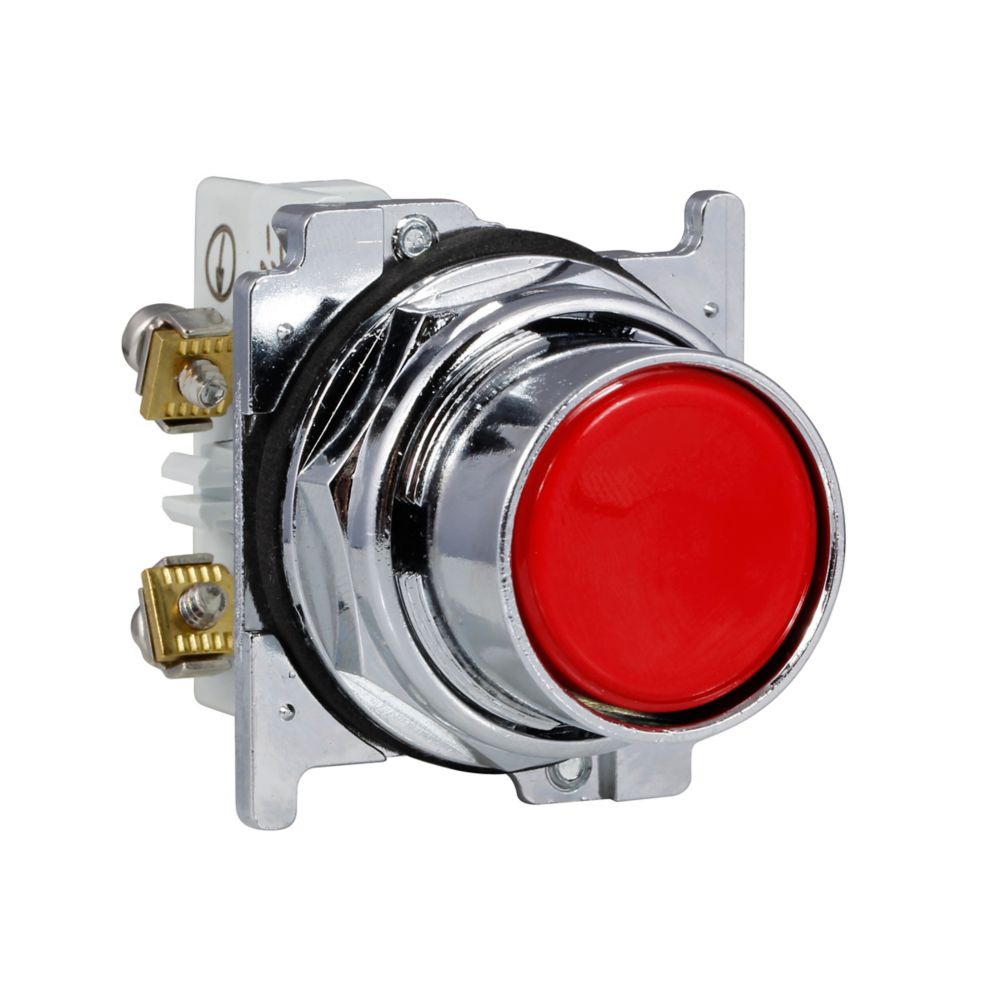

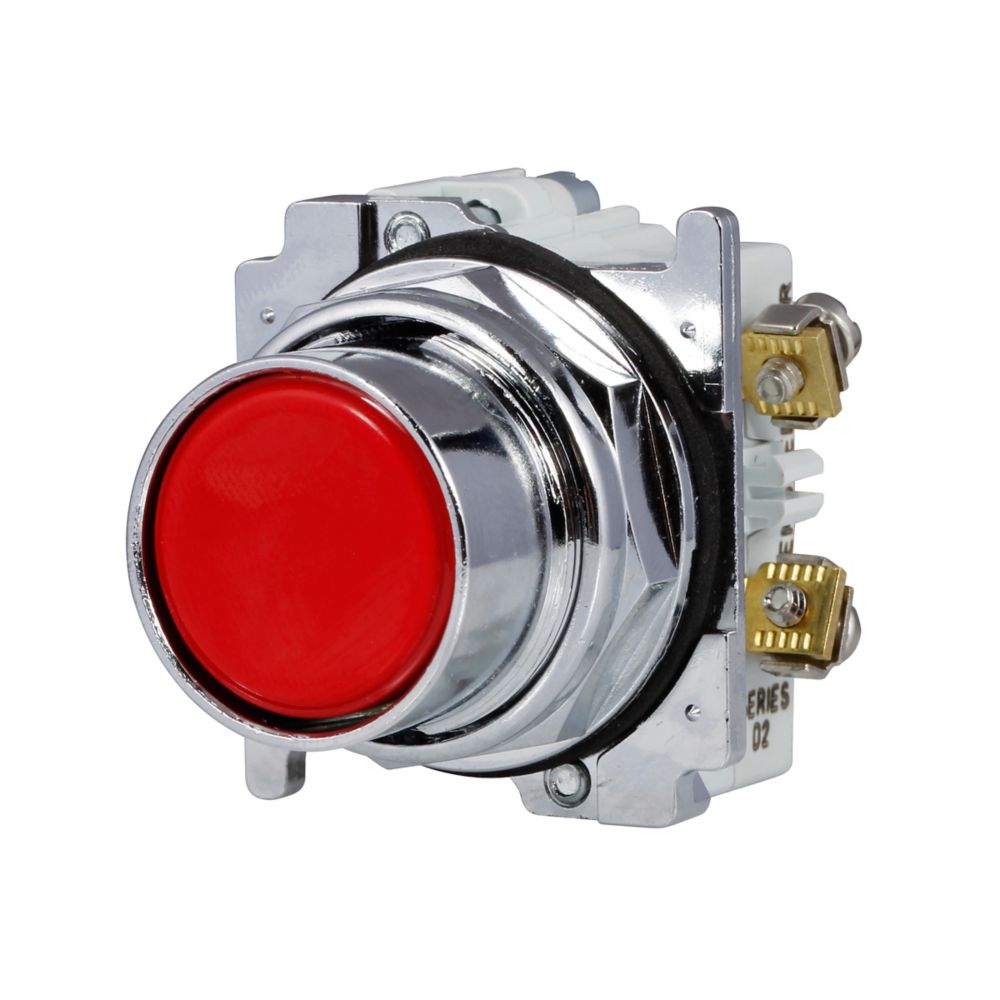

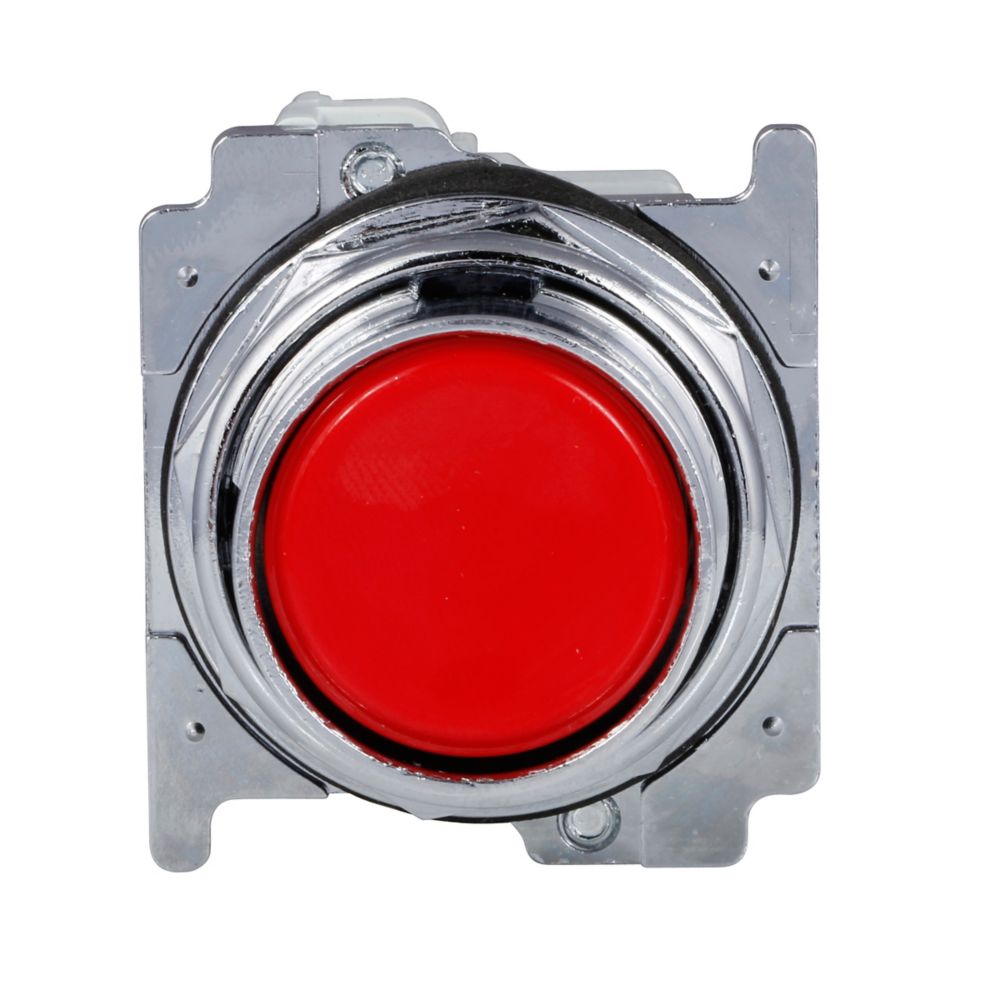

10250T30R - Eaton Cutler-Hammer - 30.5mm Heavy-Duty Watertight/Oiltight Pushbutton
Eaton, 30.5 mm, Heavy-Duty Watertight/Oiltight Pushbutton,Class I Division 2,Red,Plastic Actuator,Chrome bezel,1NO - 1NC,Non-illuminated,Flush mounting,Momentary,30.5 mm,Flush Pushbutton,10250T Series.
GENERAL SPECIFICATIONS
| Product Name | Eaton 10250T pushbutton |
| Catalog Number | 10250T30R |
| UPC | 782113107530 |
| Product Length/Depth | 2.4 in |
| Product Height | 3.5 in |
| Product Width | 2.1 in |
| Product Weight | 0.3 lb |
| Compliances | CE Marked |
| Certifications | CSA Certified UL Listed |
| Product Type | Pushbutton |
PRODUCT SPECIFICATIONS
| Type | Class I division 2 |
| Actuator color | Red |
| Bezel | Chrome |
| Actuator material | Plastic |
| Operating mode | Momentary |
| Contact configuration | 1 NO-1 NC |
| Illumination | Non-illuminated |
| Series | 10250T |
| Mounting method | Flush |
| Rating | NEMA 3R NEMA 12 NEMA 4X NEMA 13 NEMA 4 NEMA 3 |
| Degree of protection | NEMA 3R NEMA 4 NEMA 12 NEMA 3 NEMA 4X NEMA 13 |
| Product category | Flush pushbutton |
| Size | 30.5 mm |
