Description

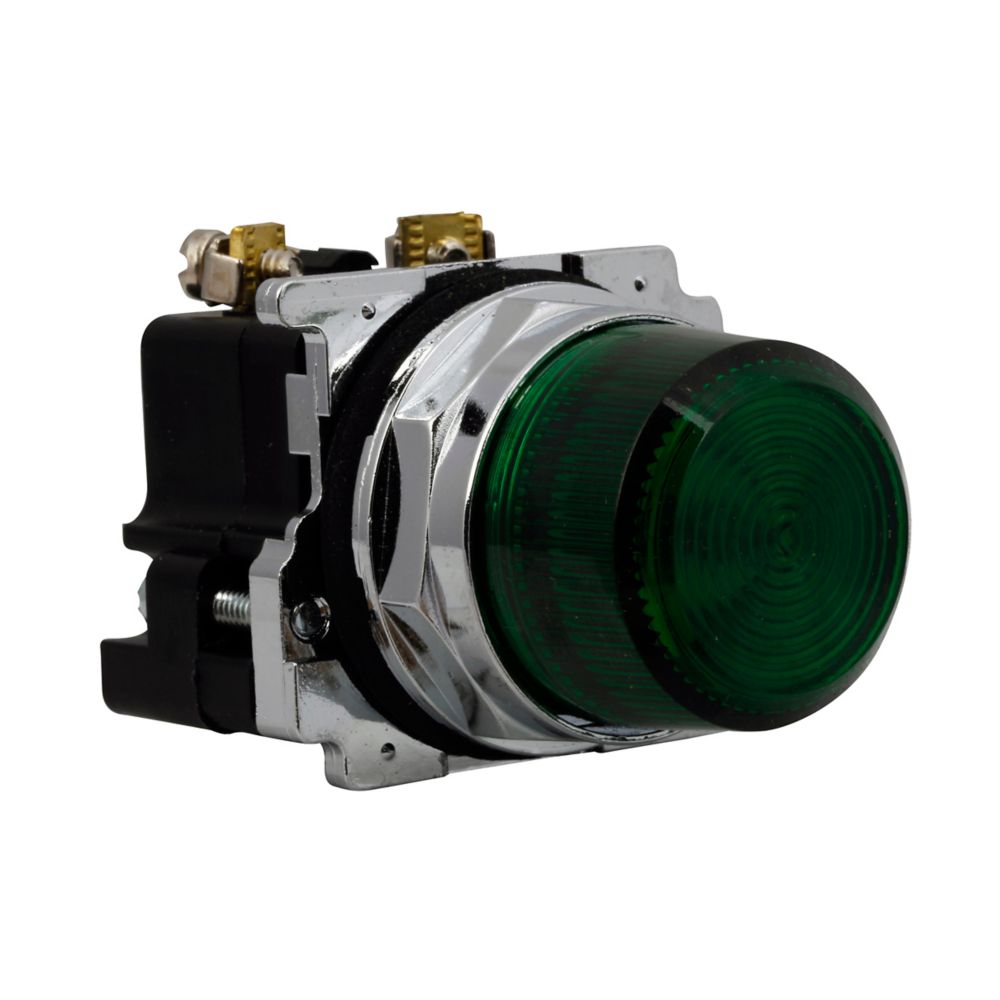

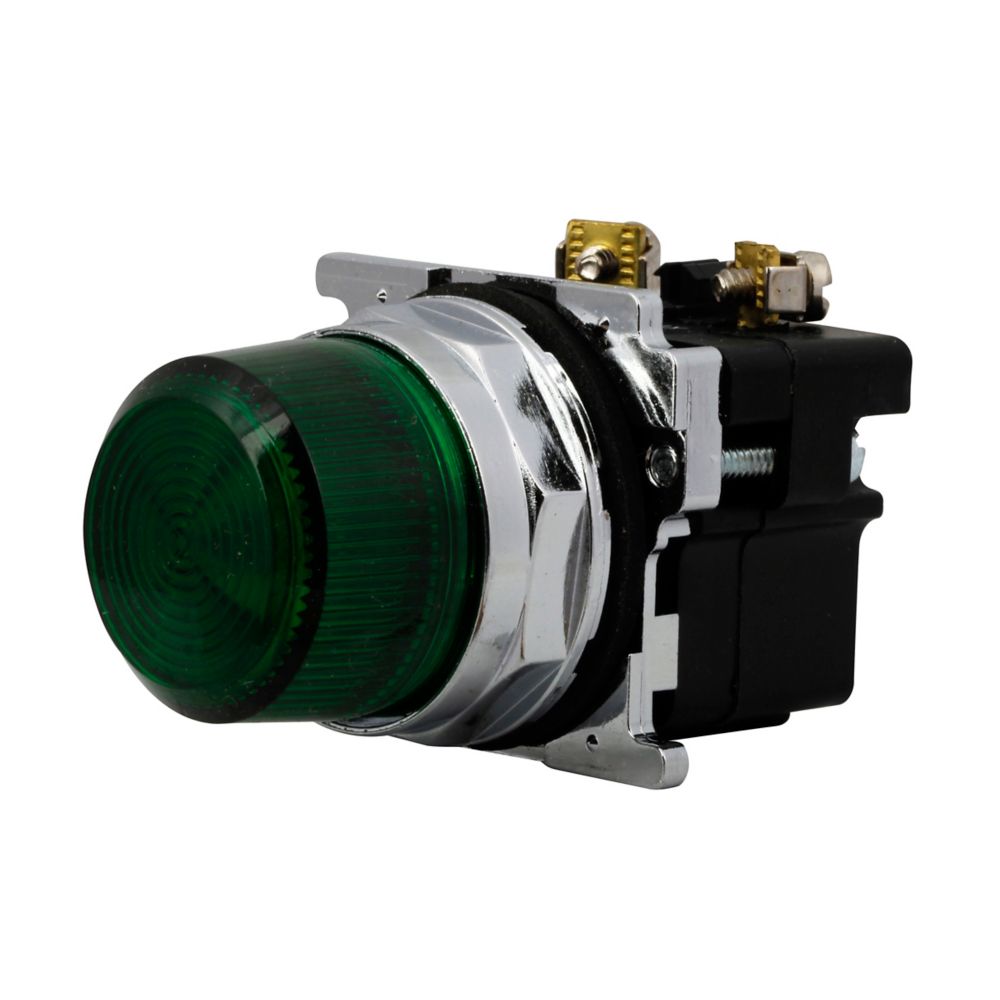

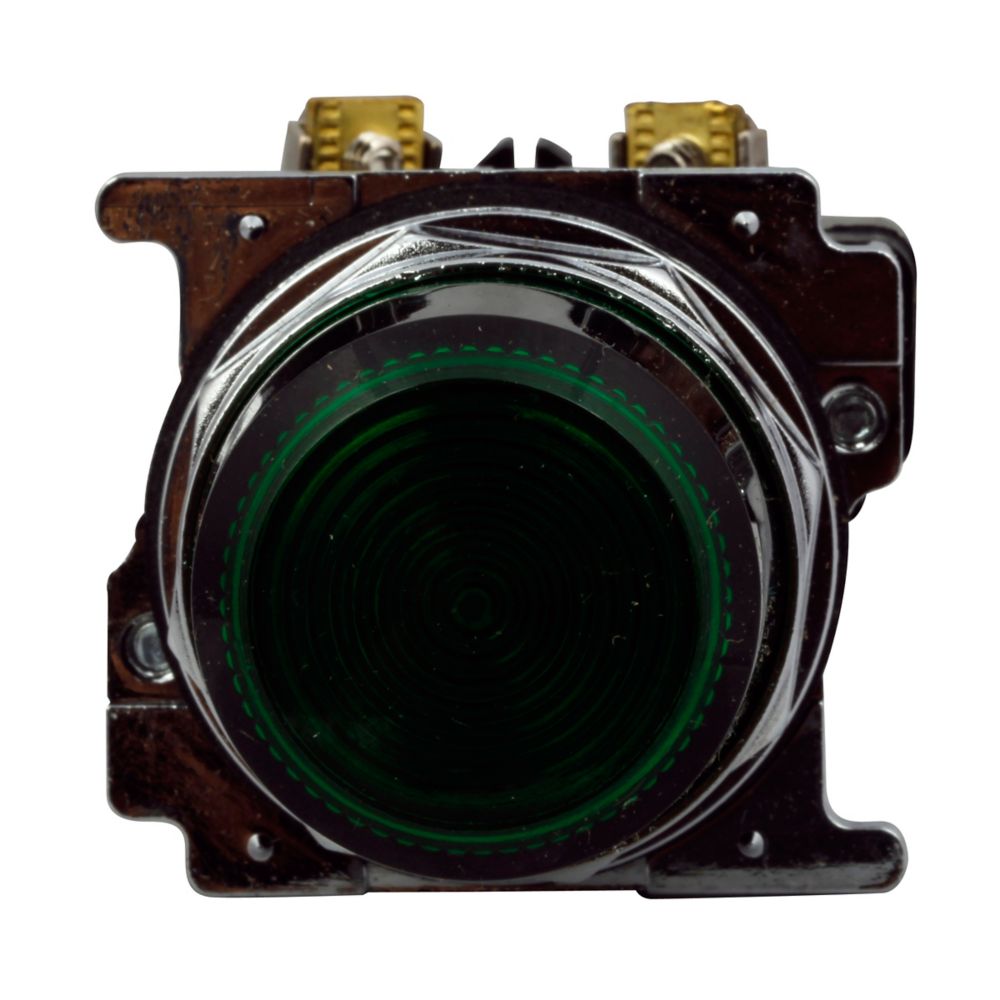

10250T34G - Eaton Cutler-Hammer - 120 Volt Push Button
Eaton 10250T pushbutton, Heavy-duty watertight and oiltight Indicating Light, Standard actuator, Incandescent, Transformer, NEMA 3, 3R, 4, 4X, 12, 13, Plastic, Green, 120 V
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton 10250T pushbutton |
| CATALOG NUMBER | 10250T34G |
| UPC | 782113358390 |
| PRODUCT LENGTH/DEPTH | 2.4 in |
| PRODUCT HEIGHT | 3.4 in |
| PRODUCT WIDTH | 2.1 in |
| PRODUCT WEIGHT | .3 lb |
| COMPLIANCES | CE Marked |
| CERTIFICATIONS | UL Listed CSA Certified |
PRODUCT SPECIFICATIONS
| LIGHT UNIT TYPE | Incandescent, transformer |
| SERIES | 10250T |
| TYPE | Heavy-Duty Watertight/Oiltight |
| LIGHT UNIT VOLTAGE | 120 Vac |
| RATING | NEMA 12 NEMA 3 NEMA 3R NEMA 4X NEMA 13 NEMA 4 |
| LENS MATERIAL | Plastic |
| STYLE | 30.5 mm |
| LENS COLOR | Green |
| ACTUATOR | Standard |
PRODUCT DATASHEET
