Description

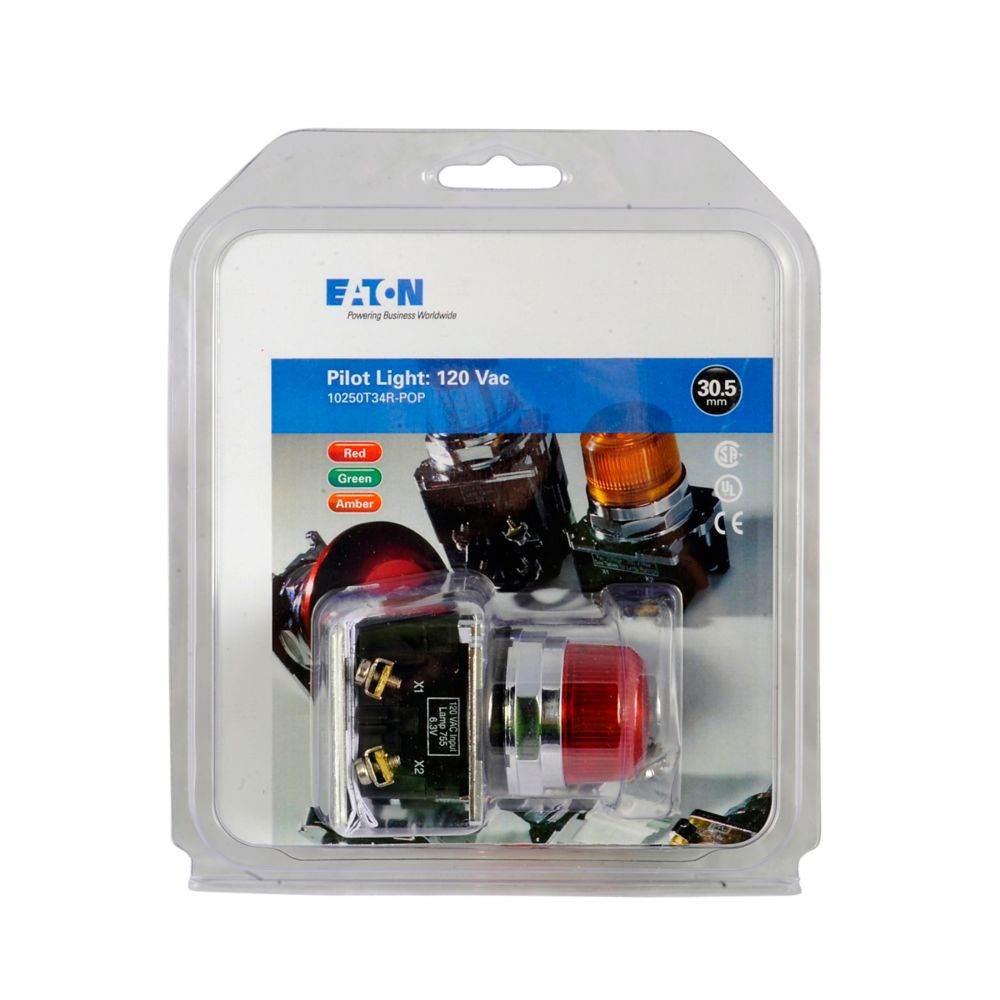

10250T34R - Eaton Cutler-Hammer - 120V Heavy-Duty Watertight/Oiltight Indicating Light Pushbutton
Eaton 10250T pushbutton, Heavy-duty watertight and oiltight Indicating Light, Standard actuator, Incandescent, Transformer, NEMA 3, 3R, 4, 4X, 12, 13, Red, Plastic, 120 V
GENERAL SPECIFICATIONS
| Product Name |
Eaton 10250T pushbutton
|
| Catalog Number |
10250T34R
|
| Product Length/Depth |
2.4 in
|
| Product Height |
3.2 in
|
| Product Width |
2.1 in
|
| Product Weight |
0.3 lb
|
| Compliances |
CE Marked
|
| Certifications |
CSA Certified
UL Listed |
| Product Type |
Pushbutton
|
PRODUCT SPECIFICATIONS
| Type |
Heavy-Duty Watertight/Oiltight
|
| Light unit type |
Incandescent, transformer
|
| Lens material |
Plastic
|
| Light unit voltage |
120 Vac
|
| Series |
10250T
|
| Actuator |
Standard
|
| Style |
30.5 mm
|
| Lens color |
Red
|
| Rating |
NEMA 3R
NEMA 4X NEMA 3 NEMA 4 NEMA 12 NEMA 13 |
