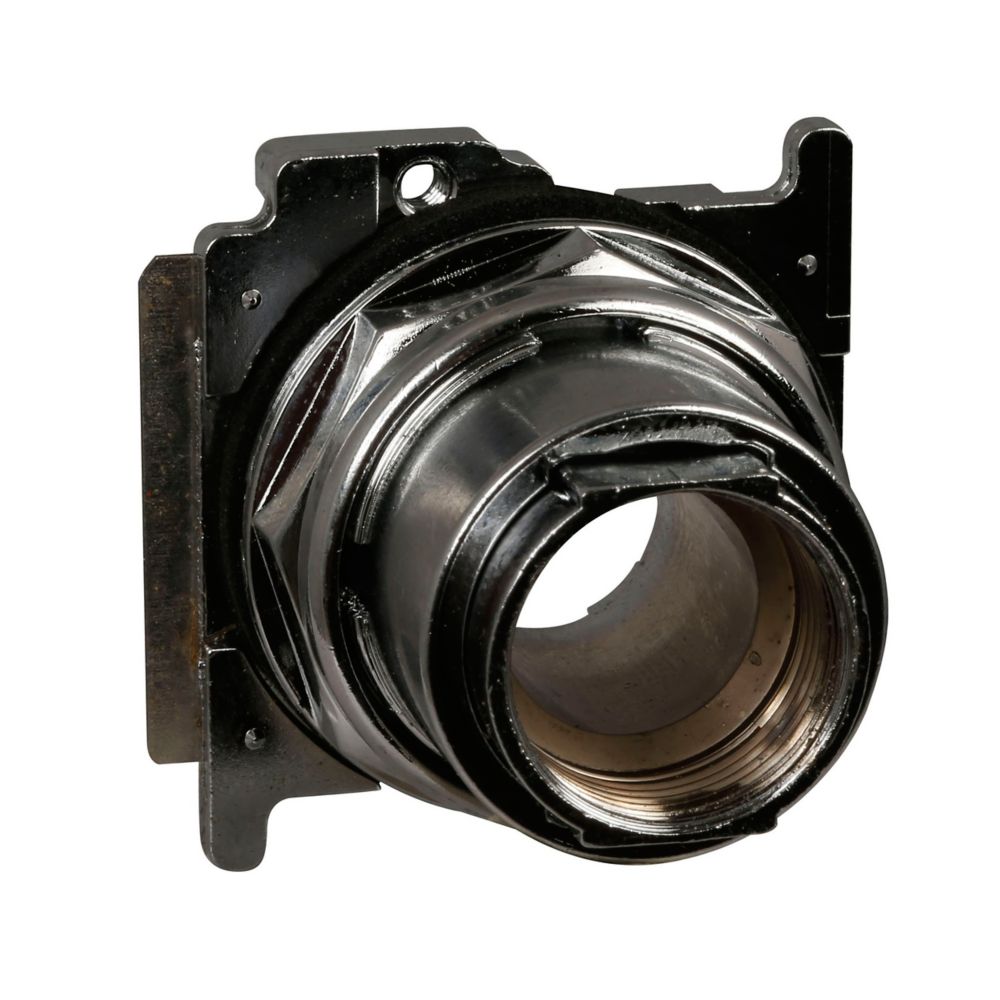

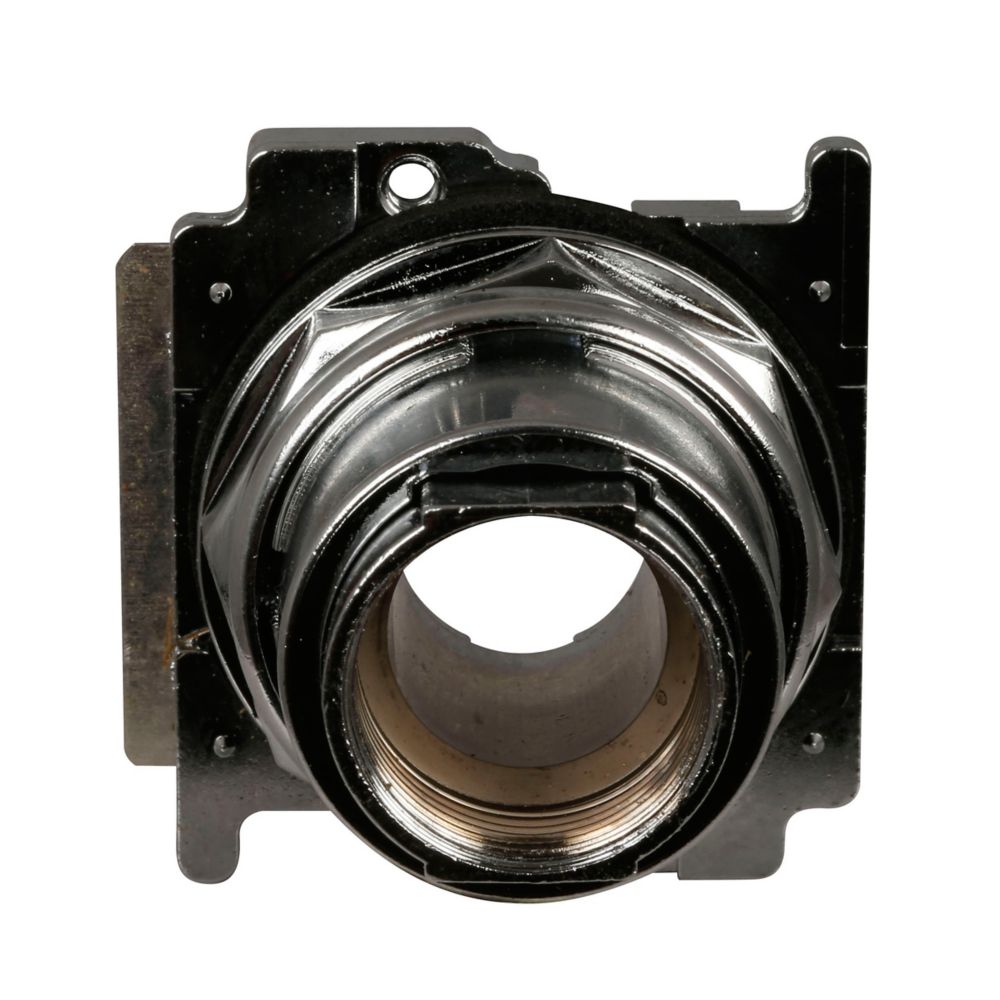

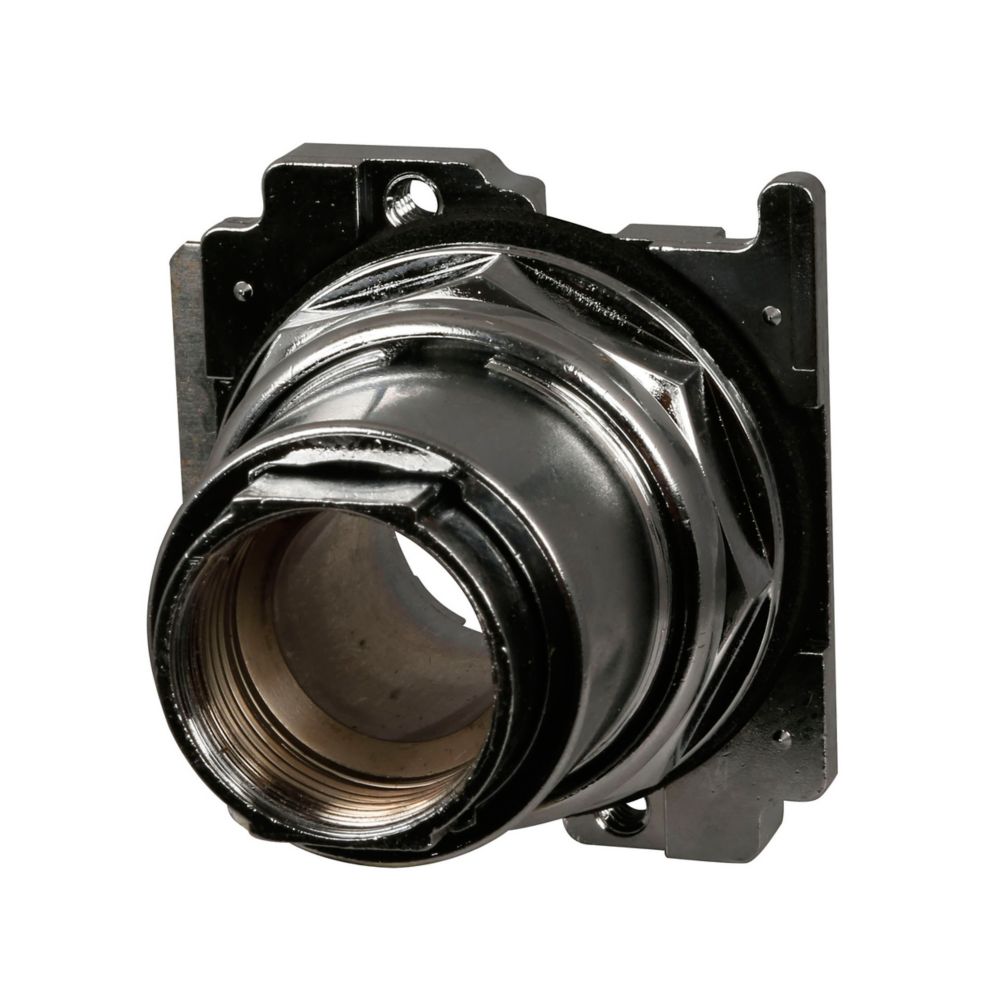

10250T4 - Eaton - Cutler-Hammer - 30.5mm Three-Position Heavy-Duty Watertight/Oiltight Pushbutton
Eaton 30.5 mm Heavy-Duty Watertight/Oiltight Push-Pull Unit,Class I Division 2,Standard Actuator,Non-illuminated,Three-position,Momentary push and pull,10250T Series.
GENERAL SPECIFICATIONS
| Product Name | Eaton 10250T pushbutton |
| Catalog Number | 10250T4 |
| UPC | 782113300542 |
| Product Length/Depth | 1.9 in |
| Product Height | 2.3 in |
| Product Width | 1.9 in |
| Product Weight | 0.25 lb |
| Compliances | CE Marked |
| Certifications | CSA Certified UL Listed |
| Product Type | Pushbutton |
PRODUCT SPECIFICATIONS
| Type | Class I Division 2 |
| Actuator | Standard |
| Operating mode | Pull: momentary Push: momentary |
| Illumination | Non-illuminated |
| Series | 10250T |
| Number of positions | 3 |
| Rating | NEMA 4X NEMA 4 NEMA 3 NEMA 3R NEC Class I Division 2, Groups B, C and D NEMA 12 NEMA 13 |
