Description

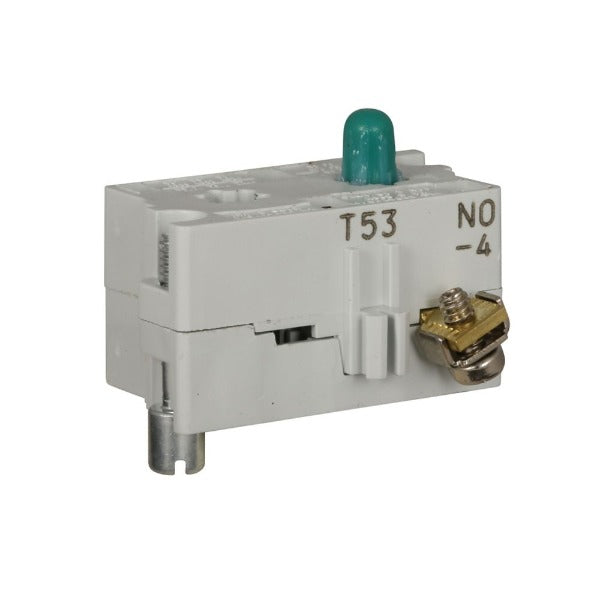

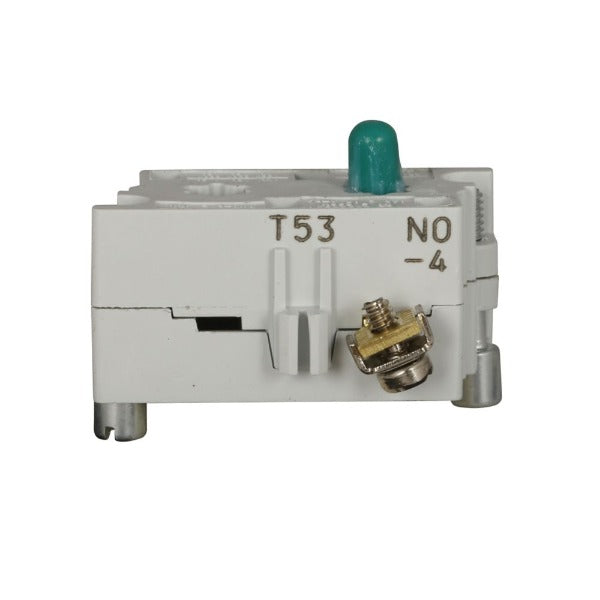

10250T53 - Eaton Cutler-Hammer - Push Button
Eaton 10250T pushbutton contact block, 10250T series, Standard Contact Blocks, 1NO, Pressure terminal
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton 10250T pushbutton contact block |
| CATALOG NUMBER | 10250T53 |
| UPC | 782113203508 |
| PRODUCT LENGTH/DEPTH | 1.9 in |
| PRODUCT HEIGHT | 2.1 in |
| PRODUCT WIDTH | 1.3 in |
| PRODUCT WEIGHT | .05 lb |
| COMPLIANCES | CE Marked |
| CERTIFICATIONS | UL Listed CSA Certified |
| CATALOG NOTES | Stack up to 6 blocks (6 circuits) unless otherwise noted |
PRODUCT SPECIFICATIONS
| CONTACT CONFIGURATION | 1 NO (standard) |
| SERIES | 10250T |
| TYPE | 30.5 mm, Heavy-Duty |
| TERMINALS | Pressure |
