Description

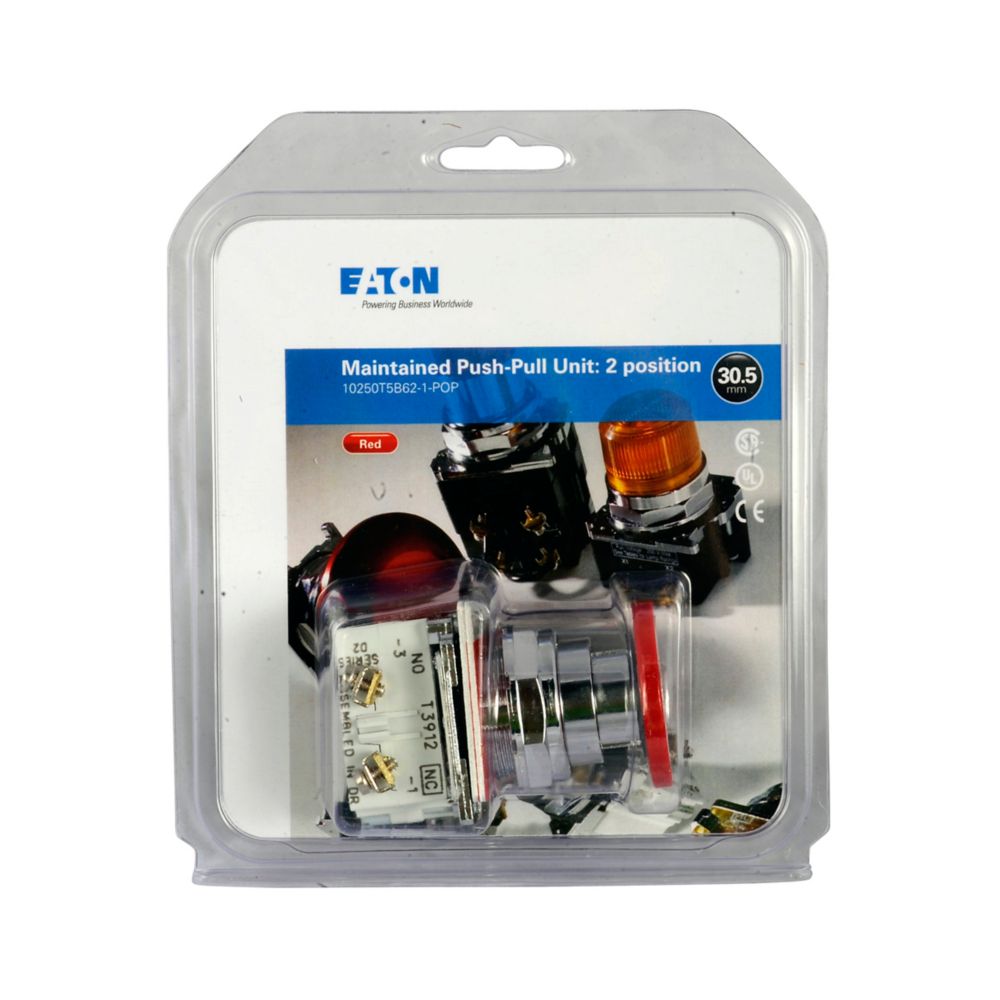

10250T5B62 - Eaton - Cutler-Hammer - 30.5mm Two-Position Heavy-Duty Watertight/Oiltight Push-Pull Unit
Eaton 30.5 mm Heavy-Duty Watertight/Oiltight Push-Pull Unit,Class I Division 2,Standard Actuator (button),Red,Plastic Bus,Non-illuminated,Two-position,Maintained push and pull,40 mm button,10250T Series.
GENERAL SPECIFICATIONS
| Product Name |
Eaton 10250T pushbutton
|
| Catalog Number |
10250T5B62
|
| UPC |
782113740355
|
| Product Length/Depth |
2.4 in
|
| Product Height |
3.2 in
|
| Product Width |
2.1 in
|
| Product Weight |
0.4 lb
|
| Compliances |
CE Marked
|
| Certifications |
CSA Certified
UL Listed |
| Product Type |
Pushbutton
|
PRODUCT SPECIFICATIONS
| Type |
Class I Division 2
|
| Actuator color |
Red
|
| Bus material |
Plastic
|
| Actuator |
Standard
|
| Operating mode |
Push: maintained
Pull: maintained |
| Illumination |
Non-illuminated
|
| Series |
10250T
|
| Number of positions |
2
|
| Rating |
NEMA 12
NEMA 3 NEMA 4 NEMA 13 NEMA 3R NEMA 4X NEC Class I Division 2, Groups B, C and D |
| Size |
40 mm
|
