Description

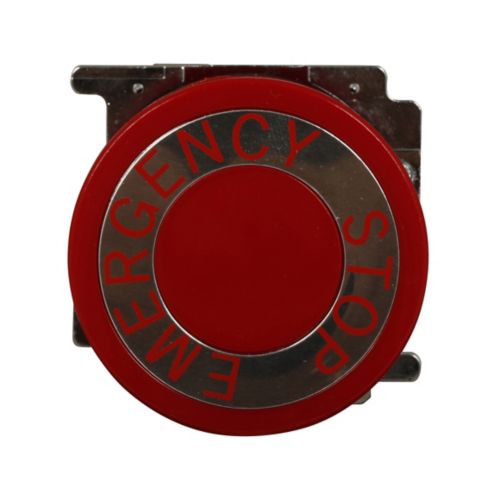

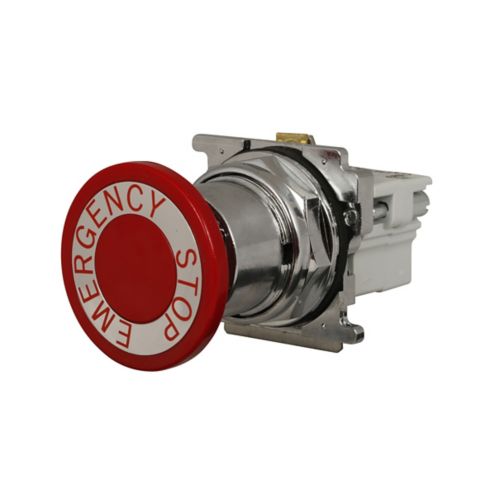

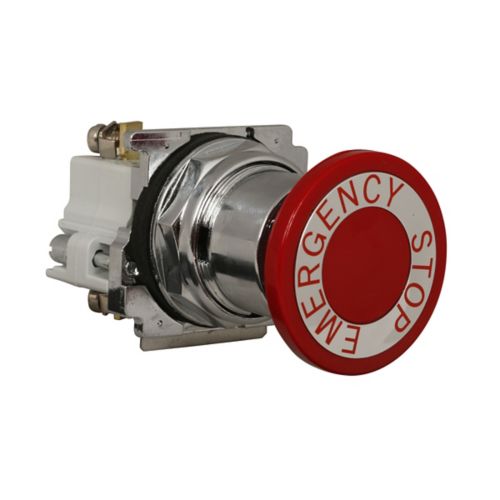

10250T5B631X - Eaton - 40 Mm Non-Illuminated Maintained Push And Pull Pushbutton
Eaton 10250T pushbutton, 10250T, 30.5 mm, Heavy-Duty, 40 mm, NEMA 3, 3R, 4, 4X, 12, 13, Non-illuminated, Two-position, Maintained push and pull, Standard, Red actuator, Plastic bus, Emergency stop, 1NO-1NC
GENERAL SPECIFICATIONS
| Product Name | Eaton 10250T pushbutton |
| Catalog Number | 10250T5B63-1X |
| UPC | 782113752525 |
| Product Length/Depth | 3 in |
| Product Height | 2 in |
| Product Width | 2 in |
| Product Weight | 0.25 lb |
| Compliances | CE Marked |
| Certifications | CSA Certified UL Listed |
| Catalog Notes | Assembled at Factory |
| Product Type | Pushbutton |
PRODUCT SPECIFICATIONS
| Type | 30.5 mm, Heavy-Duty |
| Actuator color | Red |
| Bus material | Plastic |
| Actuator | Standard |
| Operating mode | Pull: maintained Push: maintained |
| Contact configuration | 1 NO-1 NC |
| Illumination | Non-illuminated |
| Series | 10250T |
| Legend | EMERGENCY STOP |
| Number of positions | 2 |
| Rating | NEMA 4X NEMA 3R NEMA 3 NEMA 12 NEMA 13 NEMA 4 |
| Size | 40 mm |
