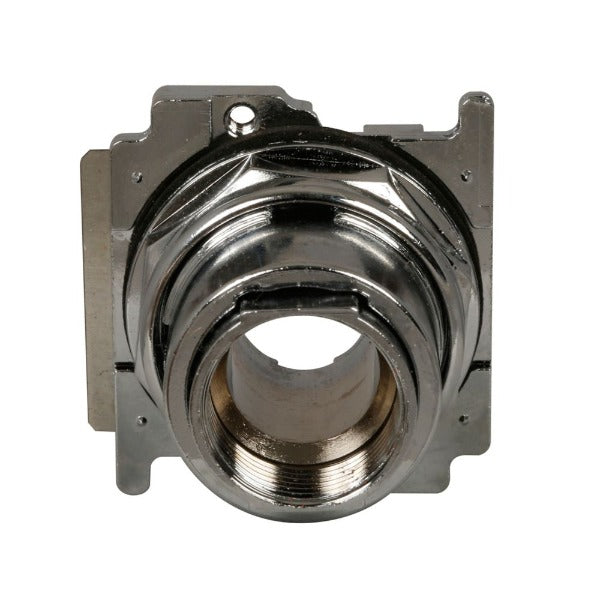

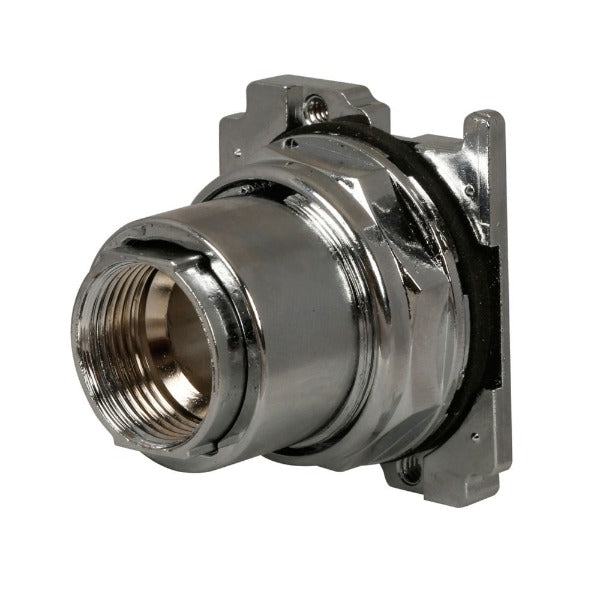

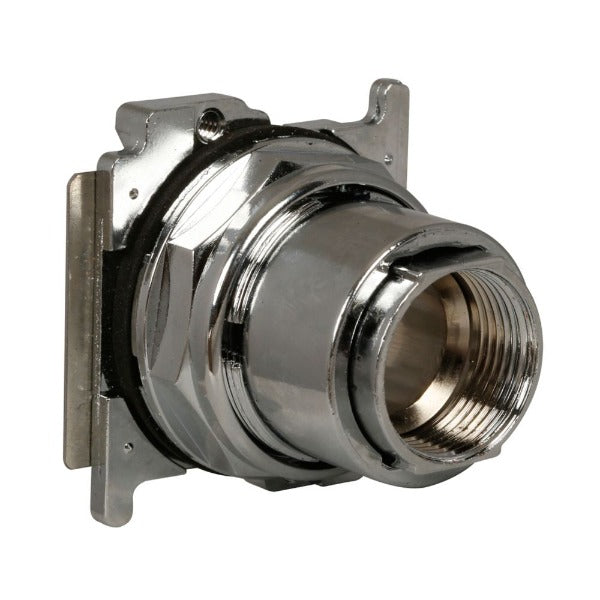

10250T9 - Eaton Cutler-Hammer - Accessories Push Button Operator
Eaton 30.5 mm Heavy-Duty Watertight/Oiltight Push-Pull Unit,Class I Division 2,Non-illuminated,Three-position,Maintained push and pull,40 mm button,10250T Series
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton 10250T pushbutton |
| CATALOG NUMBER | 10250T9 |
| UPC | 782113200583 |
| PRODUCT LENGTH/DEPTH | 1.9 in |
| PRODUCT HEIGHT | 2.1 in |
| PRODUCT WIDTH | 1.9 in |
| PRODUCT WEIGHT | .3 lb |
| COMPLIANCES | CE Marked |
| CERTIFICATIONS | CSA Certified UL Listed |
| CATALOG NOTES | 0 |
PRODUCT SPECIFICATIONS
| SERIES | 10250T |
| NUMBER OF POSITIONS | 3 |
| TYPE | Class I Division 2 |
| OPERATING MODE | Push: maintained Intermediate: maintained Pull: momentary |
| RATING | NEMA 4 NEC Class I Division 2, Groups B, C and D NEMA 12 NEMA 3 NEMA 4X NEMA 13 NEMA 3R |
| ILLUMINATION | Non-illuminated |
| ACTUATOR | Standard |
