Description

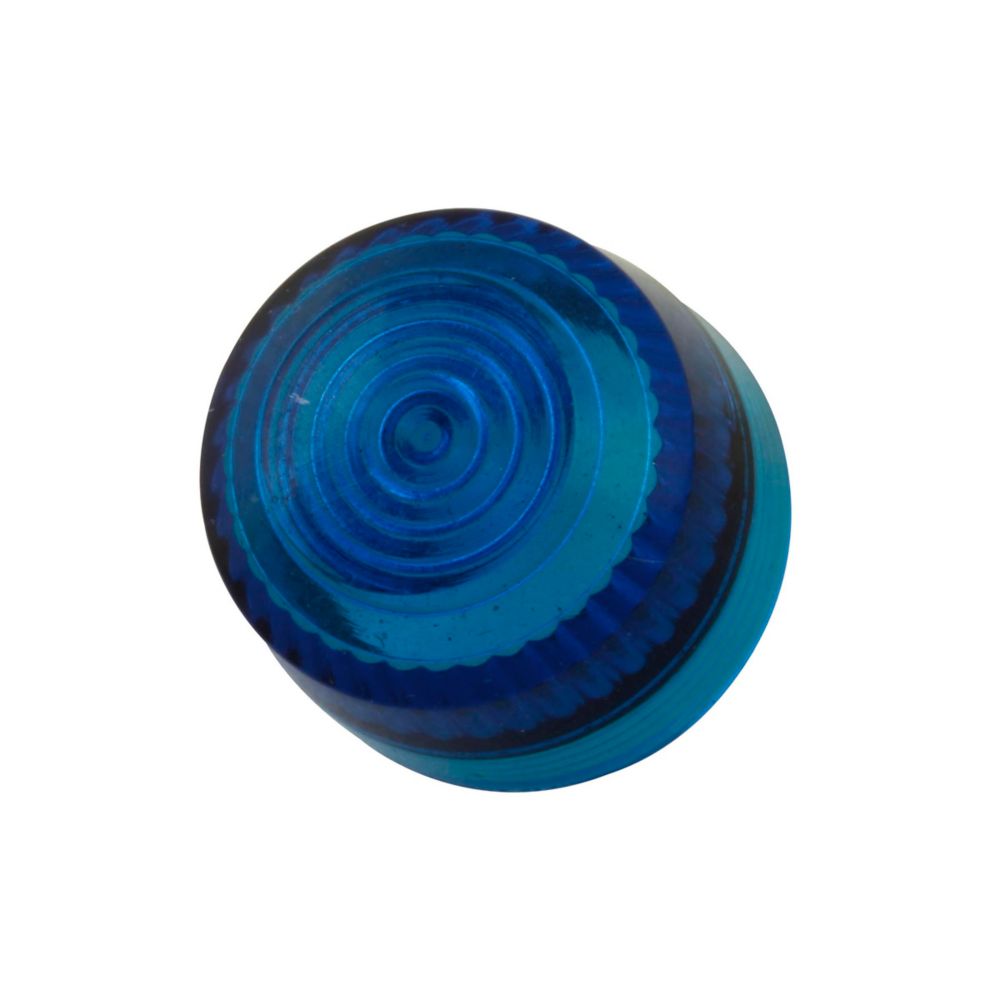

10250TC4N - Eaton Cutler-Hammer - Push Button and Indicating Light Lens
30.5 mm heavy-duty watertight/oiltight lens with blue plastic actuator, blank legend, for indicating light or master-test pushbutton operators. Compact (1.2 in x 0.8 in), UL-Listed and CSA-Certified.
GENERAL SPECIFICATIONS
| Product Name | Eaton 10250T pushbutton lens |
| Catalog Number | 10250TC4N |
| UPC | 782113148076 |
| Product Length/Depth | 1.2 in |
| Product Height | 0.8 in |
| Product Width | 1.2 in |
| Product Weight | 0.01 lb |
| Compliances | CE Marked |
| Certifications | UL Listed CSA Certified |
| Product Type | Pushbutton accessory |
PRODUCT SPECIFICATIONS
| Used with | Indicating light or master test pushbutton |
| Type | 30.5 mm, Heavy-Duty Watertight/Oiltight |
| Actuator color | Blue |
| Bus material | Plastic |
| Series | 10250T |
| Legend | Blank |
| Product category | Lens |
PRODUCT DATASHEET
