Description

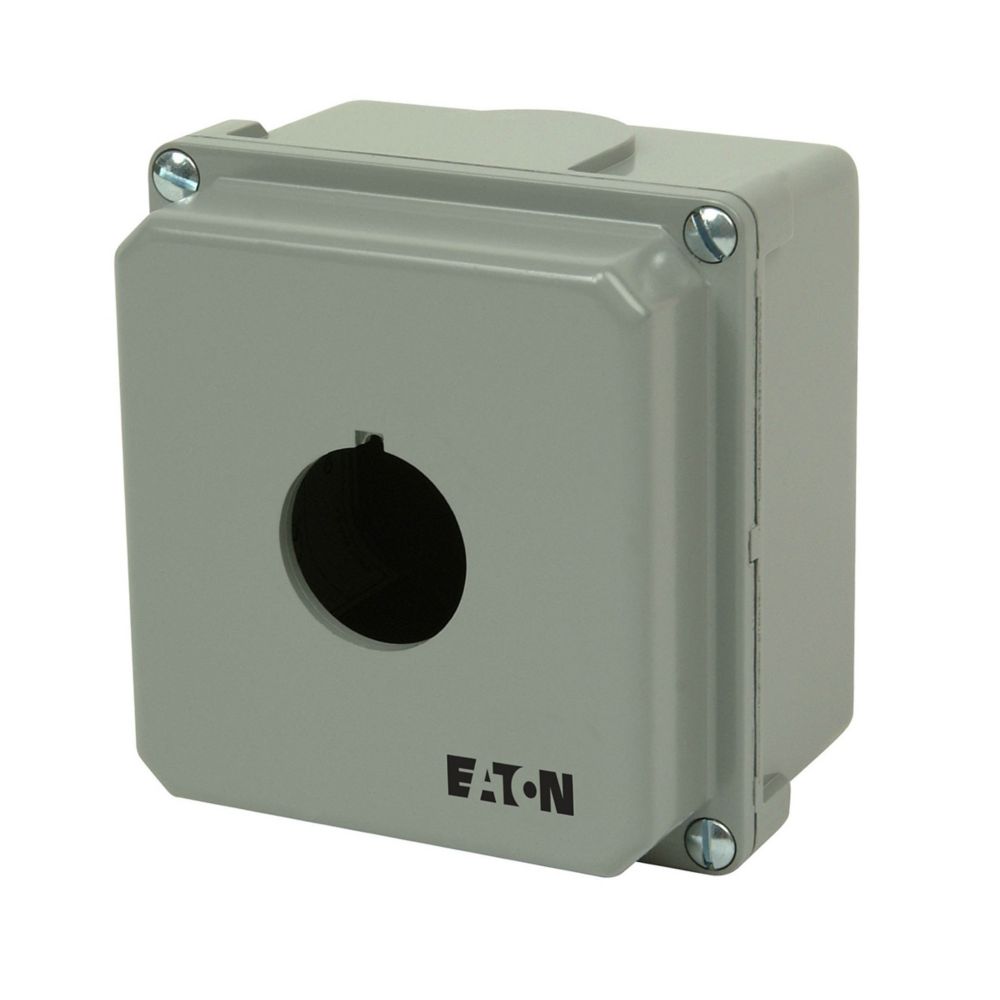

10250TN11 - Eaton Cutler-Hammer - 30.5mm Heavy-Duty Watertight/Oiltight Pushbutton Enclosure
Heavy-duty 30.5 mm pushbutton enclosure (surface-mounted) with one element and zinc die-cast body. Rated for harsh environments (NEMA 4, 4X, 12, 13), UL Listed and CSA Certified. Designed for modular use with 10250T series operators and contact blocks.
GENERAL SPECIFICATIONS
| Product Name |
Eaton 10250T pushbutton enclosure
|
| Catalog Number |
10250TN11
|
| UPC |
782113204598
|
| Product Length/Depth |
5 in
|
| Product Height |
3.75 in
|
| Product Width |
4 in
|
| Product Weight |
2.3 lb
|
| Compliances |
CE Marked
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
All cast enclosures can be converted to base mounting of contact blocks. When used with E30 pushbuttons, only the one element enclosureCan be used.
|
| Product Type |
Pushbutton accessory
|
PRODUCT SPECIFICATIONS
| Type |
30.5 mm, Heavy-Duty Watertight/Oiltight
|
| Bus material |
Zinc die cast
|
| Series |
10250T
|
| Product category |
Enclosure
|
| Number of elements |
1
|
| Mounting method |
Surface
|
| Rating |
NEMA 4
NEMA 12 NEMA 4X NEMA 13 |
