Description

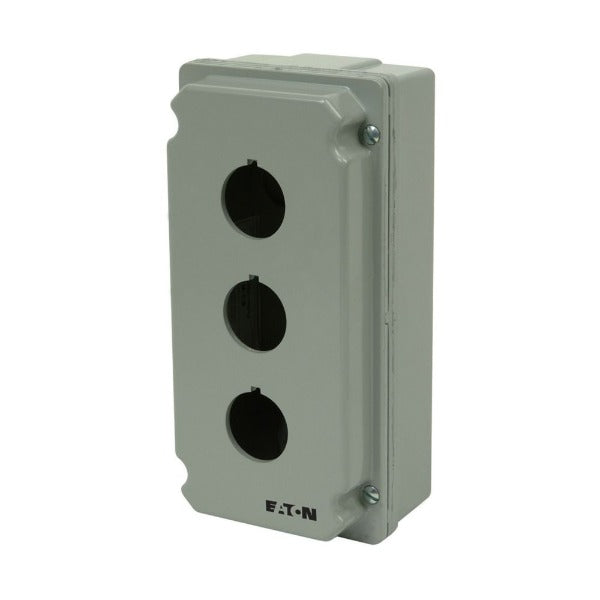

10250TN13 - Eaton Cutler-Hammer - Accessories Push Button Enclosure
Eaton Series NZM molded case circuit breaker handle mechanism, rotary handle red-yellow LKBL
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton 10250T pushbutton enclosure |
| CATALOG NUMBER | 10250TN13 |
| UPC | 782113204611 |
| PRODUCT LENGTH/DEPTH | 8.1 in |
| PRODUCT HEIGHT | 4.1 in |
| PRODUCT WIDTH | 4.4 in |
| PRODUCT WEIGHT | 1.7 lb |
| COMPLIANCES | CE Marked |
| CERTIFICATIONS | CSA Certified UL Listed |
| CATALOG NOTES | All cast enclosures can be converted to base mounting of contact blocks. When used with E30 pushbuttons, only the one element enclosureCan be used. |
PRODUCT SPECIFICATIONS
| PRODUCT CATEGORY | Enclosure |
| SERIES | 10250T |
| TYPE | 30.5 mm, Heavy-Duty Watertight/Oiltight |
| NUMBER OF ELEMENTS | 3 |
| BUS MATERIAL | Zinc die cast |
| RATING | NEMA 4X NEMA 13 NEMA 4 NEMA 12 |
| MOUNTING METHOD | Surface |
