Description

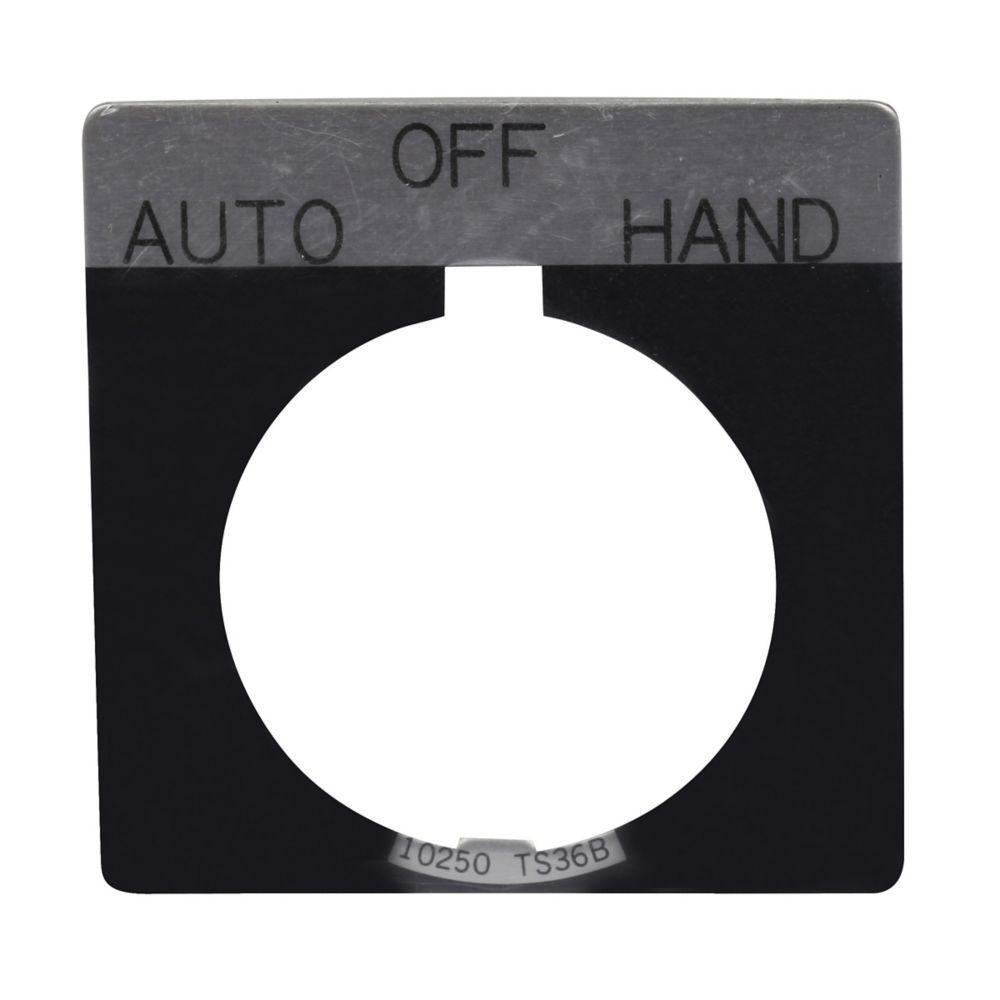

10250TS51 - Eaton Cutler-Hammer - Pushbutton Square 3-Position Legend Plate
Eaton 10250T pushbutton legend plate, 10250T series, Square 3-Position Legend Plate, Black, Legend: HAND/OFF/AUTO, 1/8 In high, White letters, Square
GENERAL SPECIFICATIONS
| Product Name | Eaton 10250T pushbutton legend plate |
| Catalog Number | 10250TS51 |
| UPC | 782113360706 |
| Product Length/Depth | 1.7 in |
| Product Height | 0.1 in |
| Product Width | 1.7 in |
| Product Weight | 0.01 lb |
| Compliances | CE Marked |
| Certifications | UL Listed CSA Certified |
| Catalog Notes | Has a satin aluminum field. Color is on lower portion. |
| Product Type | Pushbutton accessory |
PRODUCT SPECIFICATIONS
| Used with | 10250T series, selector switch and roto-push operators |
| Special features | Used with 10250T Series, Selector Switch and Roto-Push Operators |
| Type | Standard |
| Series | 10250T |
| Number of positions | 3 |
| Field color | Black |
| Legend | HAND OFF AUTO |
| Letter size | 1/8 in high |
| Lettering color | White |
| Size | Square |
PRODUCT DATASHEET
