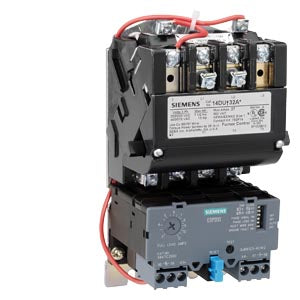

14DUC32AA - Siemens - 3-12A Starter
The Siemens 14DUC32AA is a 3 Pole starter with a current rating of 3-12 Amps and a voltage rating of 600VAC. It has a coil volts of 110 to 240VAC at 60Hz. The 14DUC32AA has a surface mounting type and features with 14DU frame type.
TECHNICAL SPECIFICATIONS
Product related
| Article number |
US2:14DUC32AA
|
| MFN |
14DUC32AA |
| UPC |
783087817791 |
| Commodity Code |
8536504000 |
Pricing related
Delivery related
| Export Control Regulations |
AL : N / ECCN : EAR99 |
| Standard delivery time |
18 Day/Days |
| Packaging dimensions (L x W x H) |
1.52 x 1.11 x 0.78 inch |
| Net weight |
3.000 lb |
| Quantity Unit |
1 Piece |
| Packaging Quantity |
1 |
| Dangerous goods |
No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations |
No |
| Compliance with the substance restrictions according to RoHS directive |
not available |
| SCIP Number |
not available |
Siemens specific
| Product Group |
4637 |
| Catalog ID |
CC-IC10 |
| Group Code |
R711 |
| Country of origin |
Mexico |
| Returnable Status |
Yes |
PRODUCT DATASHEET
14DUC32AA
