| SKU |
160FEE |
| descriptionLabel |

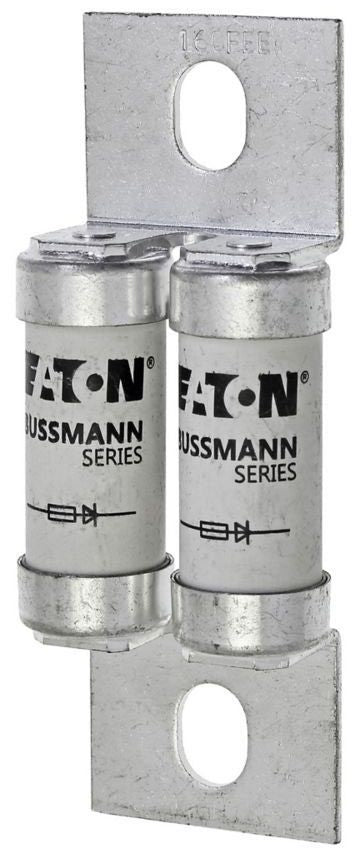

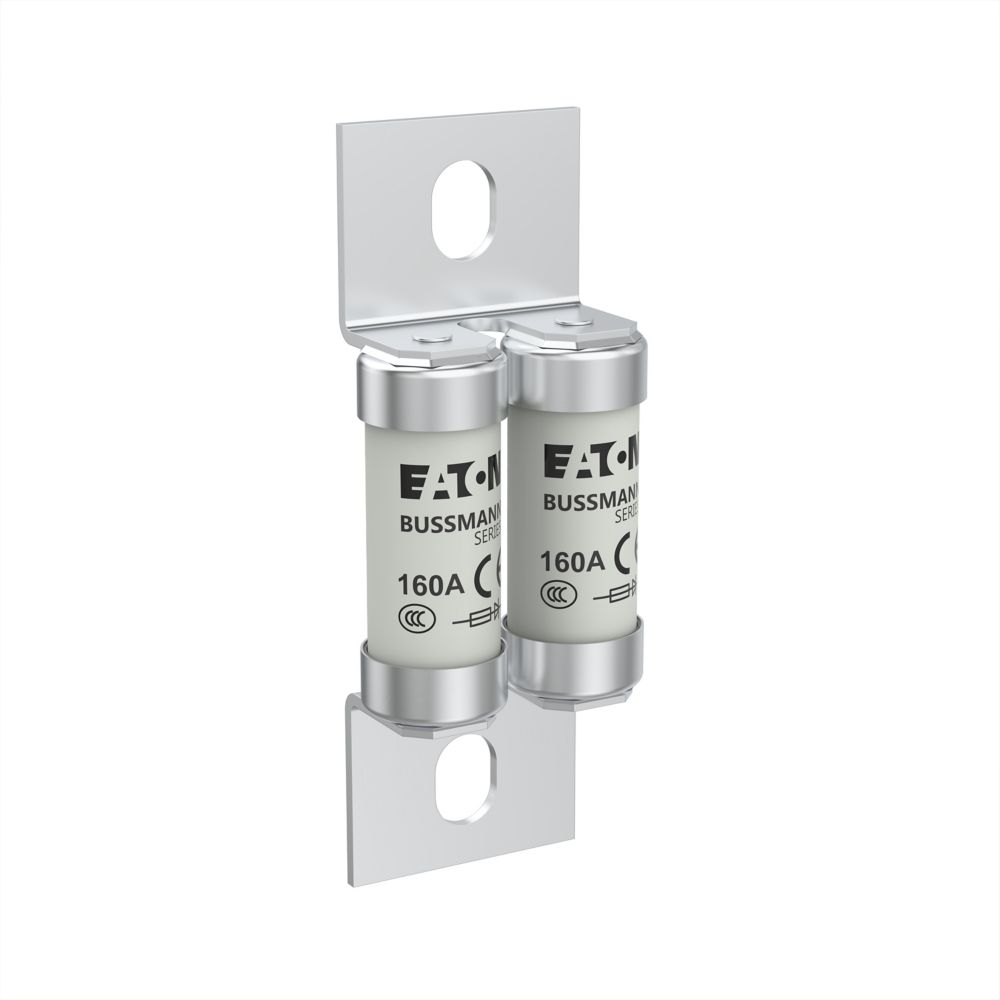

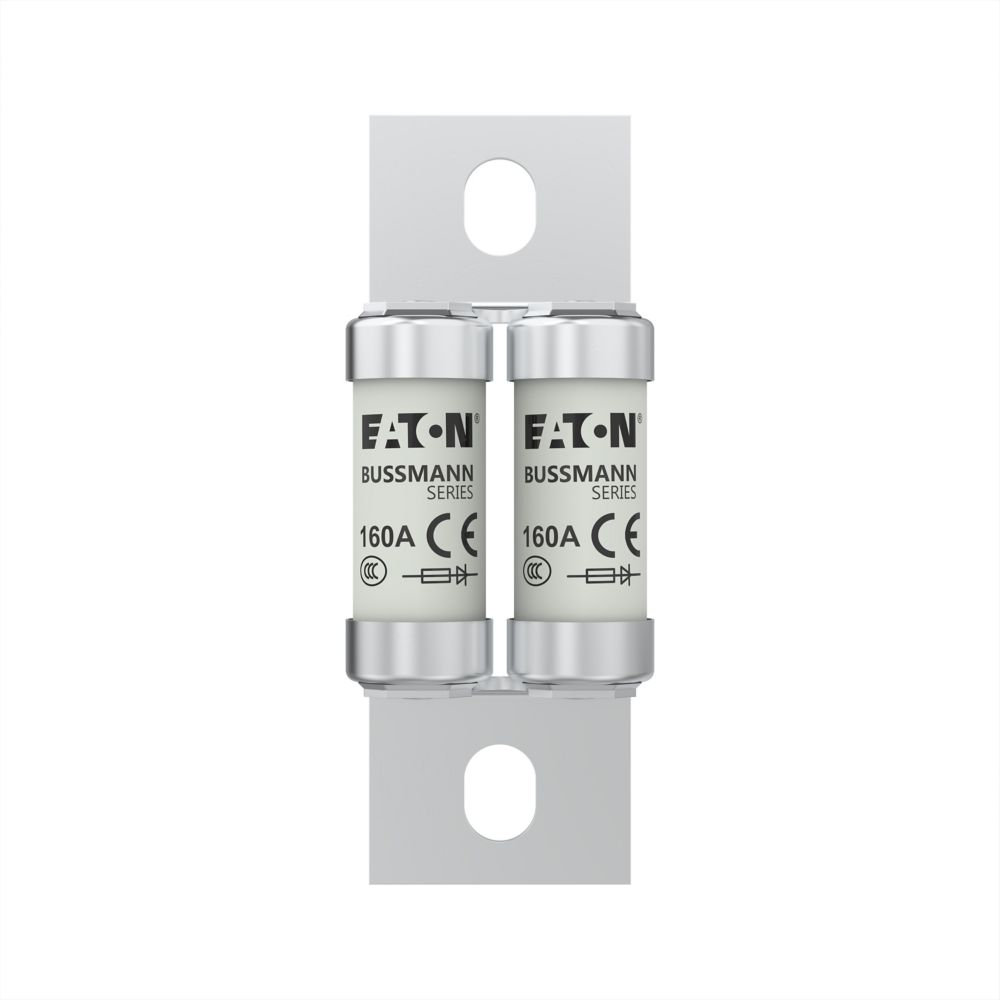

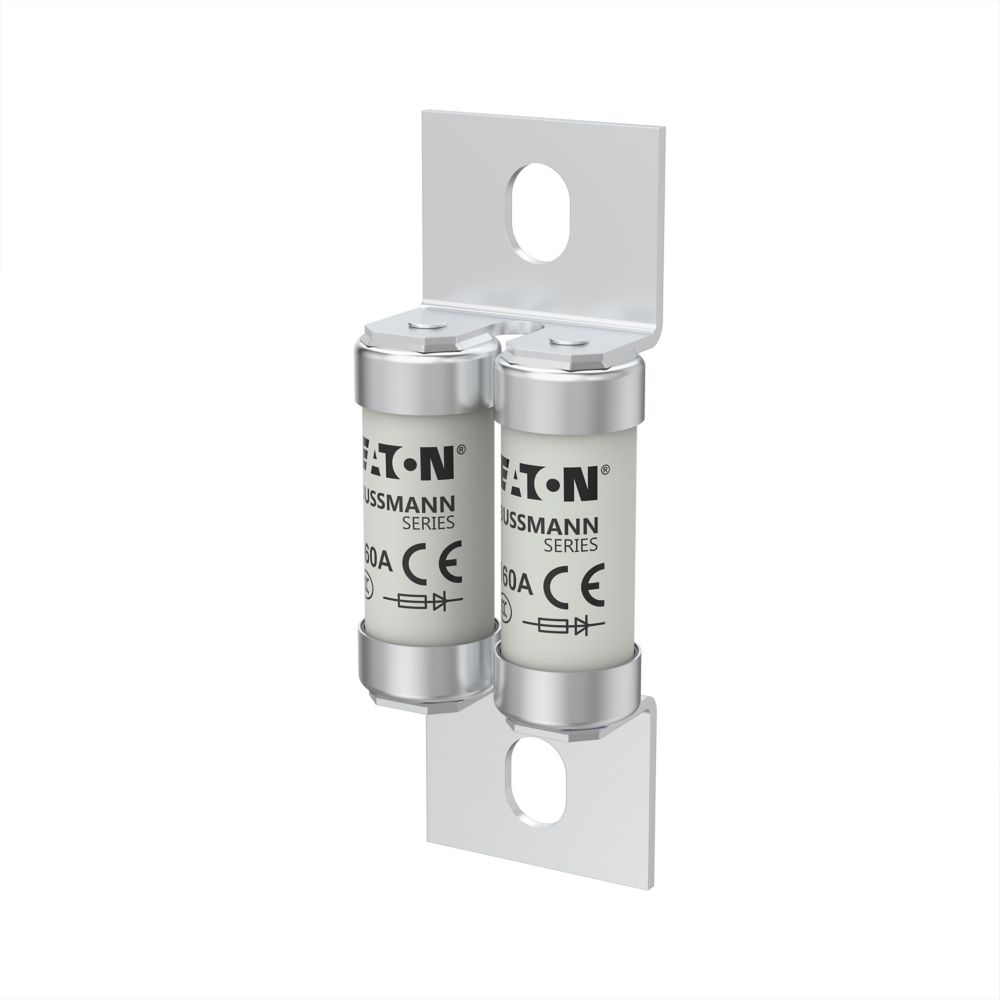

Eaton Bussmann series high speed British standard fuse, Double barrel, 160A, 690 VAC/500 VDC (IEC), 700 VAC/500 VDC (UL), Class aR, Breaking capacity 200 kA RMS Sym.HSBS, 50 kA DC at 500 VDC |
| Product Name |
Eaton Bussmann series high speed british standard fuse |
| Catalog Number |
160FEE |
| UPC |
051712831581 |
| EAN |
5027590436977 |
| Product Length/Depth |
94 mm |
| Product Height |
36 mm |
| Product Width |
20 mm |
| Product Weight |
91.6 g |
| Warranty |
Not Applicable |
| Compliances |
CE Marked RoHS Compliant |
| Certifications |
IEC Rated UL Recognized Designed and tested to BS88 part 4 IEC 60269-4 |
| Global Catalog |
160FEE |
| Product Type |
High speed british standard fuse |
| Amperage Rating |
160 A |
| Breaking capacity |
200 kA |
| Fuse indicator |
None |
| Insulated metal gripping lugs (IMGL) |
No |
| Utilization category |
aR (accompanied semiconductor protection) |
| Voltage type |
AC/DC |
| Rated switching capacity |
200 kA |
| Rated voltage AC |
690 V |
| Rated voltage DC |
500 V |
| Center-to-center distance of connections |
71 mm |
| Mounting dimension |
M8 |
| Current type |
AC/DC |
| Class |
Class aR |
| Clearing (I2T) |
3700 at 415 V, 5700 at 660 V |
| Watt losses |
46 W |
| Fuse shape |
Offset dual barrel bolted tags |
| Pre arc (I2T) |
1000 |
| Color |
None |
| Interrupt rating |
200 kA RMS Sym, 50 kA at 500 Vdc |
| Connection |
Blade end x blade end |
| Construction size |
Other |
| Mounting method |
Stud |
| Packaging type |
Standard |
| Voltage rating |
690 V (IEC), 700 V (UL) |
| Type |
Fuse |
| Application |
Semiconductor, DC Common bus, DC drives, power converters/rectifiers |
| Fuse type |
FEE |
| Suitable for |
EC-600 Trip indicator kit (indicator + clips) TI700 Fuse indicator MAI Microswitch/adaptor MBI Microswitch/adaptor |
| Fuse system (according to IEC 60269) |
Other |
