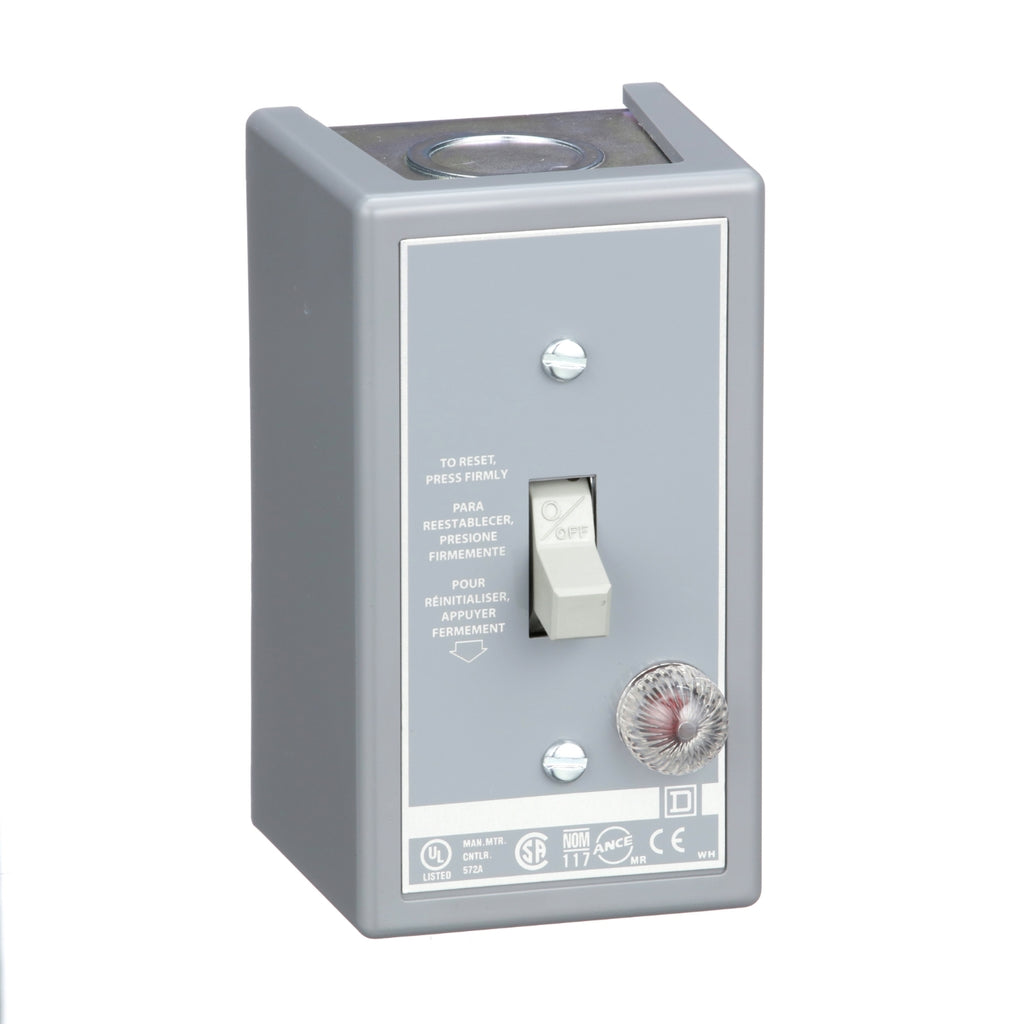

2510FG1P - Schneider Electric - 16 Amp 1 Pole 277 Volt Square D Electric Manual Starter
2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. It weighs 0.79 lb. This device has a red pilot light indicator. Manual starter is UL listed and CSA certified.
GENERAL SPECIFICATIONS
| Product | Single Unit Manual Starter |
|---|---|
| Type | F |
| Overload Relay Type | Melting alloy |
| Current Rating | 16 A |
|---|---|
| cable entry | 0.5" and 0.75" knock-outs (top and bottom) |
| Horsepower Rating | 1 hp 115 V AC 1 hp 230 V AC 1 hp 277 V AC |
| Voltage Rating | 277 V AC |
| Number of Poles | 1P |
| Control Unit | Toggle switch |
| Number of Phases | 1 phase |
| Pilot Light | Red indicator |
| Reset | Manual |
| Motor starter type | Non reversing |
| Electrical Connection | Screw clamp terminals |
| Wire Gauge | AWG 14...AWG 12 copper |
| Height | 4.25 in (107.95 mm) |
| Width | 2.44 in (61.98 mm) |
| Depth | 2.75 in (69.85 mm) |
| Net Weight | 0.79 lb(US) (0.36 kg) |
| Product Certifications | UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05 |
|---|---|
| NEMA Enclosure Rating | NEMA 1 Plastic standard size |
| Category | US10CP121101 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901553946 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.60 in (6.6 cm) |
| Package 1 Width | 3.11 in (7.9 cm) |
| Package 1 Length | 4.80 in (12.2 cm) |
| Package 1 Weight | 12.8 oz (362.9 g) |
