2510FL1 - Schneider Electric - Square D Motor Control Part And Accessory

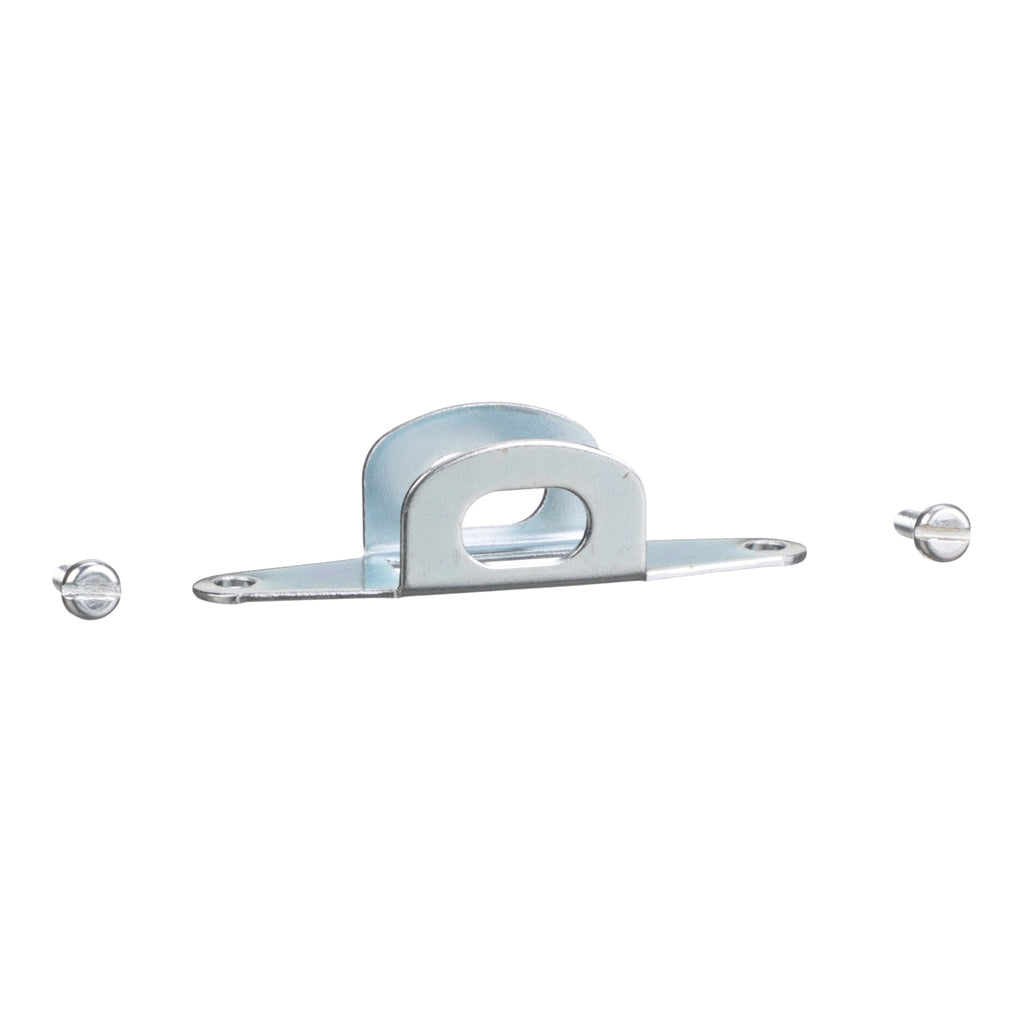

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. The kit provides a provision for a padlock. The kit can be added by mounting it under the cover screws of the NEMA 1 enclosure or the flush plate. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Padlock attachment |
| Range of Product |
K
F |
Complementary
| For Use With |
Manual starter |
| Height |
2.75 in (69.85 mm) |
| Width |
0.7 in (17.8 mm) |
| Depth |
0.7 in (17.8 mm) |
| Net Weight |
0.04 lb(US) (0.02 kg) |
Ordering and shipping details
| Category |
US10CP121101 |
| Discount Schedule |
0CP1 |
| GTIN |
785901554127 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.70 in (1.778 cm) |
| Package 1 Width |
0.70 in (1.778 cm) |
| Package 1 Length |
2.72 in (6.909 cm) |
| Package 1 Weight |
0.960 oz (27.216 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
1.90 in (4.826 cm) |
| Package 2 Width |
9.00 in (22.86 cm) |
| Package 2 Length |
12.00 in (30.48 cm) |
| Package 2 Weight |
5.760 oz (163.293 g) |
| Unit Type of Package 3 |
PAL |
| Number of Units in Package 3 |
3520 |
| Package 3 Height |
40.00 in (101.6 cm) |
| Package 3 Width |
40.00 in (101.6 cm) |
| Package 3 Length |
48.00 in (121.92 cm) |
| Package 3 Weight |
127.000 lb(US) (57.606 kg) |
PRODUCT DATASHEET
2510FL1_Product Datasheet
