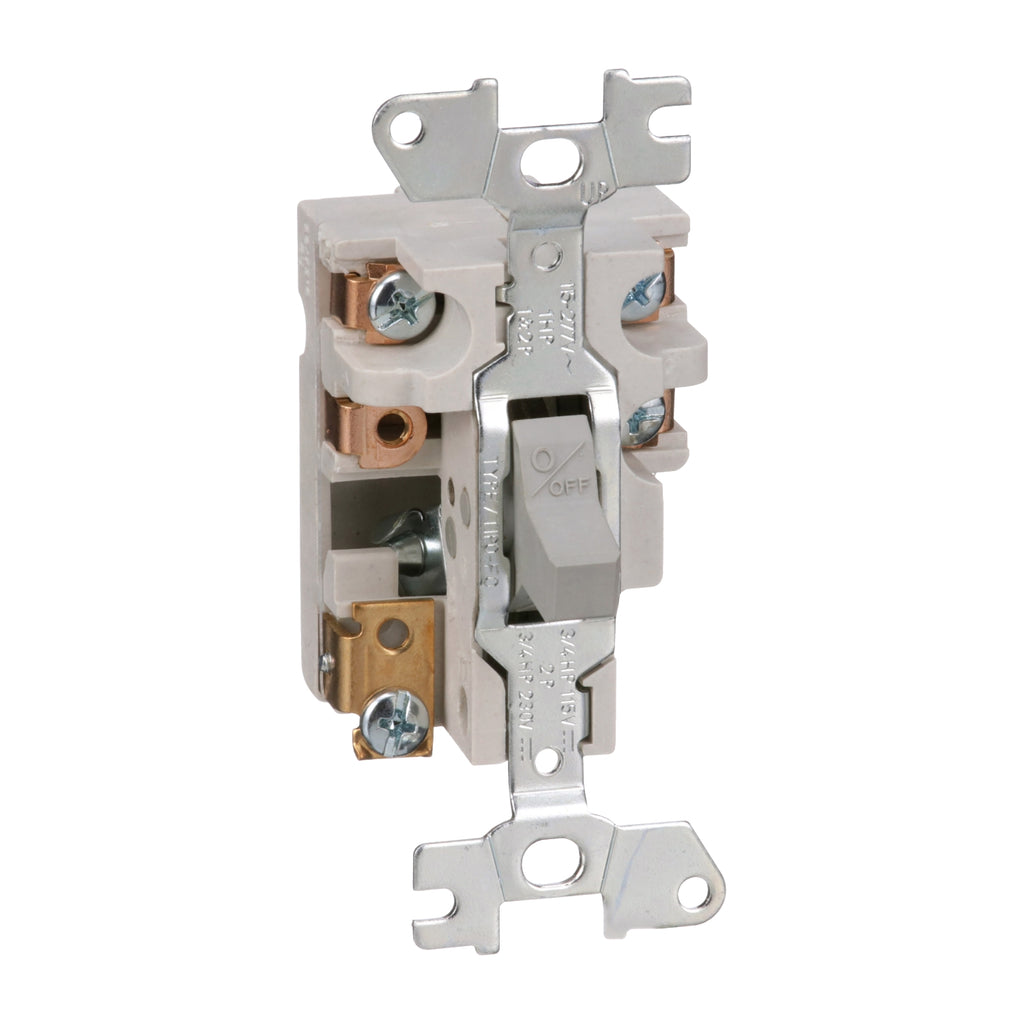

2510FO2 - Schneider Electric - 16 Amp 2 Pole 277 Volt Square D Electric Manual Starter
Roll over image to zoom in Click on image to zoom
2510FO2 - Schneider Electric - 16 Amp 2 Pole 277 Volt Square D Electric Manual Starter

2510FO2 - Schneider Electric - 16 Amp 2 Pole 277 Volt Square D Electric Manual Starter

Square DSKU: SQD2510FO2
Price:
$56.03
Stock:
Sold out

Description

2510FO2 - Schneider Electric - 16 Amp 2 Pole 277 Volt Square D Electric Manual Starter

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 2 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP at 115 VAC, 2 HP at 230 VAC, 1 HP at 277 VAC and 0.75 HP at 115 and 230 VDC ratings. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.13 inches tall, 1.69 inches wide and 2.22 inches deep. It weighs 0.33 lb. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.

GENERAL SPECIFICATIONS

Main
Product Single Unit Manual Starter
Type F
Overload Relay Type Melting alloy
Complementary
Current Rating 16 A
cable entry Without
Horsepower Rating 1 hp 115 V AC
1 hp 277 V AC
0.75 hp 115 V DC
0.75 hp 230 V DC
2 hp 230 V AC
Voltage Rating 277 V AC
230 V DC
Number of Poles 2P
Control Unit Toggle switch
Number of Phases 1 phase
Pilot Light No indicator
Reset Manual
Motor starter type Non reversing
Electrical Connection Screw clamp terminals
Wire Gauge AWG 14...AWG 12 copper
Height 4.13 in (104.90 mm)
Width 1.69 in (42.93 mm)
Depth 2.22 in (56.39 mm)
Net Weight 0.33 lb(US) (0.15 kg)
Environment
Product Certifications UL recognized E42243 CCN NLRV2
CSA LR25490 class 3211 05
NEMA Enclosure Rating Not rated (open device)
Ordering and shipping details
Category US10CP121101
Discount Schedule 0CP1
GTIN 785901554158
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.01 in (5.1 cm)
Package 1 Width 2.91 in (7.4 cm)
Package 1 Length 4.69 in (11.9 cm)
Package 1 Weight 5.4 oz (154.2 g)
Unit Type of Package 2 PAL
Number of Units in Package 2 624
Package 2 Height 40.00 in (101.6 cm)
Package 2 Width 40.00 in (101.6 cm)
Package 2 Length 48.00 in (121.92 cm)
Package 2 Weight 213.000 lb(US) (96.615 kg)



PRODUCT DATASHEET

Schneider Electric_Fractional-Horsepower-Starters_2510FO2
