Description
| Main | |
|---|---|
| Product | Single Unit Manual Starter |
| Type | F |
| Overload Relay Type | Melting alloy |
| Complementary | |
| Current Rating | 16 A |
| cable entry | Without |
| Horsepower Rating | 1 hp 115 V AC1 hp 230 V AC1 hp 277 V AC |
| Voltage Rating | 277 V AC |
| Number of Poles | 1P |
| Control Unit | Toggle switch |
| Number of Phases | 1 phase |
| Pilot Light | No indicator |
| Reset | Manual |
| Motor starter type | Non reversing |
| Electrical Connection | Screw clamp terminals |
| Wire Gauge | 14 AWG...12 AWG copper |
| Height | 4.5 in (114.3 mm) |
| Width | 2.75 in (69.85 mm) |
| Depth | 2.19 in (55.63 mm) |
| Environment | |
| Product Certifications | UL listed file E42243 CCN NLRVCSA LR25490 class 3211 05 |
| NEMA Enclosure Rating | Not rated (flush plate) Stainless Steel standard size |
| Ordering and shipping details | |
| Category | US10CP121101 |
| Discount Schedule | 0CP1 |
| GTIN | 785901554233 |
| Returnability | Yes |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.200 in (5.588 cm) |
| Package 1 Width | 2.900 in (7.366 cm) |
| Package 1 Length | 4.700 in (11.938 cm) |
| Package weight(Lbs) | 6.720 oz (190.509 g) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

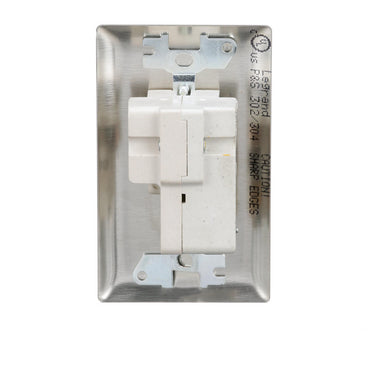

2510FS1
2510FS1
