Description
| Main | |
|---|---|
| Product | Single Unit Manual Starter |
| Type | F |
| Overload Relay Type | Melting alloy |
| Complementary | |
| Current Rating | 16 A |
| cable entry | 0.75 NPT (bottom) |
| Horsepower Rating | 1 hp 115 V AC1 hp 277 V AC0.75 hp 115 V DC0.75 hp 230 V DC2 hp 230 V AC |
| Voltage Rating | 277 V AC230 V DC |
| Number of Poles | 2P |
| Control Unit | Toggle switch (with lock-off) |
| Number of Phases | 1 phase |
| Pilot Light | No indicator |
| Reset | Manual |
| Motor starter type | Non reversing |
| Electrical Connection | Screw clamp terminals |
| Wire Gauge | 14 AWG...12 AWG copper |
| Height | 4.38 in (111.25 mm) |
| Width | 3 in (76.2 mm) |
| Depth | 4.25 in (107.95 mm) |
| Environment | |
| Product Certifications | UL listed file E42243 CCN NLRVCSA LR25490 class 3211 05 |
| NEMA Enclosure Rating | NEMA 4 die cast zinc alloy standard size |
| Ordering and shipping details | |
| Category | US10CP121101 |
| Discount Schedule | 0CP1 |
| GTIN | 785901554356 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.600 in (9.144 cm) |
| Package 1 Width | 4.600 in (11.684 cm) |
| Package 1 Length | 5.400 in (13.716 cm) |
| Package weight(Lbs) | 2.941 lb(US) (1.334 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

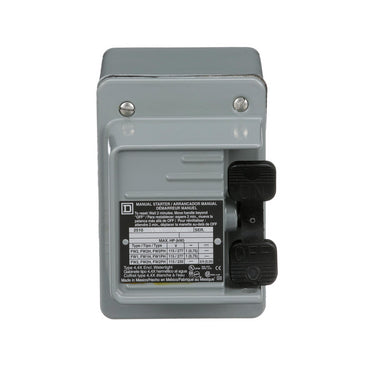

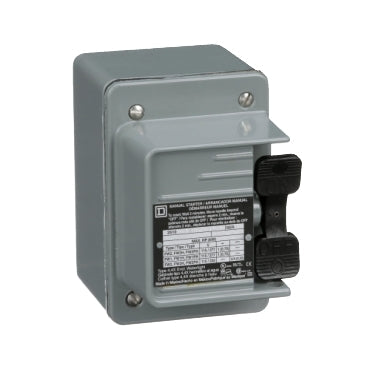

2510FW2
2510FW2
