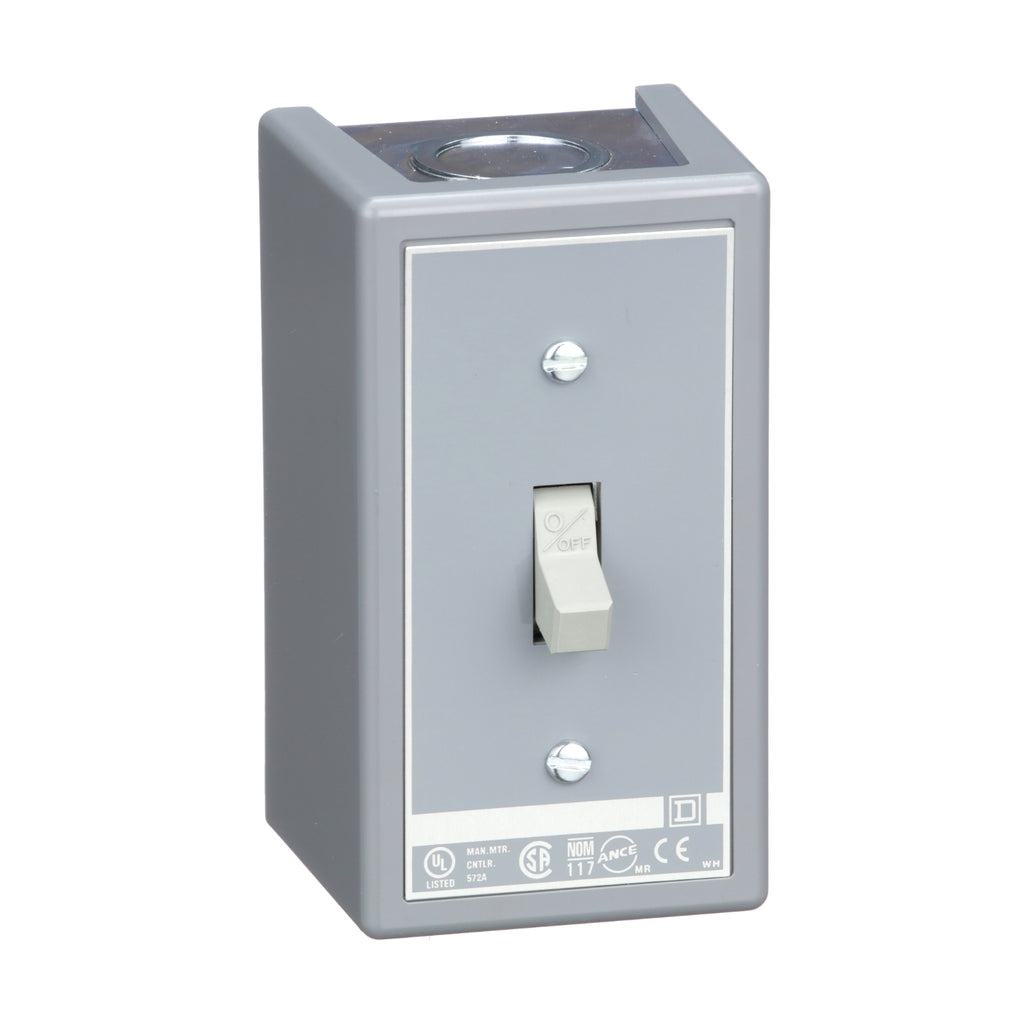

2510KG1 - Schneider Electric - 30 Amp 2 Pole 120 V Square D Manual Starter
2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switches is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This NEMA 1 general purpose enclosure is a surface mounting enclosure. The enclosure has has a 0.5 and 0.75 knockout on the top and bottom. The enclosure is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. It weighs 0.84 lb. This device is UL Listed and CSA certified.
GENERAL SPECIFICATIONS
| Product | Single Unit Manual Switch |
|---|---|
| Type | K |
| Current Rating | 30 A |
|---|---|
| Cable Entry | 0.5" and 0.75" knock-outs (top and bottom) |
| Horsepower Rating | 2 hp 115 V AC 2 hp 230 V AC 3 hp 460 V AC 3 hp 575 V AC 1 hp 90 V DC 2 hp 115 V DC 1.5 hp 230 V DC |
| Maximum Voltage Rating | 600 V AC 230 V DC |
| Number of Poles | 2P |
| Control Unit Type | Toggle |
| Number of Phases | 1 phase |
| Pilot Light | No indicator |
| Starter Type | Non reversing |
| Electrical Connection | Screw clamp terminals |
| Wire Gauge | AWG 14...AWG 10 copper |
| Height | 4.25 in (107.95 mm) |
| Width | 2.44 in (61.98 mm) |
| Depth | 2.75 in (69.85 mm) |
| Net Weight | 0.84 lb(US) (0.38 kg) |
| Certifications | UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05 |
|---|---|
| NEMA Enclosure Rating | NEMA 1 Plastic standard size |
| Category | US10CP121102 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901554479 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.50 in (6.350 cm) |
| Package 1 Width | 3.10 in (7.874 cm) |
| Package 1 Length | 4.90 in (12.446 cm) |
| Package 1 Weight | 13.280 oz (376.481 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 21 |
| Package 2 Height | 8.00 in (20.320 cm) |
| Package 2 Width | 9.00 in (22.860 cm) |
| Package 2 Length | 14.60 in (37.084 cm) |
| Package 2 Weight | 18.060 lb(US) (8.192 kg) |
