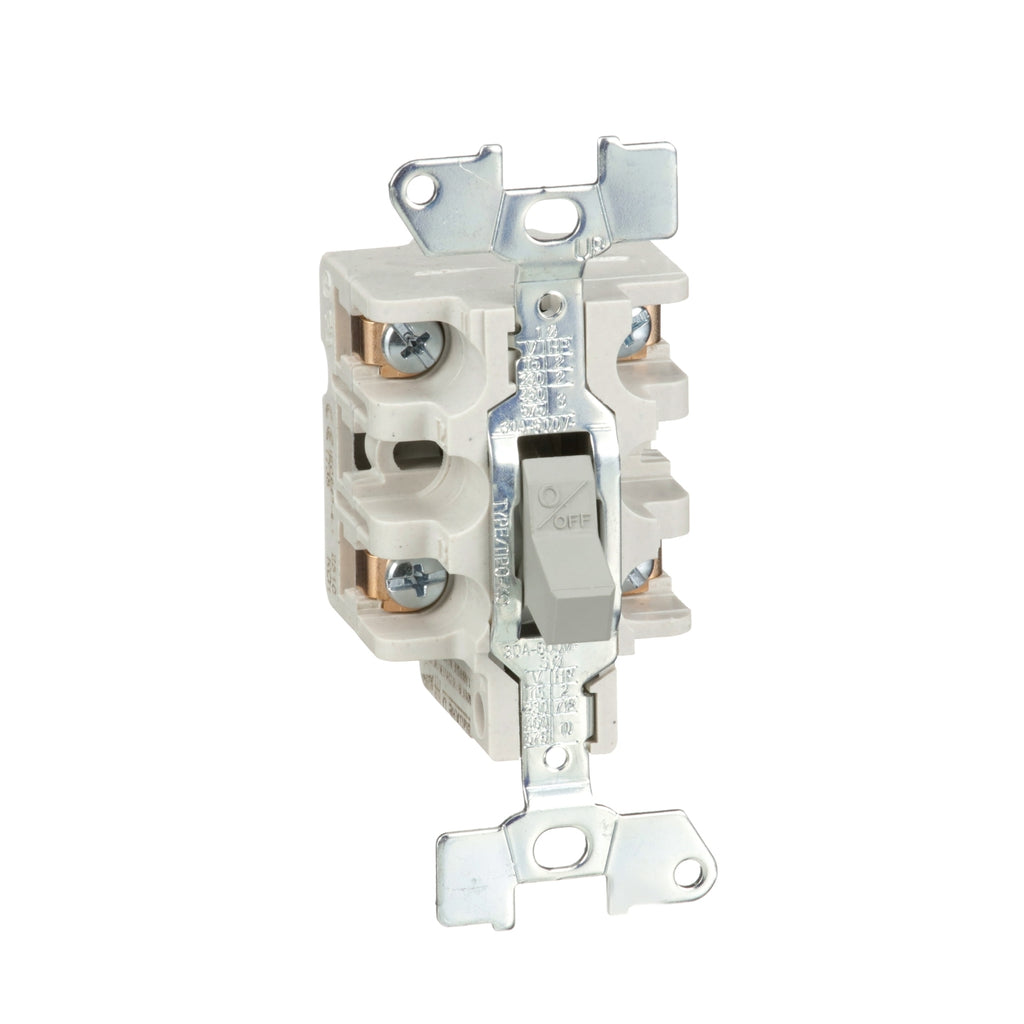

2510KO1 - Schneider Electric - 30 Amp 2 Pole 600 V Square D Manual Starter
2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switches is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This manual motor switch is not supplied with an enclosure. This switch is 4.13 inches tall, 1.69 inches wide and 2.34 inches deep. It weighs 0.35 lb. This device is UL Listed and CSA certified.
GENERAL SPECIFICATIONS
| Product | Single Unit Manual Switch |
|---|---|
| Type | K |
| Current Rating | 30 A |
|---|---|
| Horsepower Rating | 2 hp 115 V AC 2 hp 230 V AC 3 hp 460 V AC 3 hp 575 V AC 1 hp 90 V DC 2 hp 115 V DC 1.5 hp 230 V DC |
| Maximum Voltage Rating | 600 V AC 230 V DC |
| Number of Poles | 2P |
| Control Unit Type | Toggle |
| Number of Phases | 1 phase |
| Pilot Light | No indicator |
| Starter Type | Non reversing |
| Electrical Connection | Screw clamp terminals |
| Wire Gauge | AWG 14...AWG 10 copper |
| Height | 4.13 in (104.90 mm) |
| Width | 1.69 in (42.93 mm) |
| Depth | 2.34 in (59.44 mm) |
| Net Weight | 0.35 lb(US) (0.16 kg) |
| Certifications | UL recognized E42243 CCN NLRV2 CSA LR25490 class 3211 05 |
|---|---|
| NEMA Enclosure Rating | Not rated (open device) |
| Category | US10CP121102 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901554554 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.90 in (4.826 cm) |
| Package 1 Width | 3.00 in (7.620 cm) |
| Package 1 Length | 4.70 in (11.938 cm) |
| Package 1 Weight | 5.600 oz (158.757 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 72 |
| Package 2 Height | 12.60 in (32.004 cm) |
| Package 2 Width | 12.60 in (32.004 cm) |
| Package 2 Length | 15.00 in (38.100 cm) |
| Package 2 Weight | 31.680 lb(US) (14.370 kg) |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 1152 |
| Package 3 Height | 40.00 in (101.600 cm) |
| Package 3 Width | 40.00 in (101.600 cm) |
| Package 3 Length | 48.00 in (121.920 cm) |
| Package 3 Weight | 507.000 lb(US) (229.971 kg) |
