Description
| Main | |
|---|---|

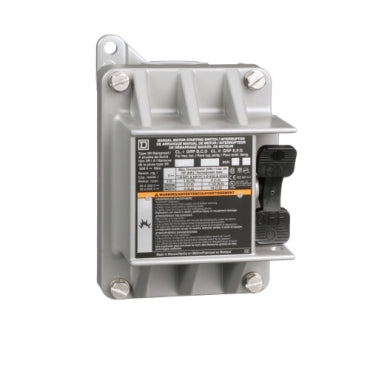

| Product | Single Unit Manual Switch |
| Type | K |
| Complementary | |
| Current Rating | 20 A |
| Cable Entry | 0.75 NPT (bottom) |
| Horsepower Rating | 2 hp 115 V AC2 hp 230 V AC3 hp 460 V AC3 hp 575 V AC1 hp 90 V DC2 hp 115 V DC1.5 hp 230 V DC |
| Maximum Voltage Rating | 600 V AC230 V DC |
| Number of Poles | 2P |
| Control Unit Type | Toggle |
| Number of Phases | 1 phase |
| Pilot Light | No indicator |
| Starter Type | Non reversing |
| Electrical Connection | Screw clamp terminals |
| Wire Gauge | 14 AWG...10 AWG copper |
| Height | 6.36 in (161.54 mm) |
| Width | 3.95 in (100.33 mm) |
| Depth | 4.35 in (110.49 mm) |
| Environment | |
| Certifications | UL listed file E58760 CCN NPXZCSA LR26817 class 3218 04 |
| NEMA Enclosure Rating | NEMA 3R/7/9 Cast Aluminium standard size |
| Ordering and shipping details | |
| Category | US10CP121102 |
| Discount Schedule | 0CP1 |
| GTIN | 785901554639 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 4.700 in (11.938 cm) |
| Package 1 Width | 5.700 in (14.478 cm) |
| Package 1 Length | 7.000 in (17.780 cm) |
| Package weight(Lbs) | 3.541 lb(US) (1.606 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 176 |
| Package 2 Height | 40.000 in (101.600 cm) |
| Package 2 Width | 40.000 in (101.600 cm) |
| Package 2 Length | 48.000 in (121.920 cm) |
| Package 2 Weight | 623.999 lb(US) (283.041 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
2510KR1
2510KR1
