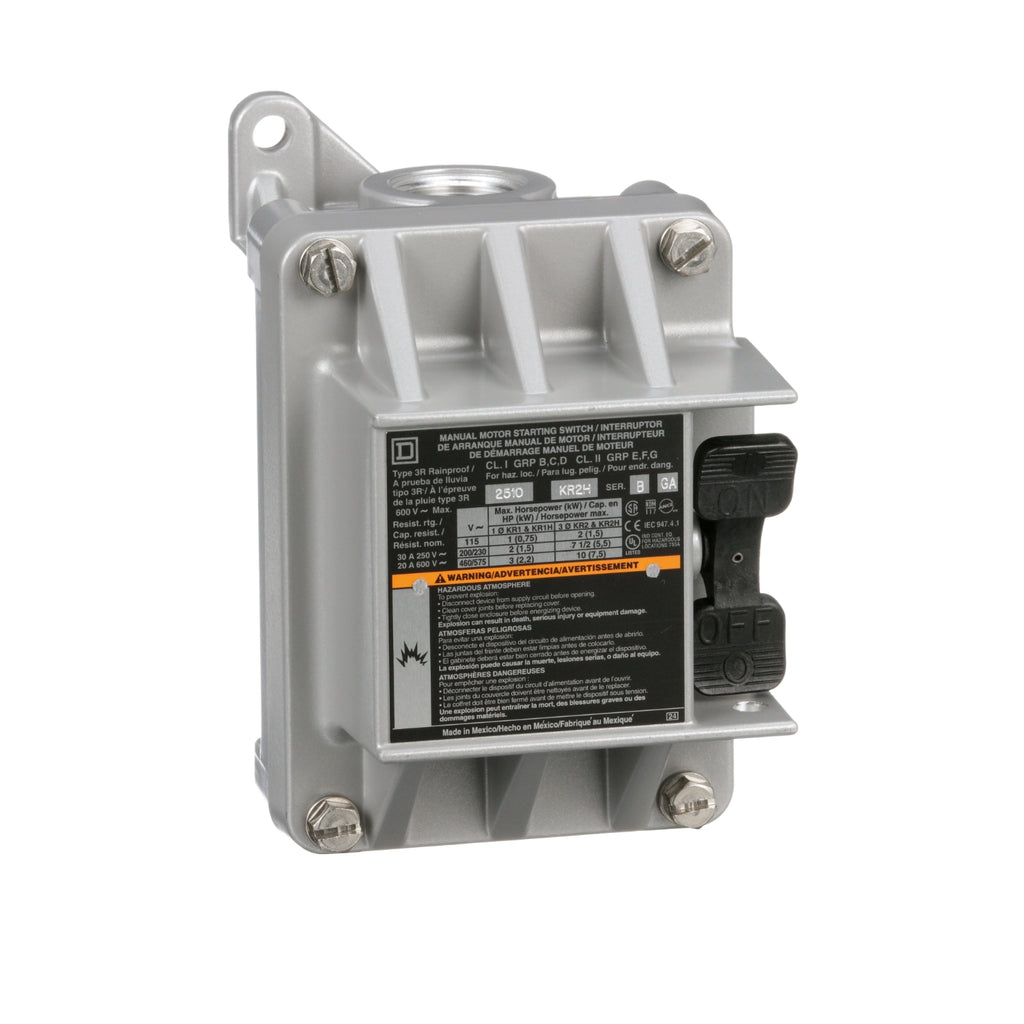

2510KR2H - Schneider Electric - Square D Manual Starter
2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switch is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, 10 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. A cast aluminum NEMA 7 and 9 hazardous location, Class 1, Groups B, C & D and Class II, Groups E, F, & G enclosure is used to protect this starter. This enclosure has one conduit entry on the bottom and one on the top. The 0.75 inch conduit entries are tapped with number 14 pipe threads. Enclosure is 6.36 inches tall, 3.95 inches wide and 4.35 inches deep. This device is UL Listed and CSA certified.
GENERAL SPECIFICATIONS
| Product | Single Unit Manual Switch |
|---|---|
| Type | K |
| Current Rating | 20 A |
|---|---|
| Cable Entry | 0.75 NPT (top and bottom) |
| Horsepower Rating | 2 hp 115 V AC 1 hp 90 V DC 2 hp 115 V DC 1.5 hp 230 V DC 7.5 hp 230 V AC 10 hp 460 V AC 10 hp 575 V AC |
| Maximum Voltage Rating | 600 V AC 230 V DC |
| Number of Poles | 3P |
| Control Unit Type | Toggle |
| Number of Phases | 3 phase |
| Pilot Light | No indicator |
| Starter Type | Non reversing |
| Electrical Connection | Screw clamp terminals |
| Wire Gauge | AWG 14...AWG 10 copper |
| Height | 6.36 in (161.54 mm) |
| Width | 3.95 in (100.33 mm) |
| Depth | 4.35 in (110.49 mm) |
| Certifications | UL listed file E58760 CCN NPXZ CSA LR26817 class 3218 04 |
|---|---|
| NEMA Enclosure Rating | NEMA 3R/7/9 Cast Aluminium standard size |
| Category | US10CP121102 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901554646 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.70 in (11.938 cm) |
| Package 1 Width | 5.60 in (14.224 cm) |
| Package 1 Length | 7.10 in (18.034 cm) |
| Package 1 Weight | 3.501 lb(US) (1.588 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 176 |
| Package 2 Height | 40.00 in (101.600 cm) |
| Package 2 Width | 40.00 in (101.600 cm) |
| Package 2 Length | 48.00 in (121.920 cm) |
| Package 2 Weight | 622.000 lb(US) (282.134 kg) |
