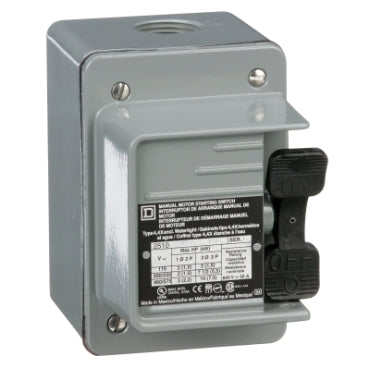

2510KW2H - Schneider Electric - 30 Amp 3 Pole 600 V Square D Manual Starter
2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switch is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, 10 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this manual motor switch. This enclosure has one conduit entry on the bottom and one on the top. The 0.75 inch conduit entries are tapped with number 14 pipe threads. This device is 4.38 inches tall, 3.00 inches wide and 4.25 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device is UL Listed and CSA certified.
GENERAL SPECIFICATIONS
| Product | Single Unit Manual Switch |
|---|---|
| Type | K |
| Current Rating | 30 A |
|---|---|
| Cable Entry | 0.75 NPT (top and bottom) |
| Horsepower Rating | 2 hp 115 V AC 1 hp 90 V DC 2 hp 115 V DC 1.5 hp 230 V DC 7.5 hp 230 V AC 10 hp 460 V AC 10 hp 575 V AC |
| Maximum Voltage Rating | 600 V AC 230 V DC |
| Number of Poles | 3P |
| Control Unit Type | Toggle |
| Number of Phases | 3 phase |
| Pilot Light | No indicator |
| Starter Type | Non reversing |
| Electrical Connection | Screw clamp terminals |
| Wire Gauge | AWG 14...AWG 10 copper |
| Height | 4.38 in (111.25 mm) |
| Width | 3 in (76.2 mm) |
| Depth | 4.25 in (107.95 mm) |
| Certifications | UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05 |
|---|---|
| NEMA Enclosure Rating | NEMA 4 die cast zinc alloy standard size |
| Category | US10CP121102 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901554721 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.80 in (9.652 cm) |
| Package 1 Width | 4.80 in (12.192 cm) |
| Package 1 Length | 5.50 in (13.97 cm) |
| Package 1 Weight | 2.941 lb(US) (1.334 kg) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 10.00 in (25.4 cm) |
| Package 2 Width | 12.20 in (30.988 cm) |
| Package 2 Length | 15.20 in (38.608 cm) |
| Package 2 Weight | 36.220 lb(US) (16.429 kg) |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 336 |
| Package 3 Height | 40.00 in (101.6 cm) |
| Package 3 Width | 40.00 in (101.6 cm) |
| Package 3 Length | 48.00 in (121.92 cm) |
| Package 3 Weight | 988.0002 lb(US) (448.149 kg) |
