2510MBO2 - Schneider Electric - 18 Amp 3 Pole 600 V Square D Manual Starter

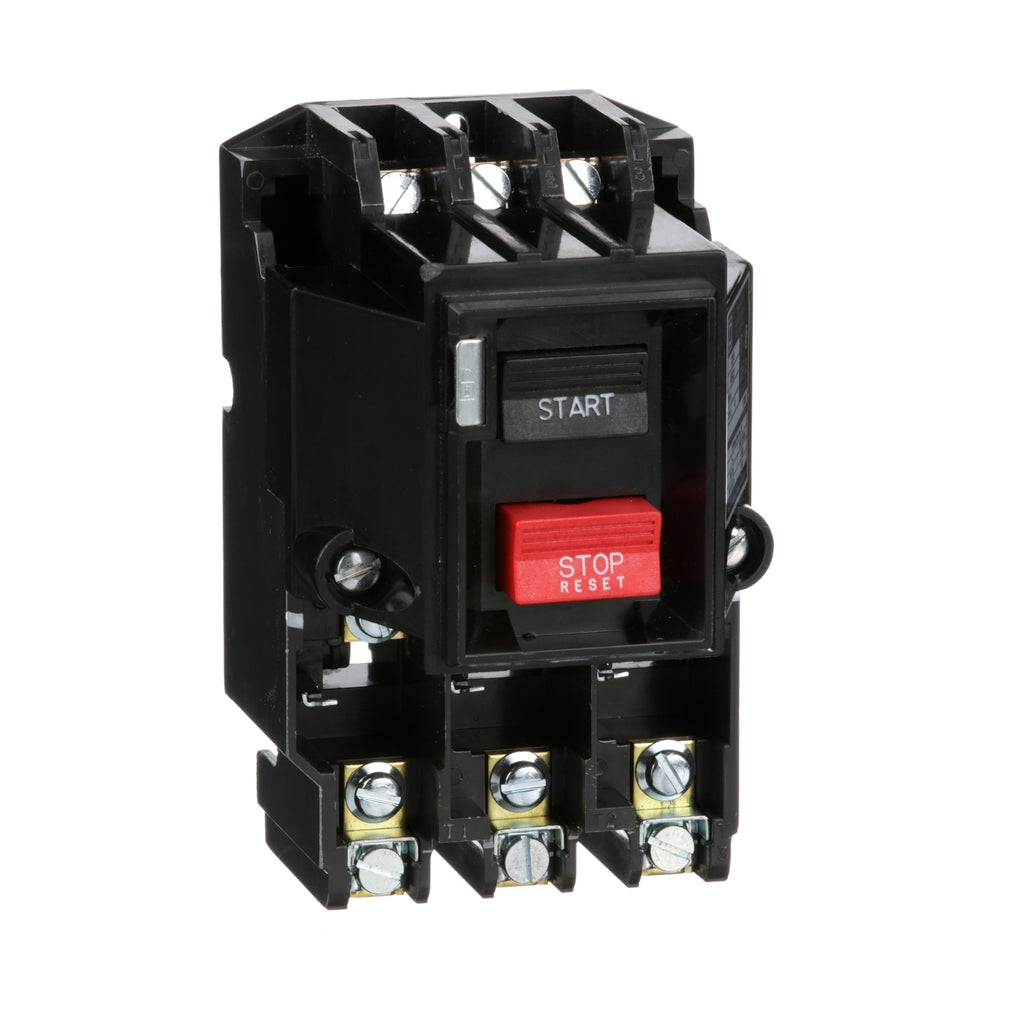

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-0 three pole starter is rated for 3 HP at 200 to 230 VAC and 5 HP at 380 to 575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. The thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. This manual motor starter is not supplied with an enclosure. This manual starter is 5.72 inches tall, 3.50 inches wide and 4.03 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.
GENERAL SPECIFICATIONS
Main
| Product |
Manual Starter |
| Type |
M |
| NEMA Size |
M-0 |
Complementary
| Control Unit |
Push-button |
| Pilot Light |
No indicator |
| Horsepower Rating |
3 hp 200...230 V AC, 3 phase
5 hp 380...575 V AC, 3 phase |
| Voltage Rating |
600 V AC |
| Number of Poles |
3P |
| Starter Type |
Non reversing |
| Electrical Connection |
Pressure wire clamp |
| Overload Relay Type |
Melting alloy |
| Number of Thermal Units Required |
3 |
| Wire Gauge |
AWG 14...AWG 8 copper |
| Auxiliary Contacts |
Without |
| Height |
5.72 in (145.29 mm) |
| Width |
3.5 in (88.9 mm) |
| Depth |
4.03 in (102.36 mm) |
Environment
| Certifications |
UL listed file E42243 CCN NLRV
CSA LR60905 class 3211 05 |
| NEMA Enclosure Rating |
Not rated (open device) |
Ordering and shipping details
| Category |
US10CP121103 |
| Discount Schedule |
0CP1 |
| GTIN |
785901792833 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
6.300 in (16.002 cm) |
| Package 1 Width |
5.000 in (12.700 cm) |
| Package 1 Length |
8.800 in (22.352 cm) |
| Package weight(Lbs) |
35.199 oz (997.902 g) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
84 |
| Package 2 Height |
40.000 in (101.600 cm) |
| Package 2 Width |
40.000 in (101.600 cm) |
| Package 2 Length |
48.000 in (121.920 cm) |
| Package 2 Weight |
187.999 lb(US) (85.275 kg) |
