2510MCG3 - Schneider Electric - 600 Volt Square D Electric Manual Starter

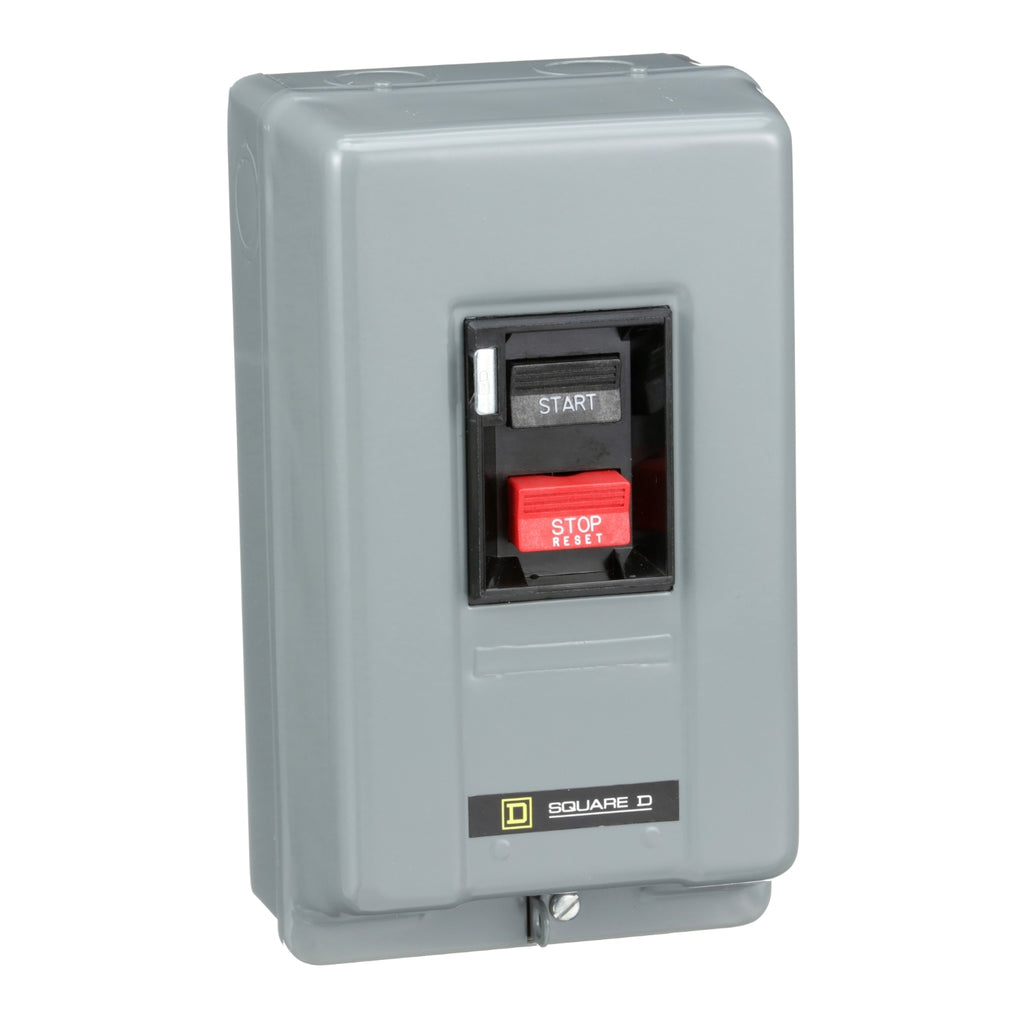

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-1 three pole starter is rated for 7.5 HP at 200-230 VAC and 10 HP at 380-575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. These thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 1 general purpose surface mount enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 8.63 inches tall, 5.00 inches wide and 4.13 inches deep. This device weighs 4.21 lbs. 2510M integral horsepower starters are UL listed and CSA certified.
GENERAL SPECIFICATIONS
Main
| Product |
Manual Starter |
| Type |
M |
| NEMA Size |
M-1 |
Complementary
| Control Unit |
Push-button |
| Pilot Light |
No indicator |
| Horsepower Rating |
7.5 hp 200...230 V AC, 3 phase
10 hp 380...575 V AC, 3 phase |
| Voltage Rating |
600 V AC |
| Number of Poles |
3P |
| Starter Type |
Non reversing |
| Electrical Connection |
Pressure wire clamp |
| Overload Relay Type |
Melting alloy |
| Number of Thermal Units Required |
3 |
| Wire Gauge |
AWG 14...AWG 8 copper |
| Auxiliary Contacts |
Without |
| Height |
8.63 in (219.20 mm) |
| Width |
5 in (127.0000000000 mm) |
| Depth |
4.13 in (104.90 mm) |
| Net Weight |
4.21 lb(US) (1.91 kg) |
Environment
| Certifications |
CSA LR60905 class 3211 05
UL listed file E42243 CCN NLRV |
| NEMA Enclosure Rating |
NEMA 1 painted sheet steel |
Ordering and shipping details
| Category |
US10CP121103 |
| Discount Schedule |
0CP1 |
| GTIN |
785901792109 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
4.80 in (12.192 cm) |
| Package 1 Width |
5.80 in (14.732 cm) |
| Package 1 Length |
9.10 in (23.114 cm) |
| Package 1 Weight |
4.109 lb(US) (1.864 kg) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
126 |
| Package 2 Height |
40.00 in (101.600 cm) |
| Package 2 Width |
40.00 in (101.600 cm) |
| Package 2 Length |
48.00 in (121.920 cm) |
| Package 2 Weight |
535.999 lb(US) (243.125 kg) |
PRODUCT DATASHEET
Schneider_Electric_Type-M-T-Integral-Horsepower-Starters_2510MCG3
