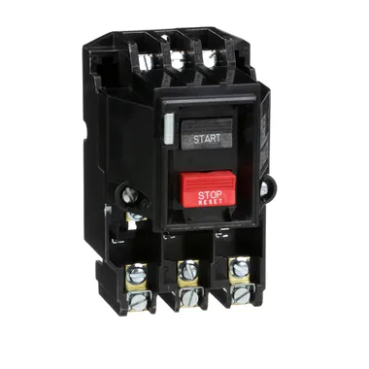

2510MCO3 - Schneider Electric - 36 Amp 3 Pole 600 V Square D Manual Starter
2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-1 three pole starter is rated for 7.5 HP at 200-230 VAC and 10 HP at 380-575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. These thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. This manual motor starter is not supplied with an enclosure. This manual starter is 5.72 inches tall, 3.50 inches wide and 4.03 inches deep. This device weighs 2.20 lbs. 2510M integral horsepower starters are UL listed and CSA certified.
GENERAL SPECIFICATIONS
| Product | Manual Starter |
|---|---|
| Type | M |
| NEMA Size | M-1 |
| Control Unit | Push-button |
|---|---|
| Pilot Light | No indicator |
| Horsepower Rating | 7.5 hp 200...230 V AC, 3 phase 10 hp 380...575 V AC, 3 phase |
| Voltage Rating | 600 V AC |
| Number of Poles | 3P |
| Starter Type | Non reversing |
| Electrical Connection | Pressure wire clamp |
| Overload Relay Type | Melting alloy |
| Number of Thermal Units Required | 3 |
| Wire Gauge | AWG 14...AWG 8 copper |
| Auxiliary Contacts | Without |
| Height | 5.72 in (145.29 mm) |
| Width | 3.5 in (88.9 mm) |
| Depth | 4.03 in (102.36 mm) |
| Net Weight | 2.20 lb(US) (1.00 kg) |
| Certifications | CSA LR60905 class 3211 05 UL listed file E42243 CCN NLRV |
|---|---|
| NEMA Enclosure Rating | Not rated (open device) |
| Category | US10CP121103 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901792208 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.50 in (16.510 cm) |
| Package 1 Width | 5.00 in (12.700 cm) |
| Package 1 Length | 8.80 in (22.352 cm) |
| Package 1 Weight | 35.199 oz (997.902 g) |
PRODUCT DATASHEET
Schneider Electric_Type-M-T-Integral-Horsepower-Starters_2510MCO3
