Description

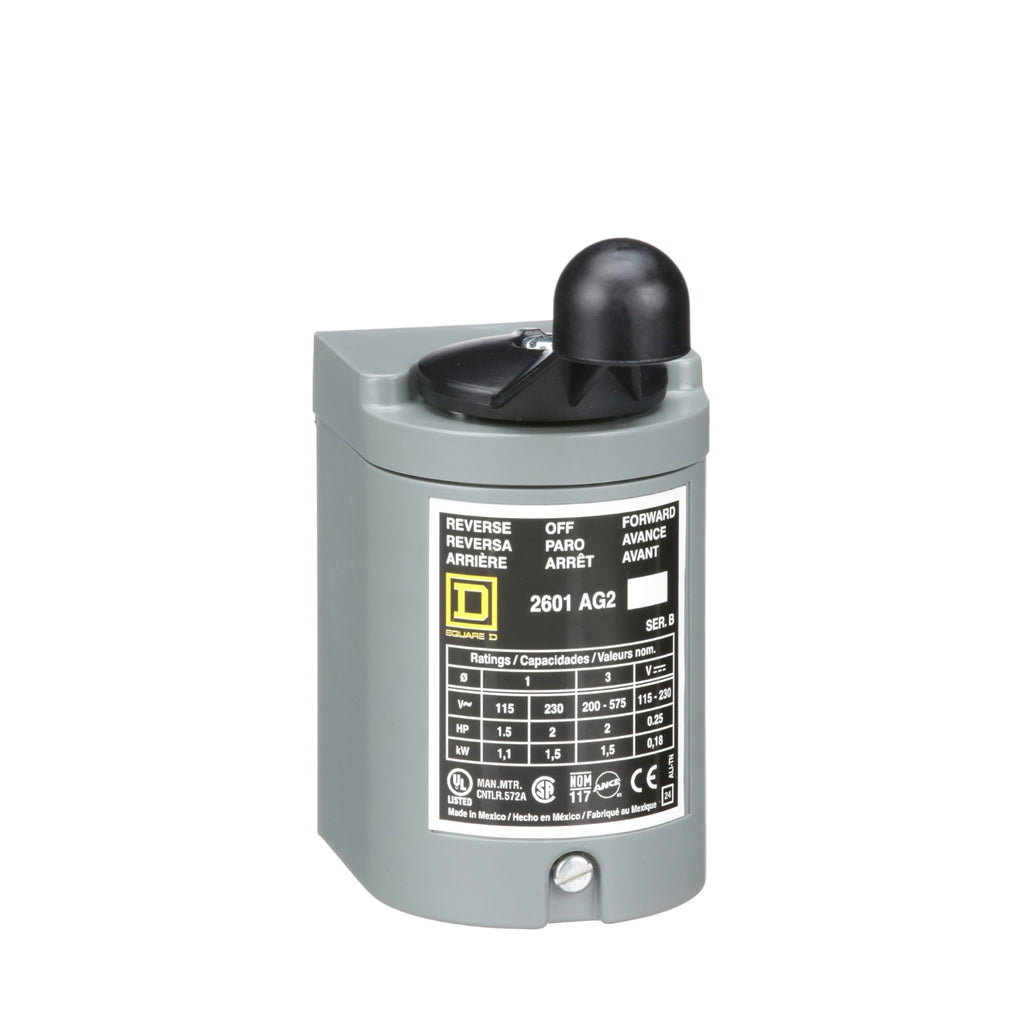

2601AG2 - Schneider Electric - Square D Reversing Drum Switch 2 HP at 230 VAC Single Phase 2 HP at 575 VAC Polyphase Handle Operated NEMA 1 Enclosure
2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. This device has a NEMA 1 general purpose enclosure. Drum switches are UL listed and CSA certified for global applications.
GENERAL SPECIFICATIONS
| Product | Reversing Drum Switch |
|---|---|
| Enclosure Rating | NEMA 1 |
| Horsepower | 1.5 hp 115 V AC, 1 phase 2 hp 230 V AC, 1 phase 2 hp 200 V AC, 3 phase 2 hp 230 V AC, 3 phase 2 hp 460 V AC, 3 phase 2 hp 575 V AC, 3 phase 0.25 hp 115 V DC 0.25 hp 230 V DC |
| Maximum Rated Voltage | 600 V AC 250 V DC |
| Number of Poles | 3P |
| Certifications | UL Listed CSA |
|---|---|
| Electrical Connection | Screw-clamp terminals |
| Type | A |
| Width | 2.68 in (68.07 mm) |
| Height | 5.38 in (136.65 mm) |
| Depth | 4.61 in (117.09 mm) |
| Product weight | 1.34 lb(US) (0.61 kg) |
| Category | US10CP121116 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901555414 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.7 in (11.9 cm) |
| Package 1 Width | 5.6 in (14.2 cm) |
| Package 1 Length | 7.008 in (17.8 cm) |
| Package 1 Weight | 20.0 oz (567.0 g) |
