Description

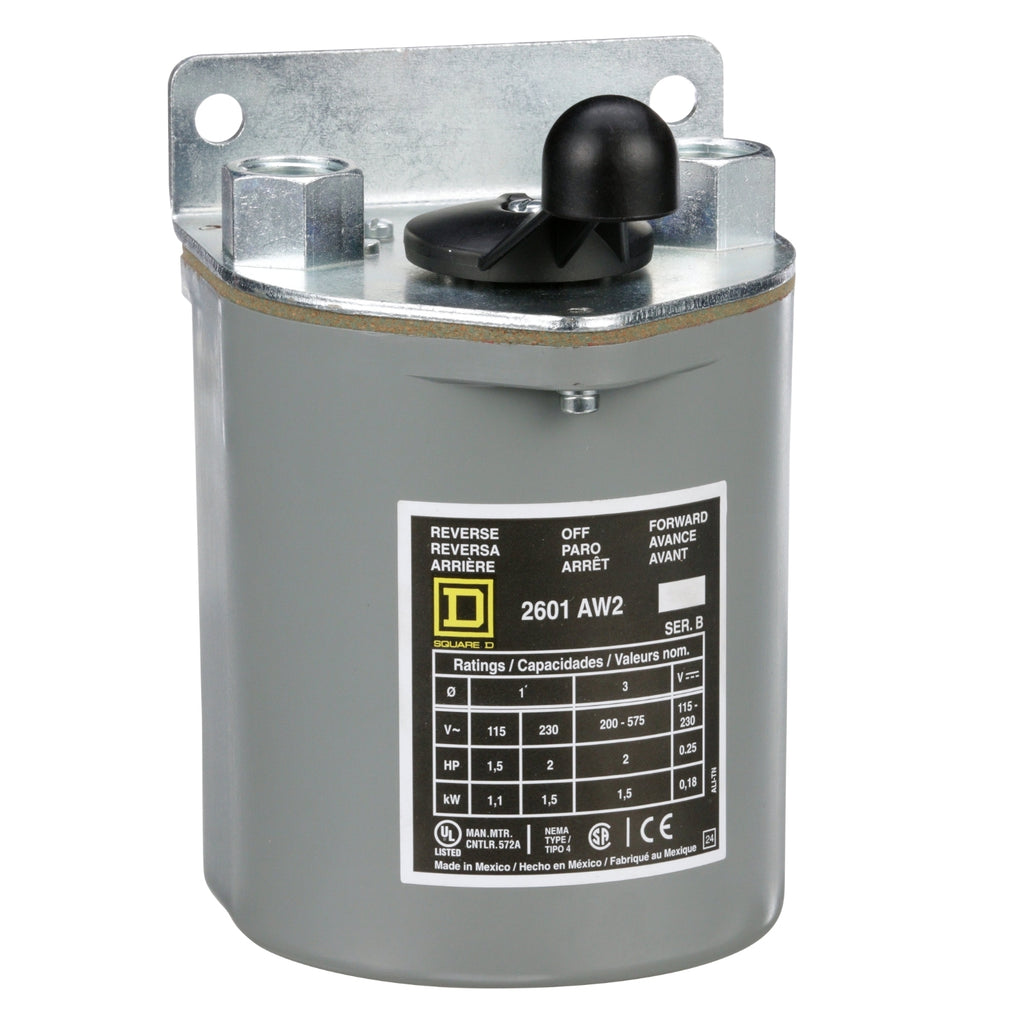

2601AW2 - Schneider Electric - Square D Reversing Drum Switch 2 HP at 230 VAC Single Phase 2 HP at 575 VAC Polyphase Handle Operated NEMA 1 Enclosure
2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. This device has a NEMA 4 watertight enclosure. Drum switches are UL listed and CSA certified for global applications.
GENERAL SPECIFICATIONS
| Product | Reversing Drum Switch |
|---|---|
| Enclosure Rating | NEMA 4 |
| Horsepower | 1.5 hp 115 V AC, 1 phase 2 hp 230 V AC, 1 phase 2 hp 200 V AC, 3 phase 2 hp 230 V AC, 3 phase 2 hp 460 V AC, 3 phase 2 hp 575 V AC, 3 phase 0.25 hp 115 V DC 0.25 hp 230 V DC |
| Maximum Rated Voltage | 600 V AC 250 V DC |
| Number of Poles | 3P |
| Certifications | CSA UL Listed |
|---|---|
| Electrical Connection | Screw-clamp terminals |
| Type | A |
| Category | US10CP121116 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901784432 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.60 in (11.684 cm) |
| Package 1 Width | 5.60 in (14.224 cm) |
| Package 1 Length | 7.90 in (20.066 cm) |
| Package 1 Weight | 2.650 lb(US) (1.202 kg) |
