Description

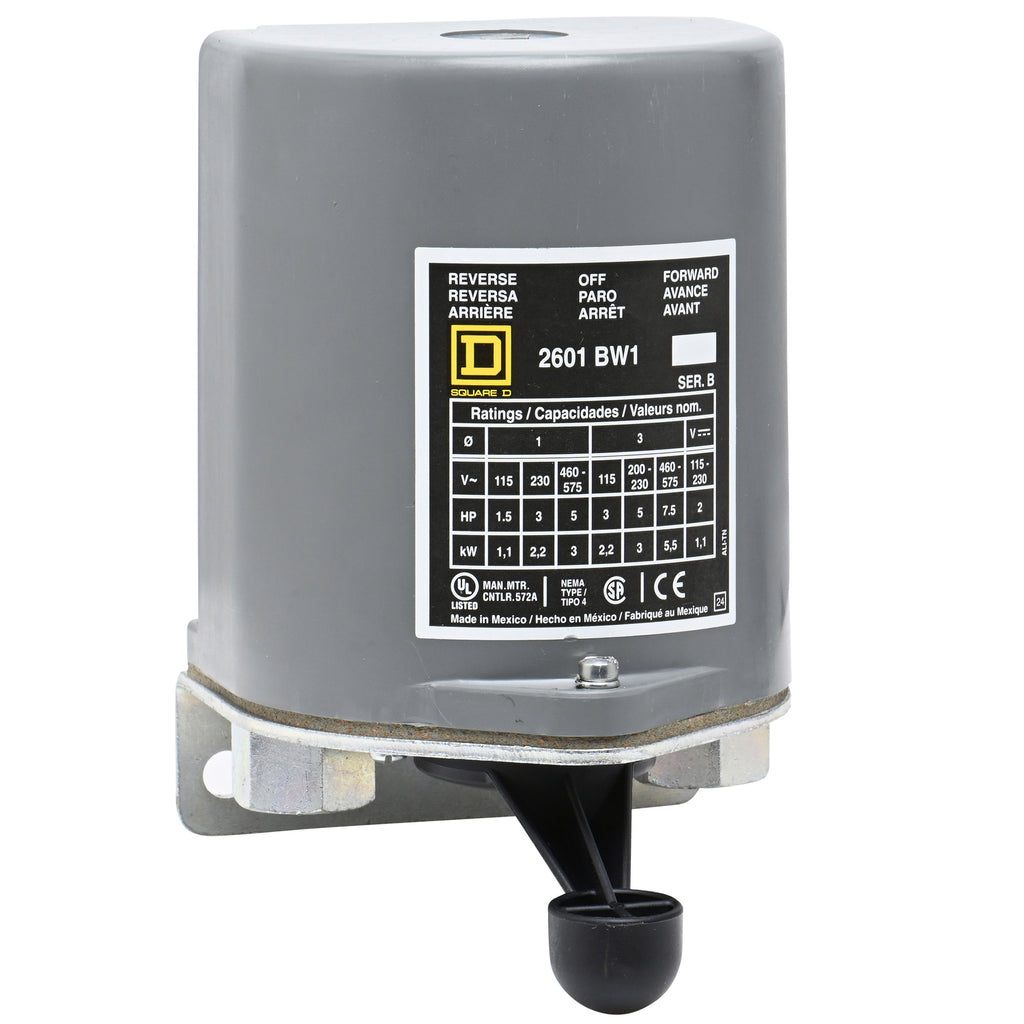

2601BW1 - Schneider Electric - Square D Reversing Drum Switch 2 HP at 230 VAC Single Phase 2 HP at 575 VAC Polyphase Handle Operated NEMA 1 Enclosure
2601 reversing drum switches are designed to starting and reversing motors by connecting them directly across the line. The devices can be used with squirrel cage and single-phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. A NEMA 4 watertight and dusttight enclosure is used to protect this switch. Enclosure is 6.89 inches tall, 4.40 inches wide and 5.50 inches deep. Drum switches are UL listed and CSA certified.
GENERAL SPECIFICATIONS
| Product | Reversing Drum Switch |
|---|---|
| Enclosure Rating | NEMA 4 |
| Horsepower | 1.5 hp 115 V AC, 1 phase 3 hp 230 V AC, 1 phase 5 hp 460 V AC, 1 phase 5 hp 575 V AC, 1 phase 5 hp 200 V AC, 3 phase 5 hp 230 V AC, 3 phase 7.5 hp 460 V AC, 3 phase 7.5 hp 575 V AC, 3 phase 2 hp 115 V DC 2 hp 230 V DC |
| Maximum Rated Voltage | 600 V AC 250 V DC |
| Number of Poles | 3P |
| Certifications | CSA UL Listed |
|---|---|
| Electrical Connection | Screw-clamp terminals |
| Type | B |
| Width | 4.40 in (111.76 mm) |
| Height | 6.89 in (175.006 mm) |
| Depth | 5.50 in (139.70 mm) |
| Category | US10CP121116 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901784449 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package | 1 |
| Package 1 Height | 4.800 in (12.192 cm) |
| Package 1 Width | 5.00 in (12.7 cm) |
| Package 1 Length | 8.00 in (20.32 cm) |
| Package 1 Weight | 3.530 lb(US) (1.601 kg) |
PRODUCT DATASHEET
